Hard boiled candy making machine hard candy production line with low price
Product Description

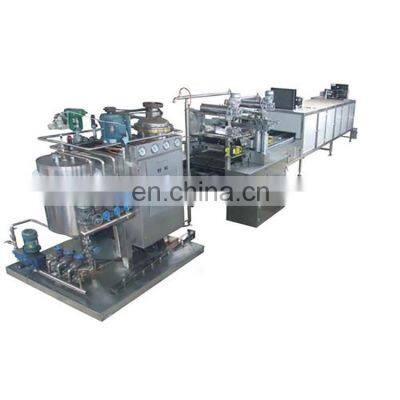

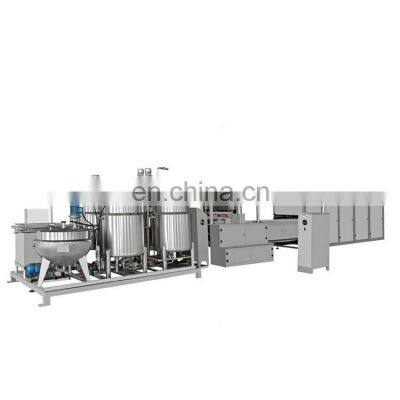

1. Introduction of the whole production line:
The hard candy production line consists of an electric sugar pot, a cooling table, a heat preservation roller, a drawing machine,
a forming machine, a cooling screen and a packaging machine, which can produce round and oval hard candy.The whole production line
of electrical integrated control, easy to control the operation, is small and medium-sized
Ideal equipment for a candy factory.
2. Main technical parameters:
Production: 150-500 kg/h
Whole line power: 5.4KW
Full line size :6690*700*1400 mm
3. Main production process:
Boil sugar → cool it → roll sugar → pull the jelly into a sugar bar → punch the sugar bar into a round or oval hard candy → cool it → package the finished product
The hard candy production line consists of an electric sugar pot, a cooling table, a heat preservation roller, a drawing machine,
a forming machine, a cooling screen and a packaging machine, which can produce round and oval hard candy.The whole production line
of electrical integrated control, easy to control the operation, is small and medium-sized
Ideal equipment for a candy factory.
2. Main technical parameters:
Production: 150-500 kg/h
Whole line power: 5.4KW
Full line size :6690*700*1400 mm
3. Main production process:
Boil sugar → cool it → roll sugar → pull the jelly into a sugar bar → punch the sugar bar into a round or oval hard candy → cool it → package the finished product
Model |
Orange-150 |
Orange-300 |
Orange-450 |
Orange-600 |
standard production volume(kg/hour) |
150 |
300 |
450 |
600 |
The sugar levels |
2-6g |
2-6g |
2-6g |
2-6g |
pouring rate |
45-55n/min |
45-55n/min |
45-55n/min |
45-55n/min |
Steam demand |
0.2m³/min,
0.4-0.6Mpa
|
0.2m³/min,
0.4-0.6Mpa
|
0.2m³/min,
0.4-0.6Mpa
|
0.2m³/min,
0.4-0.6Mpa
|
Work environment requirements |
Temperature:20-25℃
humidity :55%
|
Temperature:20-25℃
humidity :55%
|
Temperature:20-25℃
humidity :55%
|
Temperature:20-25℃
humidity :55%
|
Total Power |
18kw/380V |
27kw/380V |
34kw/380V |
38kw/380V |
Overall length |
15m |
17m |
17m |
20m |
Overall weight |
3500kg |
4000kg |
4500kg |
5000kg |

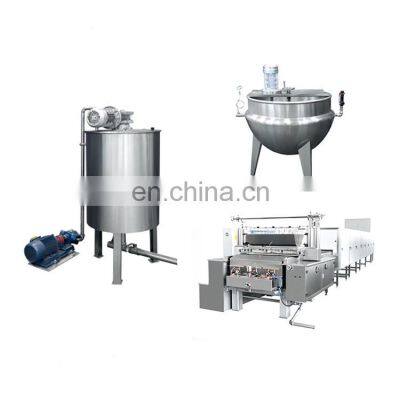

Specification
Volume: 150LWorking pressure: 0.32Mpa
It can dissolve raw matericals and form a basis for the continuous production.
It can dissolve raw matericals and form a basis for the continuous production.
Storage tank total volume: 200L,Equip with syrup filter net,SUS304 outlet pipe
Depositing unit
1.Automatic cleaning system ,easy cleaning.2.Automatic oil spraying system, easy demoulding .
3.Color and flavor adding system .
4.The deositing hopper can be make two parts
1.Automatic cleaning system ,easy cleaning.2.Automatic oil spraying system, easy demoulding .
3.Color and flavor adding system .
4.The deositing hopper can be make two parts
moulds made of Aluminum alloy,Outside coated with Teflon
candy shape and size can be designed
Machine made of SUS304 material (except transmission shaft, cam, chain, gears and related standard configuration parts)
Why Choose Us
Company Profile
Packing & Delivery
1.We can load container at: Qingdao,shanghai, Ningbo, Tianjin, Guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept order: Full container cargo load,Less container load
4.Our service: EXW, FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept order: Full container cargo load,Less container load
4.Our service: EXW, FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
