hot sale Automatic Jaggery Sugar Cubes Making Machine Price Cube Sugar Production Line

The brown sugar candy block is produced by mixing brown sugar with appropriate crystal size and particle size, and mixing with a small amount of refined sugar concentrated solution (or clean water) to form a wet sugar having a water content of 1.5 to 2.5%, and then forming a semi-square shape by a molding machine. Dry to a moisture content of 0.5% or less by a dryer, and package after cooling.

Technical Parameters

1.Mixed spiral feeding machine

Function: mixing, automatic feeding

efficiency: 1-3M3/H,infinite speed variation

Motor power: 3.85KW

Discharge port from the ground:1700mm

Gross weight:140KG

Outline Air Consumption(L×W×H,MM):500*500*1650mm

Outline Air Consumption(L×W×H,MM):520*520*900mm

Cubage:1.81

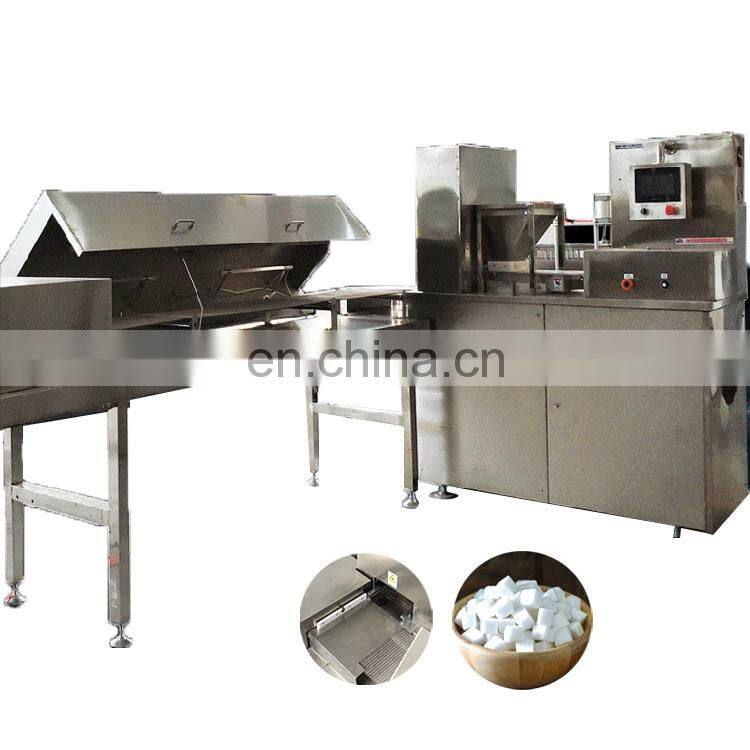

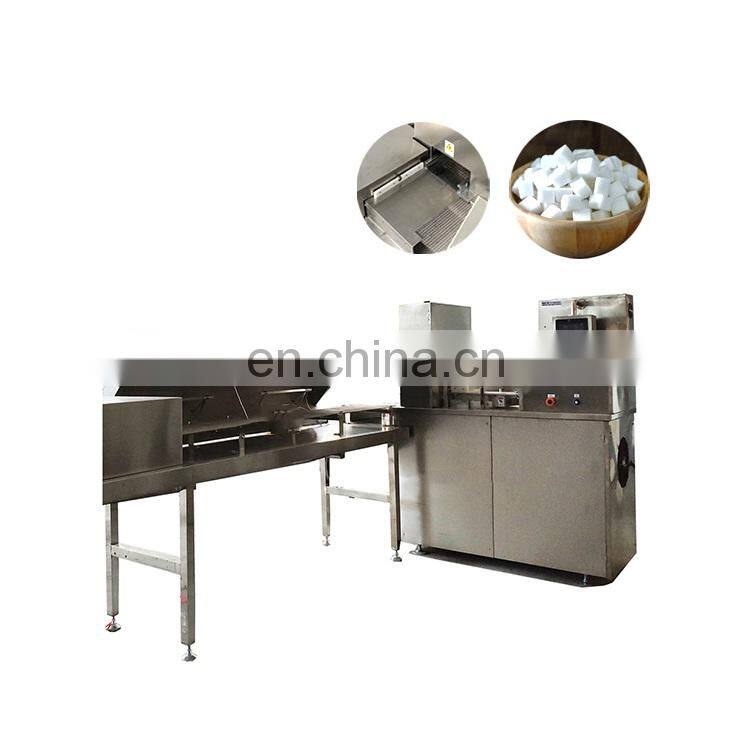

2.cube sugar machine

Features :PLC control, man-machine interface

Production capacity :60-120KG/H

Motor power : 3 kw 380/50HZ

Outline Air Consumption(L×W×H,MM): 1800×750×1750

Gross weight:  800KG

Candy size: 20 * 20*X MM

Cubage:2.36

3Tablet linkage conveyor

Features: linkage, transmission

Efficiency:0-10cubage/min

Air Pressure: 0.3 Mpa-0.5 Mpa

Outline Air Consumption(L×W×H,MM):1300*700*1000

Gross weight:60KG

Cubage:0.91

4.The infrared drying oven

Efficiency:0-10M/M/min

Outline Air Consumption(L×W×H,MM):1900*700*1150

 Gross weight:90KG*3

Power: AC380V50HZ 2KW *3

Cubage:4

5.Cooler machine

Function: Cooling

Efficiency:0-10M/M/min

Dimensions:1900*700*700MM

Gross weight :60KG

Cubage:0.93

6.Semi-automatic vacuum filling machine

Efficiency:infinite speed variation

Suction:3N

Outline Air Consumption(L×W×H,MM):500*750*1350MM

Gross weight:70KG

Cubage:0.506
