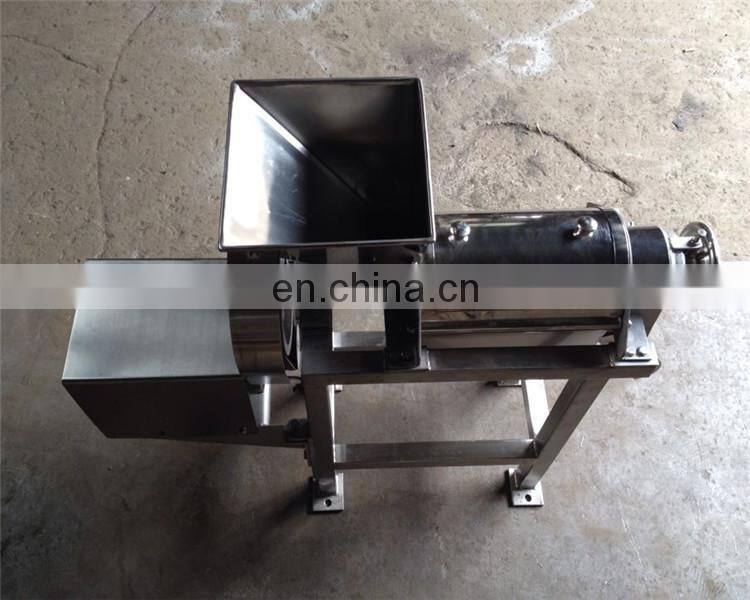

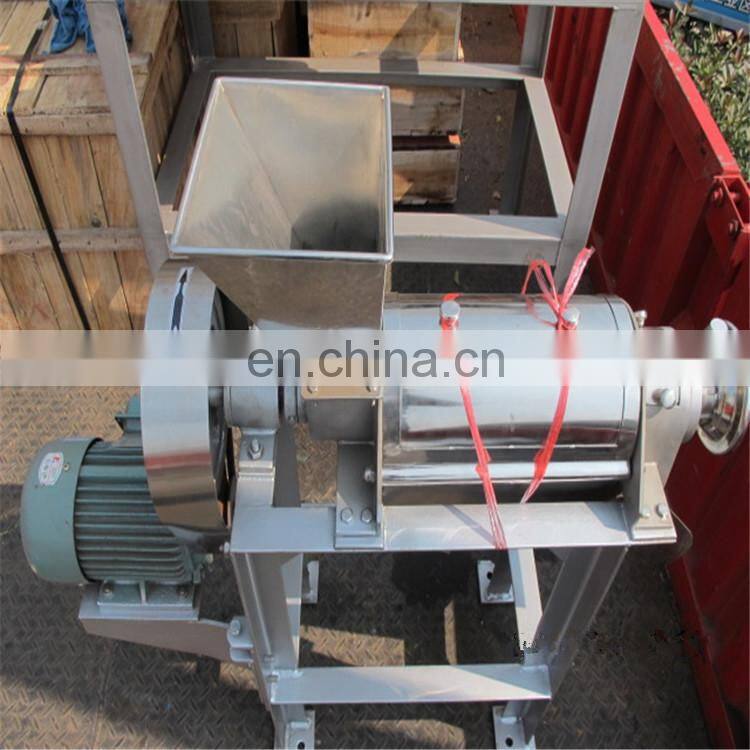

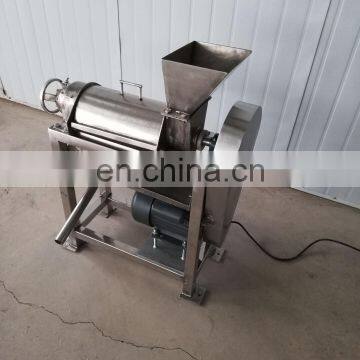

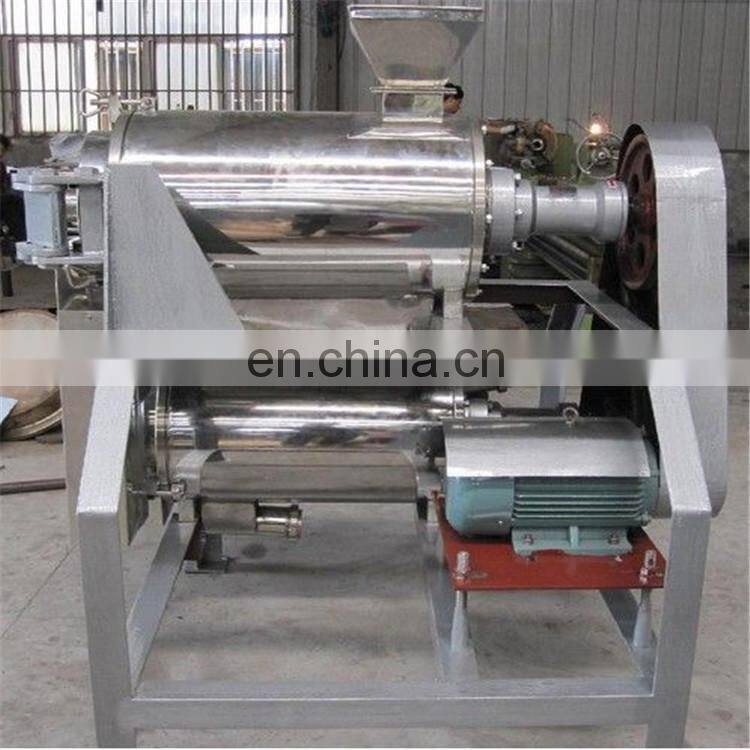

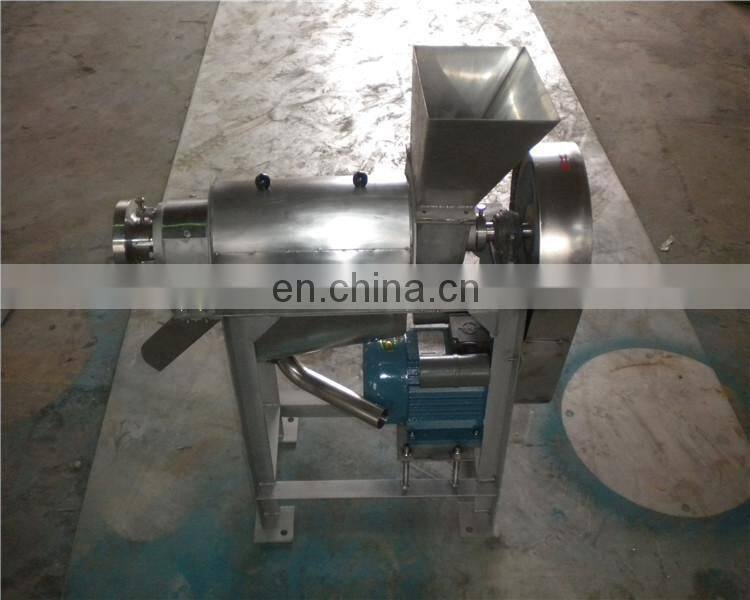

Good quality fresh beverage fruit juice processing machinery Apple / orange / pear / mango / radish / cabbage / cucumber / ginger / garlic
introduction of orange juice machine :
This machine uses high quality 304 stainless steel material, can be fruit juice and vegetable juice press work, with high efficiency, low energy consumption, the advantages of high juice rate. The products that can be processed are as follows:
Vegetable :tomatoes,carrot,white turnip, sweet potato,potato,ginger,Chinese Cabbage,
green pepper, chili, bitter gourd, cucumber, etc.
Fruits like: apple and pineapple, pears, orange, grape, strawberry,etc.
Features of orange juice machine :
1.This is a kind of spiral advancing extrusion.
2.There are whole stainless steel and inner stainless steel type.
3. It can make vegetable and fruit juice.
4.One outlet juice,one outlet fruit&vegetable pulp.
5.Processing material is vegetable&fruit which is crushed into not more than 2*2cm size.

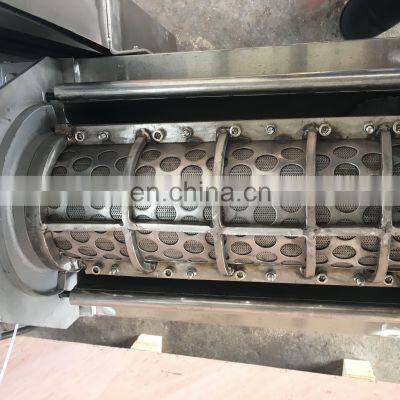

6.We can supply you with different Filter screens according to your needs on the hole
Diameter.
Technical parameters of orange juice machine :
| Model | OR-0.5T | OR-1.0T | OR-1.5T | OR-2.5T |
| Capacity | 500kg/h | 1000kg/h | 1500kg/h | 2500kg/h |
| Screw diameter | 87.5mm | 120mm | 175mm | 200mm |
| Filter screen aperture | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| Power | 1.5kw | 2.2kw | 4kw | 11kw |
| Voltage | 220v | 220v | 380v | 380v |
| Weight | 105kg | 175kg | 250kg | 480kg |

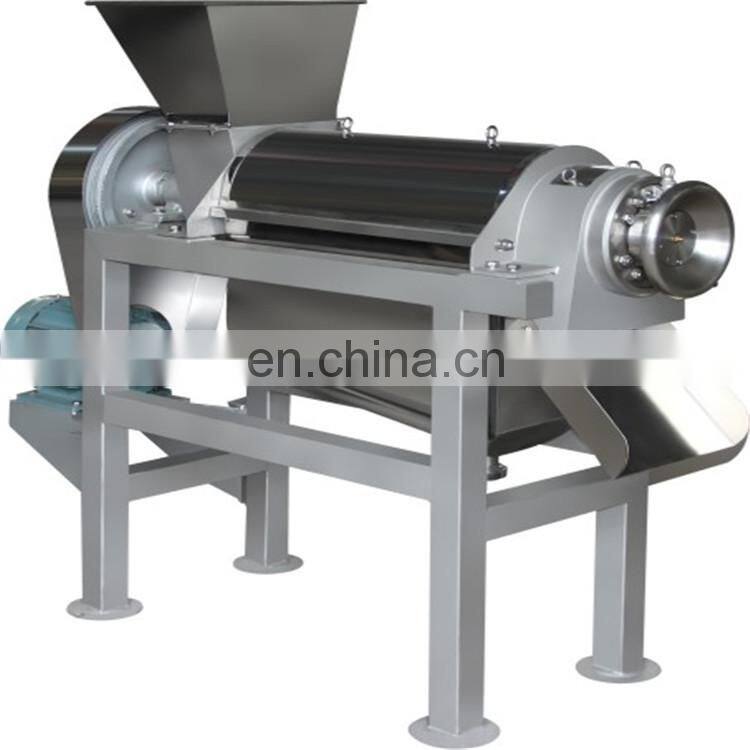

Product drawings of orange juice machine :
1,Feed hopper 2,frame 3,Rods 4,Front bearing 5,Motor 6,Transmission system 7,Bearing seat 8,Spindle 9,spiral 10,Filter 11,Juice barrels 12,Rear support 13,Adjust the pressure head 14,Slag slag 15,Hold the seat 16,Handwheel housing 17,Brake pin
Packaging & shipping of orange juice machine :
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport.
3.Can accept oder:Full container cargo load,Less container load .
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to ensure you receive the goods on time.
6.The tracking number will be provided to you once the consignment is shipped.
