150m portable diesel hydraulic water well drilling rig
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
diesel hydraulic borehole well drilling water drilling machine
-
portable diesel water well drilling rig / geological water well drilling rig
-
small hydraulic water well drill rig/water well drilling rig machine for sale
-
drilling machine soil digging machinery construction equipment for sale
-
portable diesel hydraulic tractor mounted water well drilling rigs price
-
diesel water well drilling equipment/borehole drilling equipment for sale
Product Description
Product Description

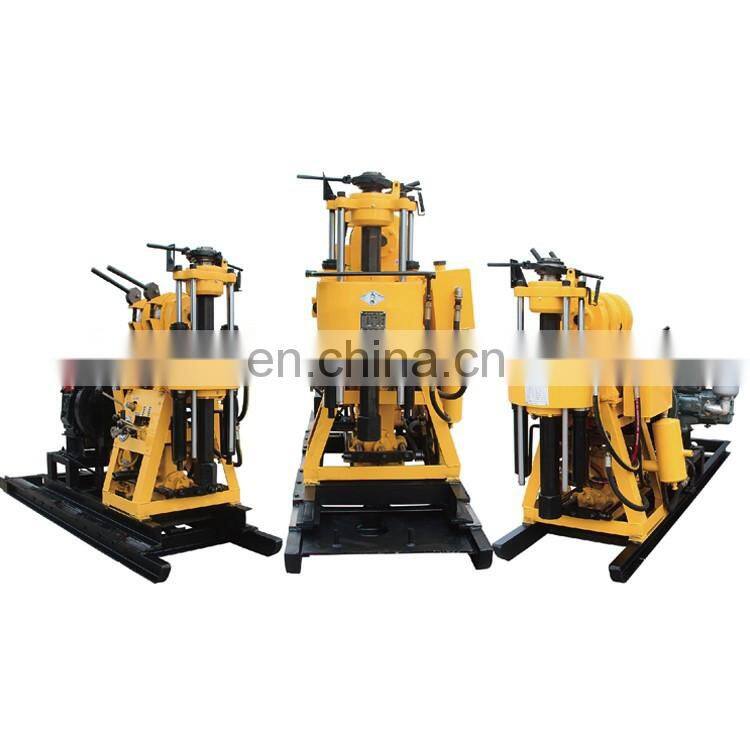

130 YY water well drilling rig/water well drilling machine
A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy
operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the
winch.

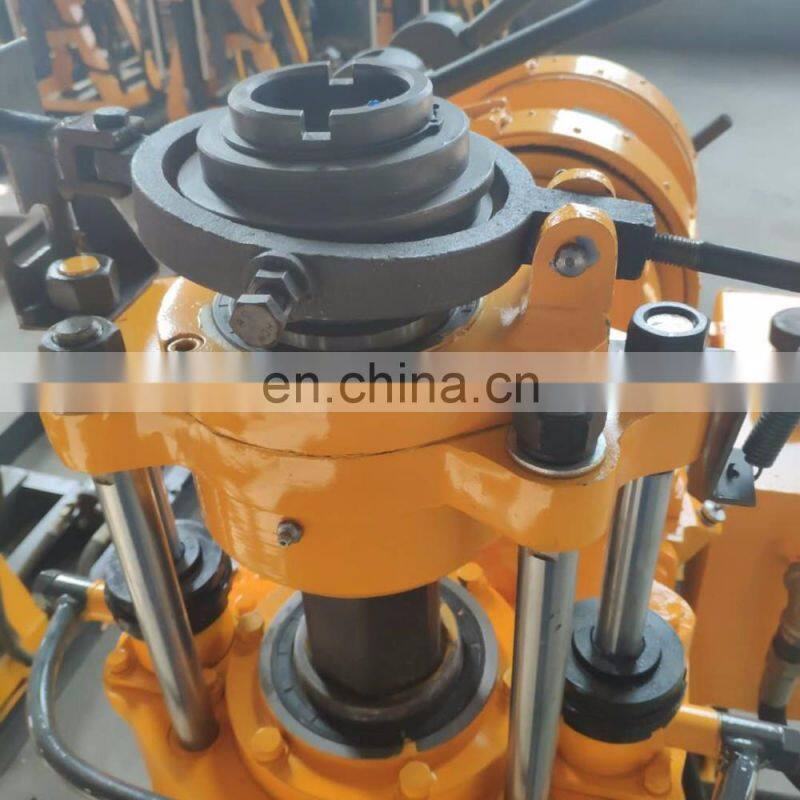

C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and
other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine
compact,moblie and lightweight.
the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy
operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the
winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and
other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine
compact,moblie and lightweight.
Model | HZ-130YY |
Drilling depth | 130m |
Open hole diamter | 220mm |
Final hole diameter | 75mm |
Drilling rod diamter | 42-60mm |
Drilling angle | 90-75° |
Maching power | 20hp/13.2Kw |
Weight | 650kg |
Machine dimension | 2400*700*1400mm |
Speed | 142/285/570r/min |
Stroke | 450mm |
Max pull force | 0.41-1.64m/min |
Rope diameter | Φ9.3mm |
Roll capacity | 27Ton |
Rated load | 2ton |
Height | 6m |
Video
Related Products

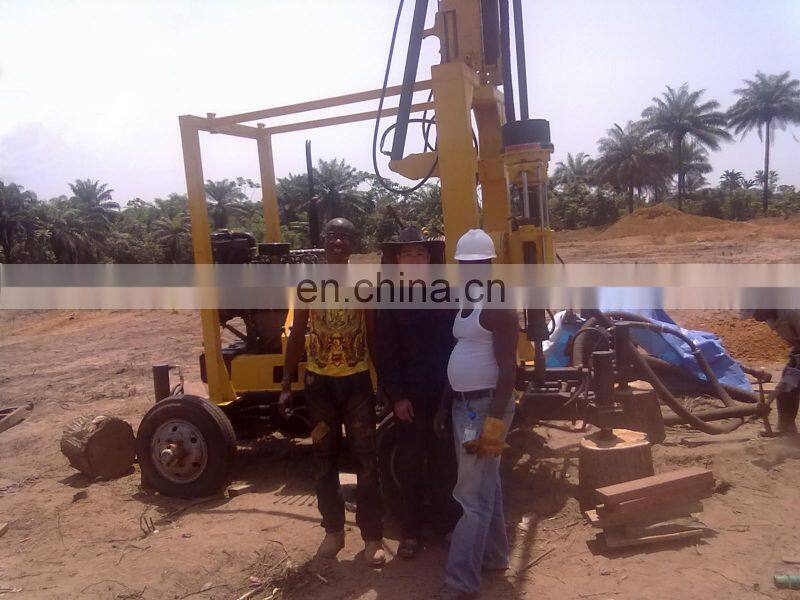

Our customers
