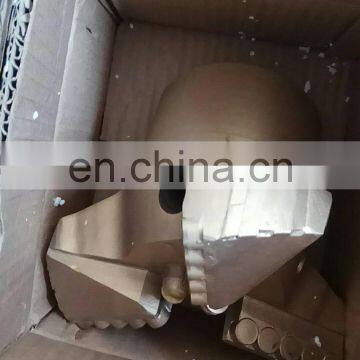

Three Wings PDC Drag Bit for Mining and Water Well Drilling photo-2

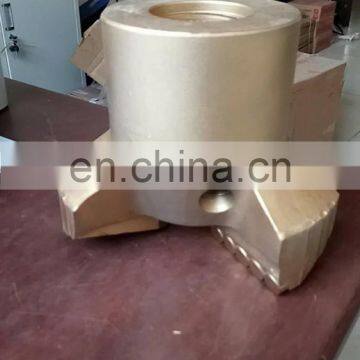

Three Wings PDC Drag Bit for Mining and Water Well Drilling photo-3

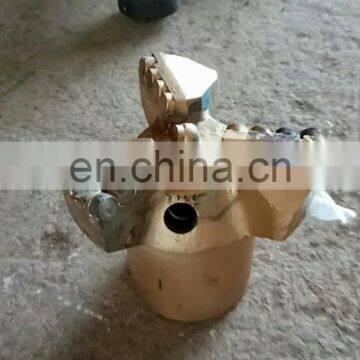

Three Wings PDC Drag Bit for Mining and Water Well Drilling photo-4

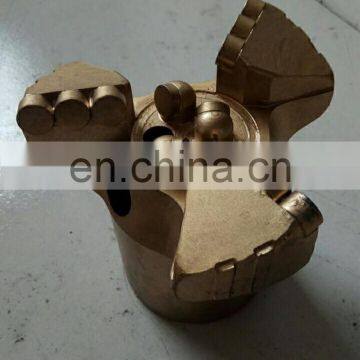

Three Wings PDC Drag Bit for Mining and Water Well Drilling photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Luohe Orange Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Introduction:

PDC bit can be widely used in the fields of geological exploration, coal mining, water conservancy and hydropower, construction of road and railway.
We also can design PDC bits according to customer requirements, such as different geological condition, special strata and so on.

Specification:

Product: PDC drag bits
Size: 60mm - 660mm
Wings: 3 wings, 4 wings, 5 wings, 6 wings
Condition: Brand new PDC cutter drag bit
Drilling formation: Soft to hard rock formation
Application: Water well, oil well, ore well drilling
Connection: API reg pin/ box thread
Gauge protection: with Color: Blue, Golden, Silvery

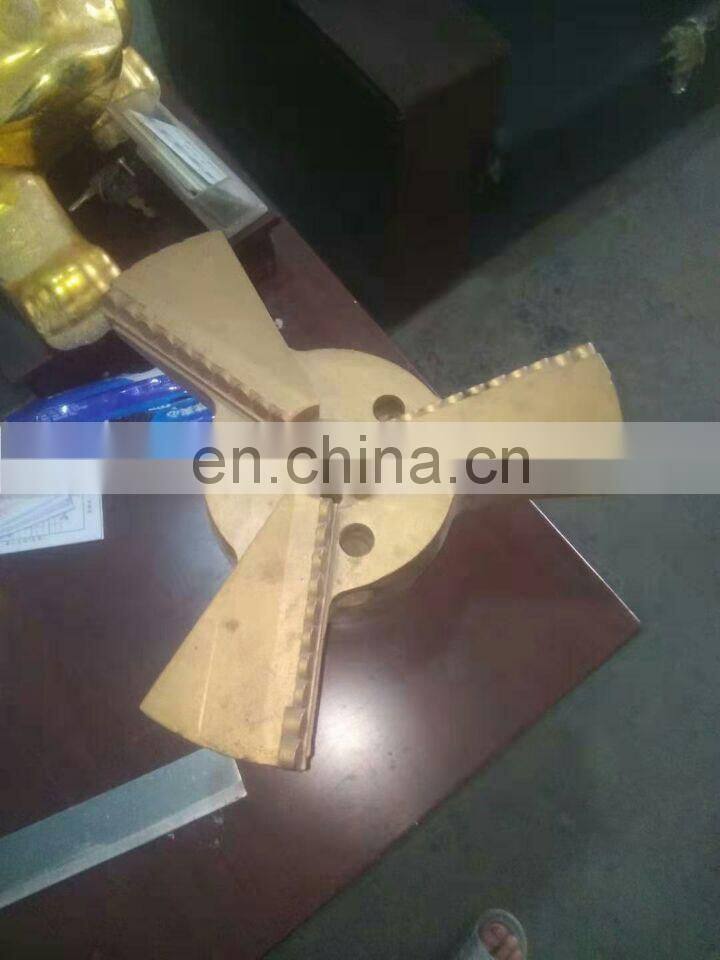

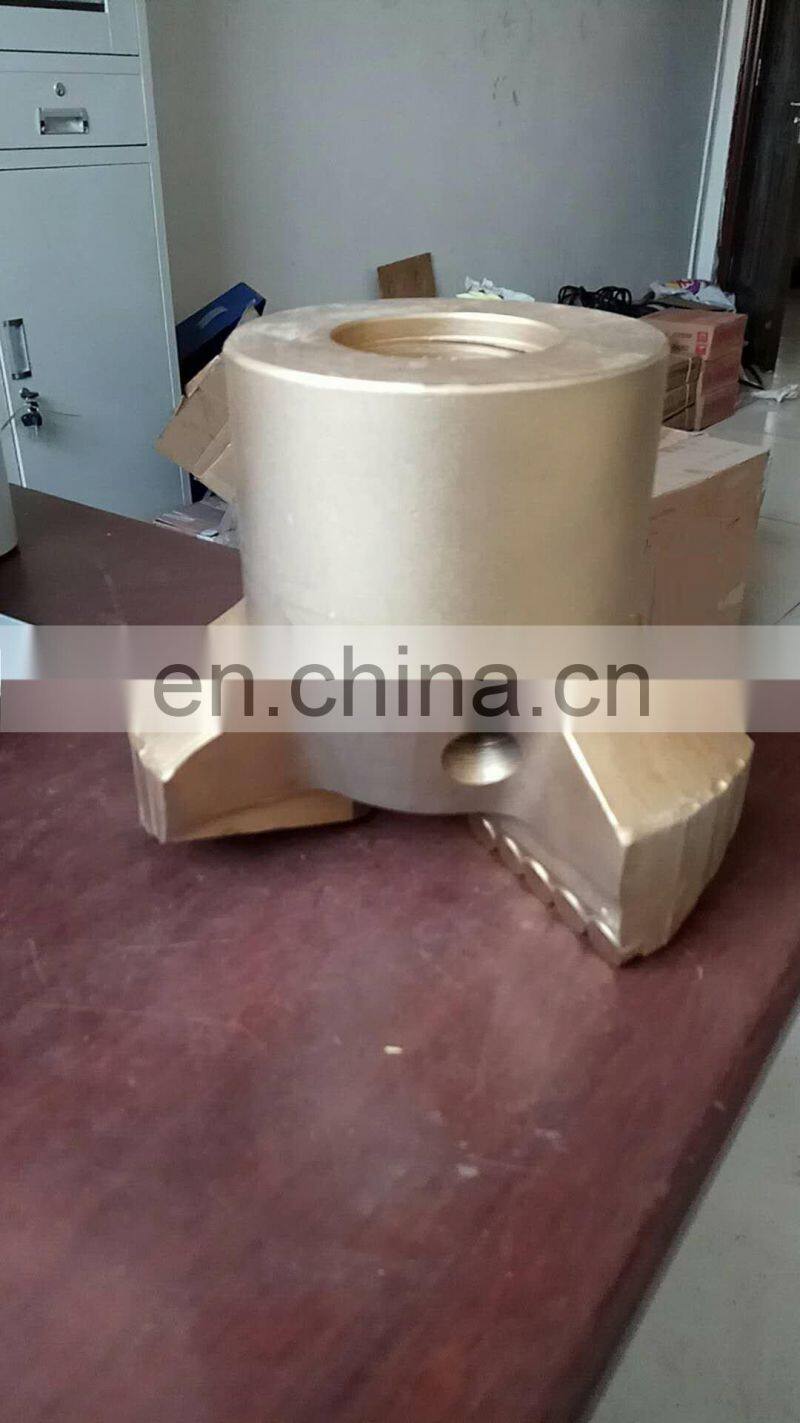

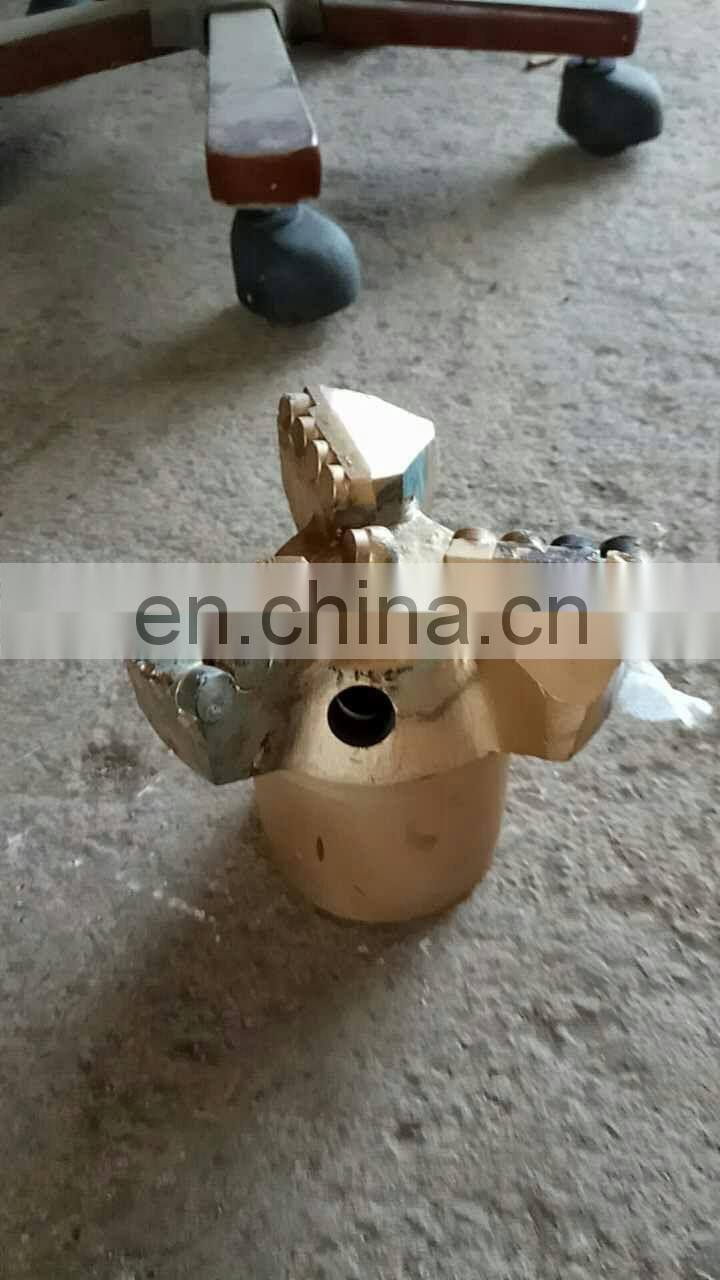

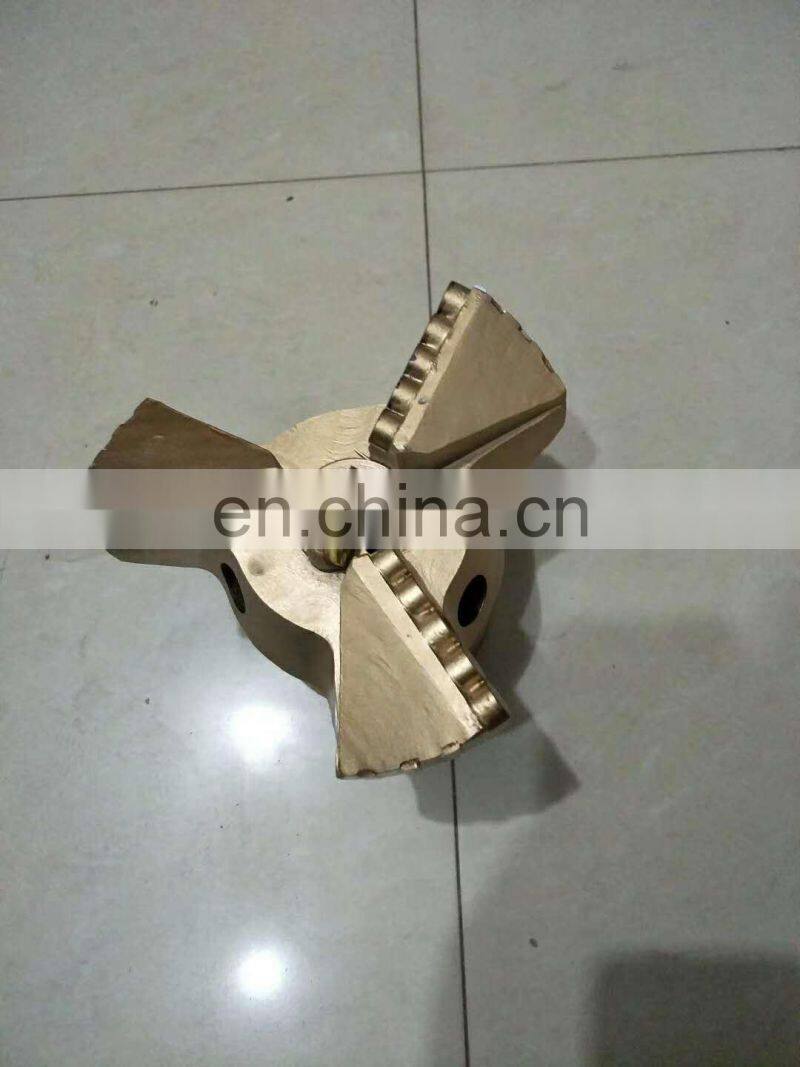

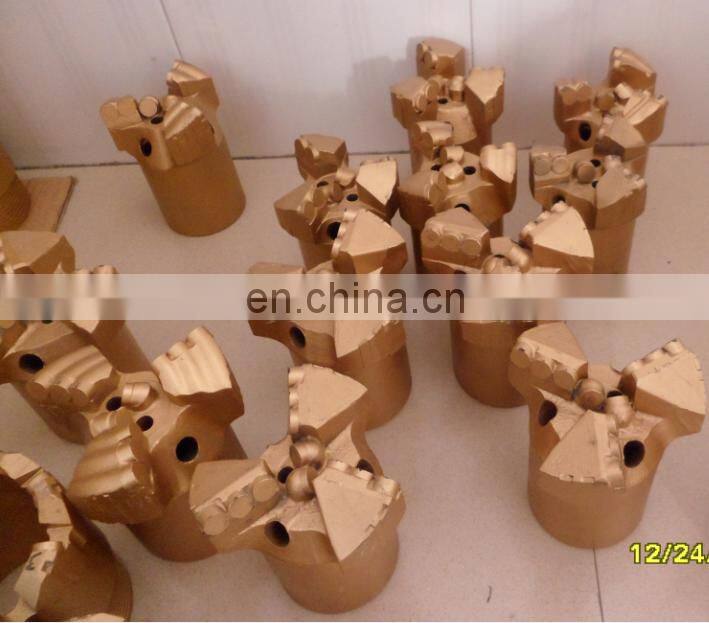

Detailed Images
Size Information
Size (Inch)
Size (mm)
Std. API thread
Approximate weight (kgs)
2-3/8
60
Non-std.
1.3
2-1/2
63.5
Non-std.
1.5
3
76
Non-std.
2
3-1/2
89
Non-std.
3.5
3-7/8
98.4
2-3/8"
5
4
102
2-3/8"
5.5
4-1/4
108
2-3/8"
6.5
4-5/8
117.5
2-7/8"
8
5-1/4
133
2-7/8"
11
5-5/8
142.9
3-1/2"
13
5-7/8
149.2
3-1/2"
14
6
152
3-1/2"
17
6-1/8
155.6
3-1/2"
18
6-1/4
159.3
3-1/2"
20
6-1/2
165
3-1/2"
22
7-1/2
190.5
4-1/2"
31
7-5/8
193.7
4-1/2"
32
7-7/8
200
4-1/2"
35
8-1/2
215.9
4-1/2"
42
8-5/8
219
4-1/2"
44
8-3/4
222.3
4-1/2"
45
9-1/2
241.3
6-5/8"
60
9-5/8
244.5
6-5/8"
65
9-3/4
247.7
6-5/8"
70
9-7/8
250.8
6-5/8"
75
10-5/8
270
6-5/8"
82
11-5/8
295
6-5/8"
90
12-1/4
311.2
6-5/8"
98
13-5/8
346.1
6-5/8"
134
15-1/2
394
6-5/8"
190
16
406.4
6-5/8"
200
17-1/2
444.5
7-5/8"
251
20
508
7-5/8"
300
24
610
7-5/8"
600
26
660.4
7-5/8"
700
26
660.4
7-5/8"
