HY-240 small portable hydraulic water drilling machine Water Well Drilling Rig for water wells
- 1000 per Month
- T/T Credit Card
You May Like
-
150m Dth Rock Drill Machine Air Compressor Drilling Rig suitable for drill rocks
-
Hydraulic Air Compressor Water Diesel Portable Bore Tube Well Drilling Machine
-
Hz series Core Drill Rig / Portable Diesel Hydraulic Hard Rock Drilling Machine
-
Factory price 100m depth borehole digging machine with diesel engine
-
Small portable diesel engine mine drilling rig with factory price
-
rock mining drill machine hydraulic drill rigs portable drilling rig
Product Description

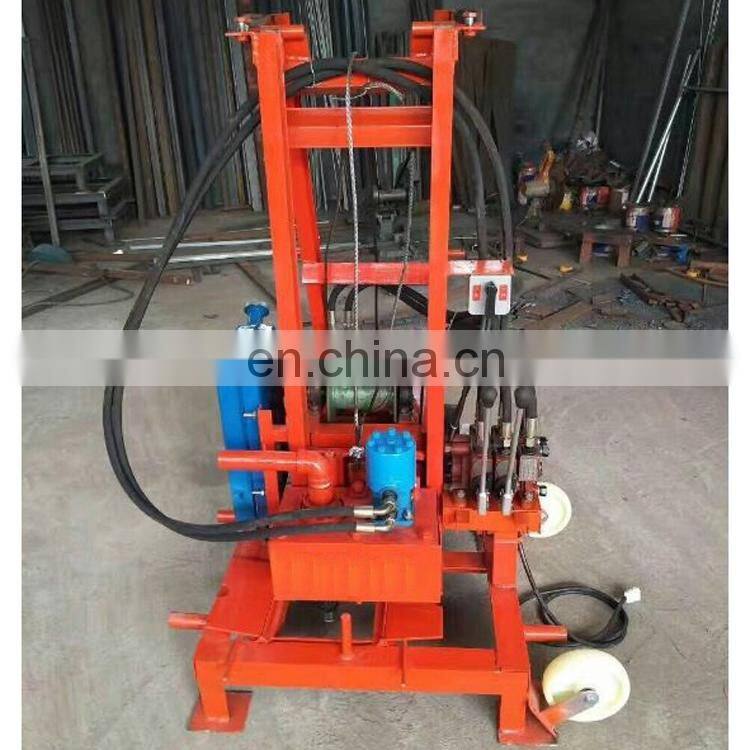

HY-240 small portable hydraulic water drilling machine Water Well Drilling Rig for water wells
drilling machine made in china:
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 100 meter.
The advantage of drilling machine made in chinaare as below:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.
|
Technical Parameters of hydraulic Water Well Drilling Rig (no need electricity) |
|
|
Model of drilling machine |
HY-240 |
|
Drilling machine overall dimension(mm) |
800*700*2500 |
|
Weight of Drilling machine (kg) |
200 |
|
Drill rod diameter (mm) |
Ø51 |
|
Drill rod length(mm) |
1500 |
|
Rod change method |
manual screw thread |
|
Drilling depth(m) |
100 |
|
Drilling method |
Percussive and rotating type |
|
Pump power (KW) |
2.2 |
|
Drilling hole diameter(mm) |
Ø 220 |
|
Hosting height(mm) |
2500 |
|
Hosting capacity (kg) |
800 |
|

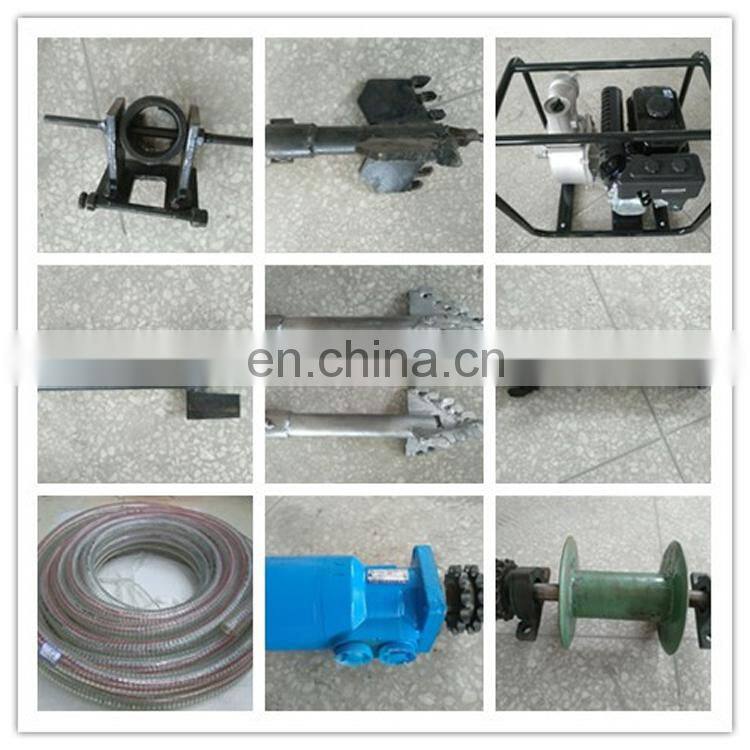

Completed unit of drilling machine include main machine, 40 meter drill rod, 1 pump, 2 units alloy drilling bit, 5 meter water pipe, English manual. |
|

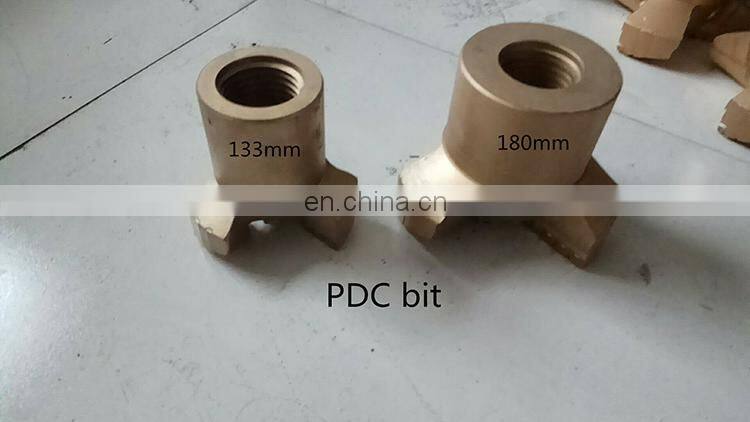

Spare parts with the machine
PDC bit

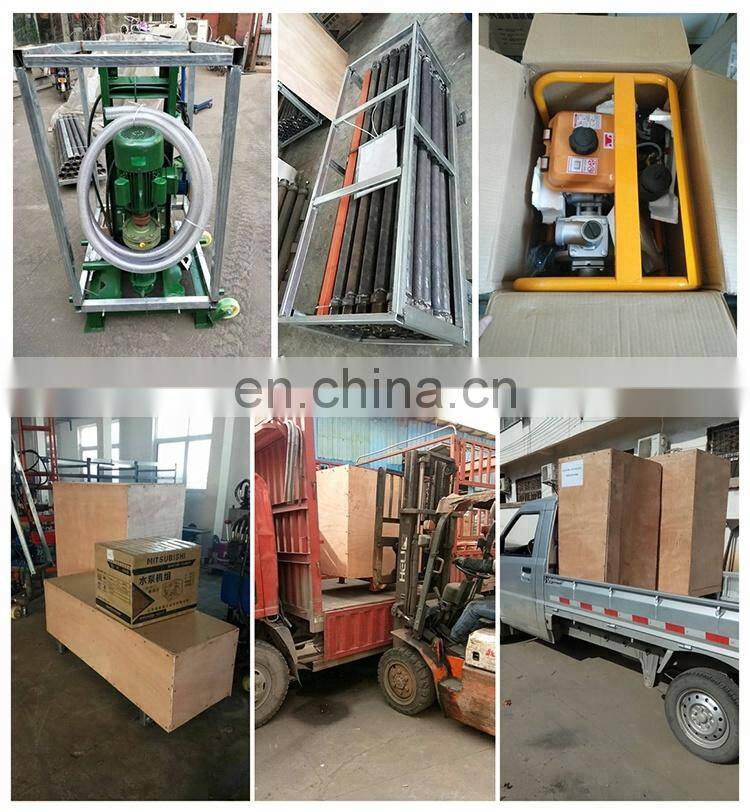

Shipping:
1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept order:Full container cargo load,Less container load
4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
|
|
|
