C63-80A Single Phase Smart MCB Switch Used With Prepaid Energy Meter

C63-80A Single Phase Smart MCB Switch Used With Prepaid Energy Meter thumbnail-1
C63-80A Single Phase Smart MCB Switch Used With Prepaid Energy Meter photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2011
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Shanghai FangQiu Electric Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

                 C63-80A Single phase Smart MCB switch



C63-80A Single phase Smart MCB switch used with Prepaid Energy meter

                                    C63-80A Single phase Smart MCB switch used with Prepaid Energy meter

  • Can be shut off automatically when the control signal voltage is lower than  the rated voltage.
  • Can be used with Prepaid Energy meter.
  • Can protect the over loaded circuit and short circuit.

Specification



   Model

                          WSB9S-80

Stardards

IEC/EN60947-2

Poles

1P+N

Tripping characteristics

                                       C

Rate current In

16…80A

Rate frequency f

50/60Hz

Rate voltage

230V AC

Pollution Degree

3

Short- circuit breaking capacity

6kA

Mechanical data

Housing

Insulation group I,RAL7035

Toggle

               Insulation group Ⅱ,black ,seable

Protection degree acc. To EN60259

IP40 in enclosure with cover

Mechanical endurance

20,000 ops

Shock resistance acc. to IEC/EN 60068-2-27

25 g, 2 shocks, 13 ms

Environmental conditions acc. to IEC/EN 60068-2-30

28 cycles with 55 °C/90-96 % and 25 °C/95-100 %

Ambient temperature

-25 ... +55 °C

Storage temperature

-40 ... +70 °C

Dimension and weight

Pole dimension (H*D*W)

91*72*36

Pole weigh

Approx. 300g



  Dimensions



 C63-80A Single phase Smart MCB switch used with Prepaid Energy meter

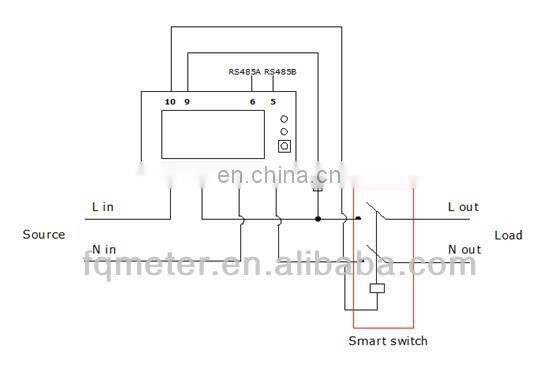

Connect wire with Fineco DIN energy meter



C63-80A Single phase Smart MCB switch used with Prepaid Energy meter

C63-80A Single phase Smart MCB switch used with Prepaid Energy meter
