Automatic vibrating fluidized bed dryer machine good price for sale
- 1000 per Month
- T/T Credit Card
- Industrial automatic vibration fluid bed dryer machine cheap price for sale
- Automatic continuous vibrating fluid bed dryer machine cheap price for sale
- Automatic salt dryer machine auto salt vibrating fluid bed drying equipment machinery good price for sale
- Automatic vibrating fluid bed seed dryer machine seeds drying machine good price for sale
- Professional automatic vibrating fluid bed bean drying machine beans soybean dryer good price for sale
- Automatic vibrating fluid bed sugar dryer machine sugar drying machines good price for sale
Product Description

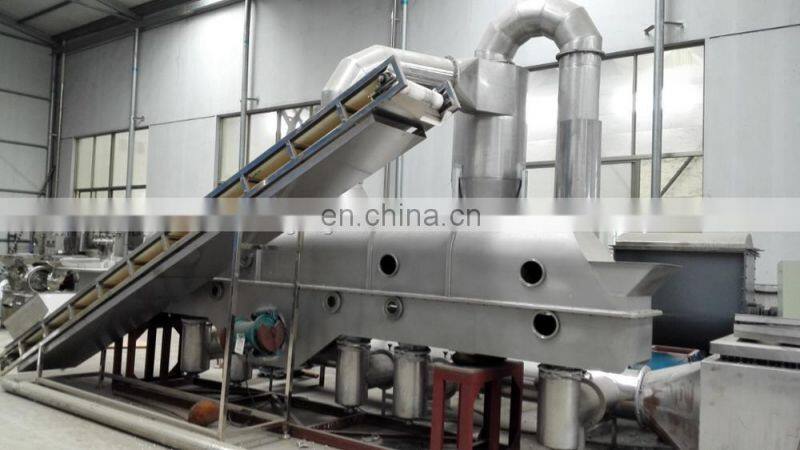

Automatic vibrating fluidized bed dryer machine
Introduction:

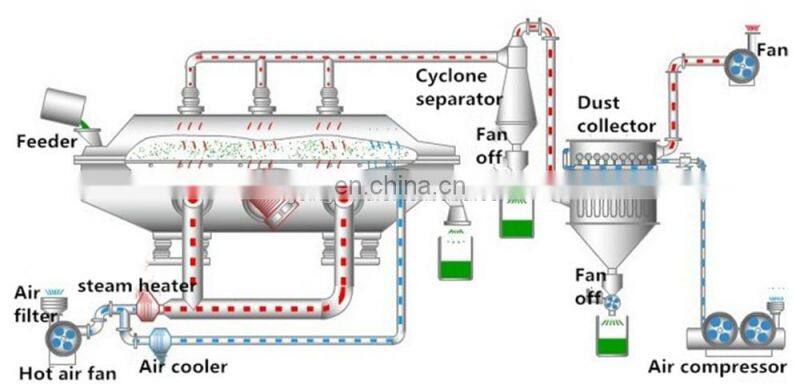

Raw material is fed into machine from input port, at the same time, vibrating motor on the two sides of fluid bed will cause vibration with regular frequency, make the material move forward continuously in horizontal direction. The heated air pass through fluid bed, and exchange heat with material, moisture will exhaust with air through cyclone duster separator, at last the dried material will be discharged by output port.
Application Scope:
Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on;
Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on;
It can also used for raw materials to add up damp or cooling and so on.
Main Features:
1. With high fluidized level, material heated uniformly, heat exchange adequately, save 30% energy compared with normal dryer. No dead angle and phenomenon of broken out.
2. Drive by vibrating motor, stable in operation, convenient in maintenance, with low noise, cause a long working life.
3. Good in adjustable and wide in suitability. The stay time for material, thickness of material layer, drying temperature all can adjust.
Model list:
MODEL | BED SIZE | EVAPORATION CAPACITY | MOTOR POWER | DIMENSIONS | WEIGHT |
GWF-3*30 | 3000*300mm | 20-35KG/H | 0.5*2KW | 3500*890*1830mm | 1240KG |
GWF-3*45 | 4500*300mm | 35-50KG/H | 0.75*2KW | 5000*1100*1830mm | 1570KG |
GWF-6*45 | 4500*600mm | 70-90KG/H | 1.1*2KW | 5000*1280*1940mm | 1950KG |
GWF-6*60 | 6000*600mm | 100-130KG/H | 1.1*2KW | 6500*1280*1940mm | 2750KG |
GWF-9*60 | 6000*900mm | 140-170KG/H | 2.2*2KW | 6510*1830*2110mm | 3550KG |
GWF-9*75 | 7500*900mm | 160-210KG/H | 2.2*2KW | 8000*1830*2110mm | 4220KG |
GWF-12*75 | 7500*1200mm | 200-260KG/H | 3*2KW | 8000*2400*2450mm | 5200KG |
GWF-15*75 | 7500*1500mm | 250-350KG/H | 4*2KW | 8000*2850*2570mm | 6420KG |
GWF-18*80 | 8000*1800mm | 320-450KG/H | 5.5*2KW | 8500*3250*3100mm | 8600KG |
Pre-sale service:
1. Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.
2. Our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.
Sale service:
1. Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.
2. Our company has excellent after-sales service, strict training to ensure that the user needs.
3. During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.
After-sales service:
1. Our company strictly abide by the after-sales service commitment, boot debugging within 12 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)
2. Our company promises to provide life-long maintenance for equipment.
