As a motor protection component, the motor protector effectively guarantees the safe operation of the motor, replaces the thermal relay, and realizes the motor control automation by using advanced communication technology.
Motor protector Function Feature
Protection functions: overload protection, blocking protection, blocking protection, external fault protection, current imbalance protection, starting overtime protection, grounding protection, phase failure protection, contactor breaking protection, underload protection;
Start mode: protection mode, direct start mode, bidirectional reversible start, star / delta start, autotransformer start;
Monitoring functions: 3 phase current, A phase voltage, active power, reactive power, power factor, frequency, active energy, work energy, grounding current, leakage current, 4 ~ 20mA analog input, heat capacity;
Optional protection: leakage protection, TE protection, temperature protection, analog input protection, overvoltage protection, undervoltage protection, under power protection, undervoltage restart;
Special features: analog input, digital input, relay output
Display: large-screen LCD display, high quality, wide viewing angle, high visibility;
Communication: RS485 communication, Modbus-RTU;
Applicable motor: Motor rated voltage: 380V ~ 660V, rated power 0.25 ~ 250kW

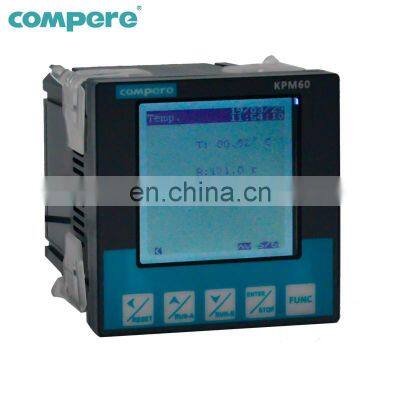

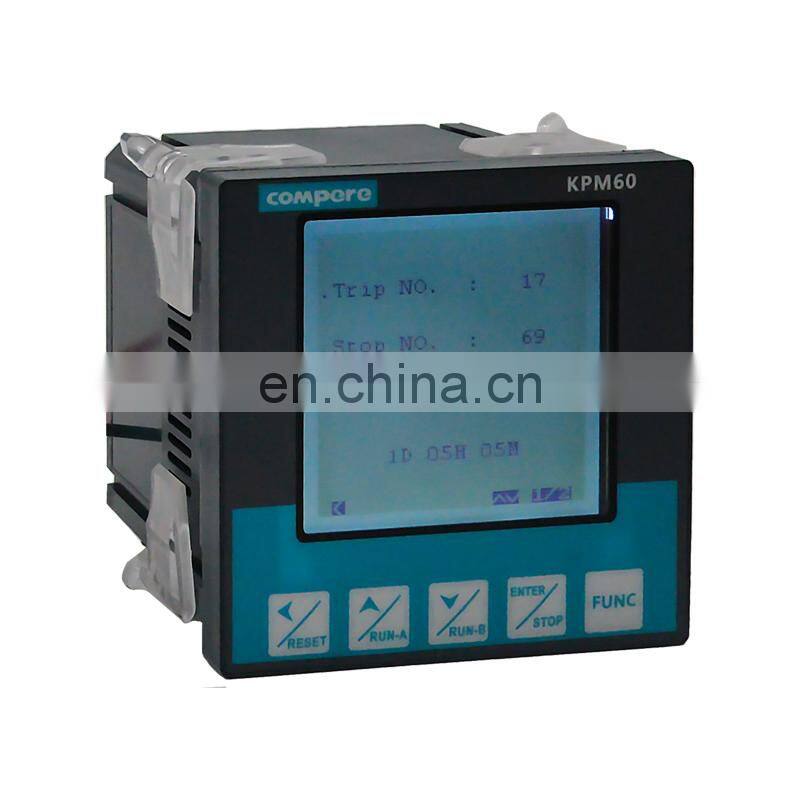

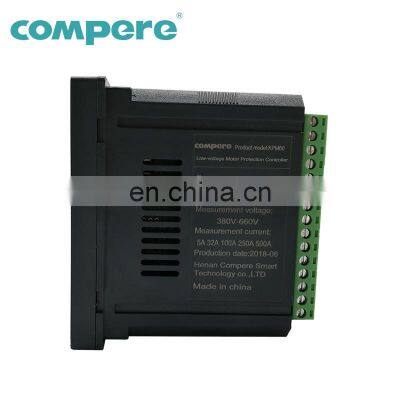

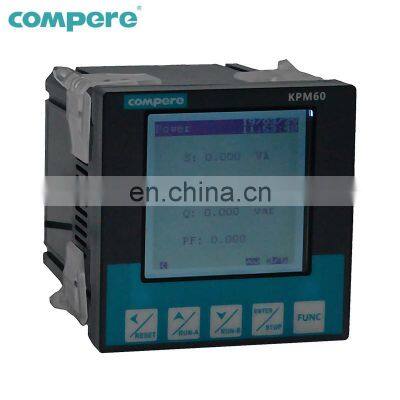

Product Show of motor monitoring smart relay
Accessories
|
KPM60 - KPM60 Low-voltage motor protection controller-Technical parameters |
||
|
Working power source |
Operating Voltage |
AC85~265VDC80~300V |
|
Rated power |
<5VA |
|
|
Input voltage |
Rated voltage |
380V-660V |
|
Frequency range |
45~65Hz |
|
|
Input current |
Rated current |
5A,32A, 100A, 250A, 500A |
|
Frequency range |
45~65Hz |
|
|
InputOutput |
Switch value input |
8-way passive main line contact DI input, internal supply DC24V power source |
|
Relay output |
4-way DO output,Contact capacity 250VAC5A,30VDC5A |
|
|
Analog output |
Output range 4~20mA,Programmable |
|
|
Temperature input |
Measure range 0℃~100℃ |
|
|
Measurement accuracy |
Current |
±1.0%(10%Ie~120%Ie) |
|
Leakage current |
±1.0%(5%Ise~100%Ise) |
|
|
Voltage |
±0.5%(20%Ue~150%Ue) |
|
|
Frequency |
±0.02Hz(45Hz~65Hz) |
|
|
Power factor |
±1.0%(-1~1) |
|
|
Energy |
±2.0% |
|
|
Power |
±2.0% |
|
|
Communication |
Communication interface |
RS485,Photoelectric isolation interface |
|
Communication protocol |
Modbus-RTU,1200~38400bps Profibus-DP,9600~12Mbps |
|
|
Electrical insulation |
Power frequency withstand voltage |
AC2kVmin~1mA Input-output-power source |
|
Insulation resistance |
>50MΩ |
|
|
Impact voltage |
5kV(Peak),1.250us |
|
|
Working environment |
Operating temperature |
-25℃ ~ +70℃ |
|
Relative humidity |
5%~95% No condensation |
|
|
Storage temperature |
-30℃ ~ +75℃ |
|
