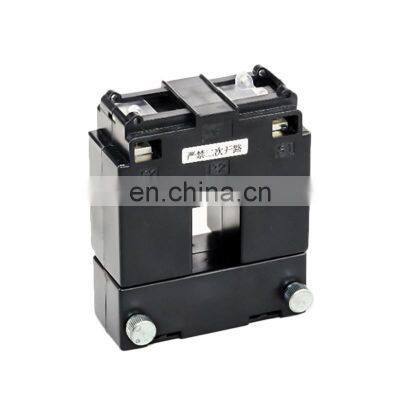

CT 2500/5A Split Core Current Transformer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Outlet Current Transformer Split Core Price for Energy ProjectNegotiableMOQ: 1 -
1000A/5A Easy Clamp Type CT Class 0.5 0.66KV Flexible Split Core Current TransformerNegotiableMOQ: 1
-
Easy to Install Accuracy Class 0.5 Split Core Open Type Current Transformer ManufacturerNegotiableMOQ: 1
-
CE Certificate High Precision Low Voltage Mini Split Core Current Transformer PriceNegotiableMOQ: 1
-
Factory Wholesale 11kv Current Transformer Coil Sensor for Electric MeterNegotiableMOQ: 1
5A~4000A split core current transformer for electric meter loading monitoring

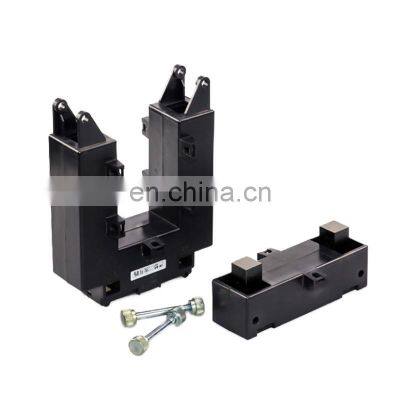

Split core current transformer:
1. Fastened double screws, safe, easy to install and easy to carry.
2. Two built-in fixing methods: basic; busbar mounting
3. Wide inner window for large cable or busbar clamping.
4. The range of sizes is wide to accommodate all existing devices.
5. The primary current is from 5A to 5000A.
1. Fastened double screws, safe, easy to install and easy to carry.
2. Two built-in fixing methods: basic; busbar mounting
3. Wide inner window for large cable or busbar clamping.
4. The range of sizes is wide to accommodate all existing devices.
5. The primary current is from 5A to 5000A.
Electrical Parameters |
Mechanical parameters |
||||
Frequency |
50-400Hz |
Shell |
PC/UL94-V0 |
||
Rated input |
5A-5000A |
Framework |
PBT |
||
Measuring range |
10%In-120%In |
Iron core |
Silicon steel |
||
Rated output |
0-5A |
Inner frame |
Winding |
||
Ratio difference |
≤ ± 0.5% |
Installation |
Open mounting |
||
Angle difference |
≤ ±30min |
Working temperature |
-25~+75℃ |
||
Dielectric strength |
2.5KV/1mA/1min |
Storage humidity |
≤50% |
||
Insulation resistance |
DC500V/100MΩ min |
Output wiring |
Terminal |
||
