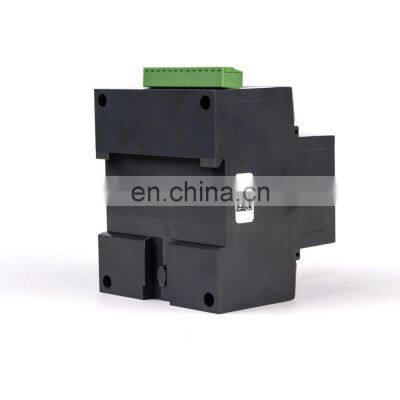

Power Meter For State Grid 4G/WIFI MQTT Protocol Energy Data Logger Electric Meter Energy Meter Wifi
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
4G/WIFI 3 Phase Smart Energy Meter Electricity Meter Electric Sub Meter Digital Kwh Power Data Logger for Solar Energy System
-
4G/WIFI 3 Phase Din Rail Energy Meter Electricity Consumption Monitor Modbus Energy Meter for Solar System
-
4G/Wifi 35mm Digital Power Meter 3 Phase Din Rail Energy Meter Dual Source Meter Digital Energy Meter
-
Energy Meter 3 Phase Dingital Counter Kwh Logger Din Rail With LCD Display and Modbus
-
3 Phase Bidirectional Din Rail AC Smart Electricity Energy Meter Digital Usage Monitor
-
High Overload Electric Energy Meter Single Phase Din Rail Power Meter Wifi Meters Electric
Product Description
Solar Power Meter Electricity Consumption Monitor Modbus Energy Meter Energy Data Logger Electric Meter
FEATURES AT A GLANCE
Application
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system
1. Intelligent distribution management system
2. Internal energy consumption statistical analysis and charging statistics basis
3. Energy metering, automatic meter reading system
4. Energy and energy efficiency management system

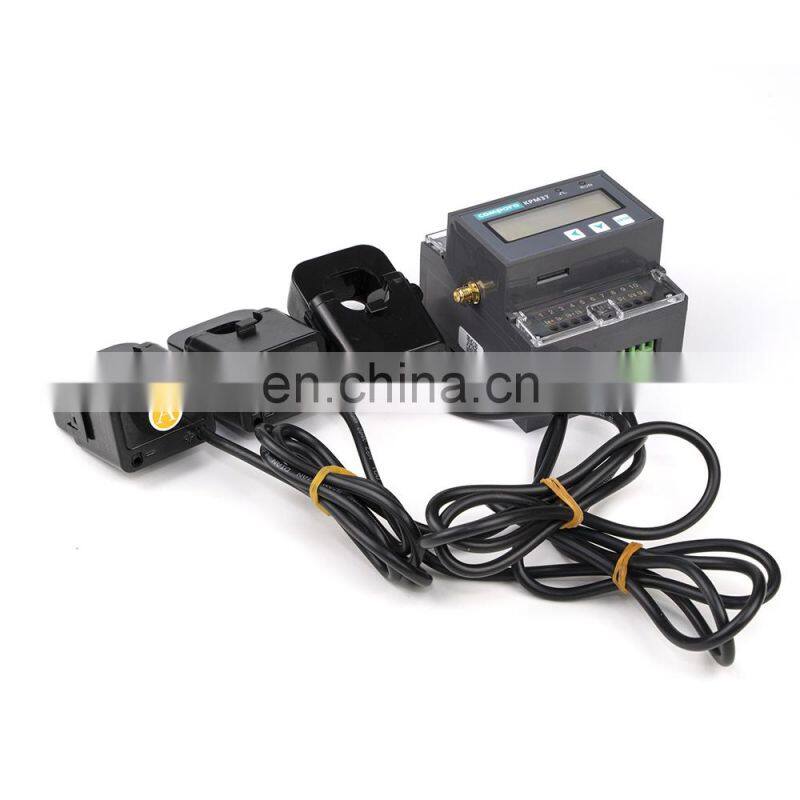

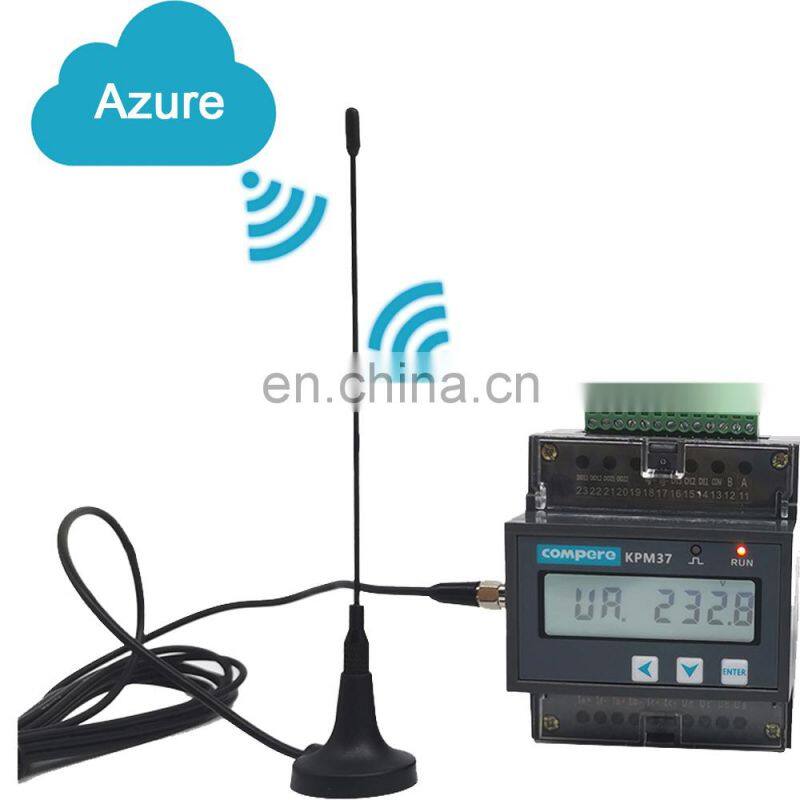

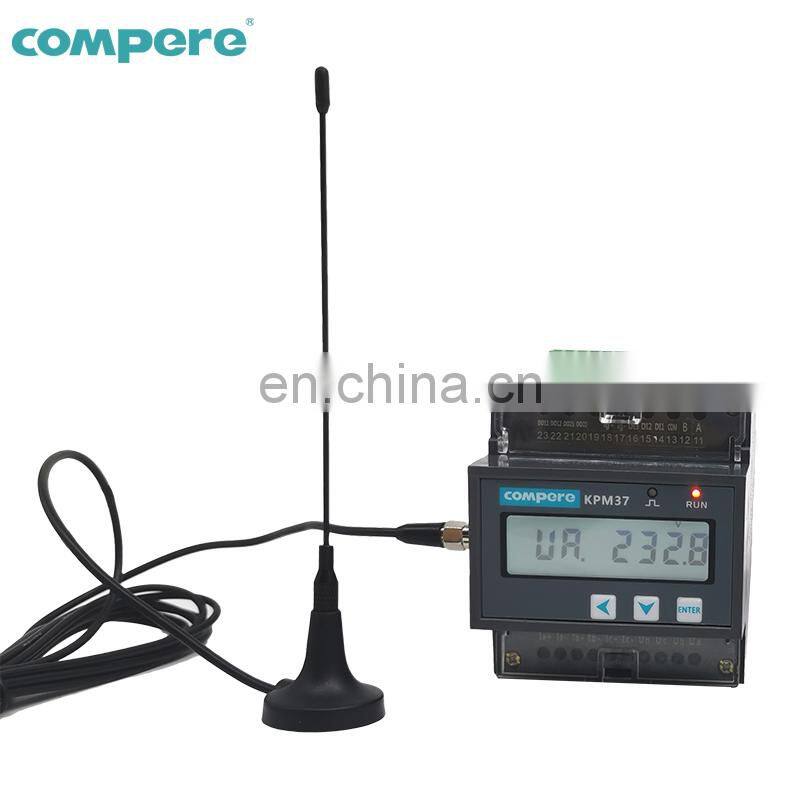

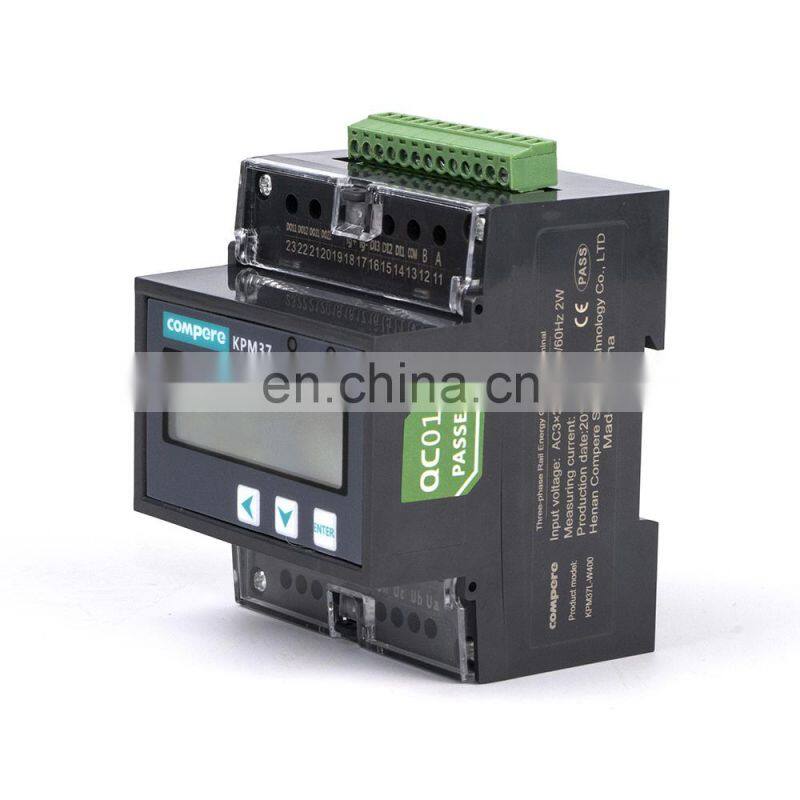

Details Images

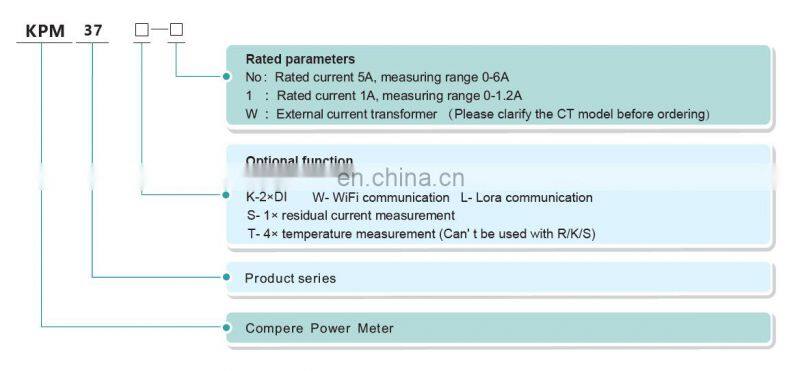

Product Paramenters

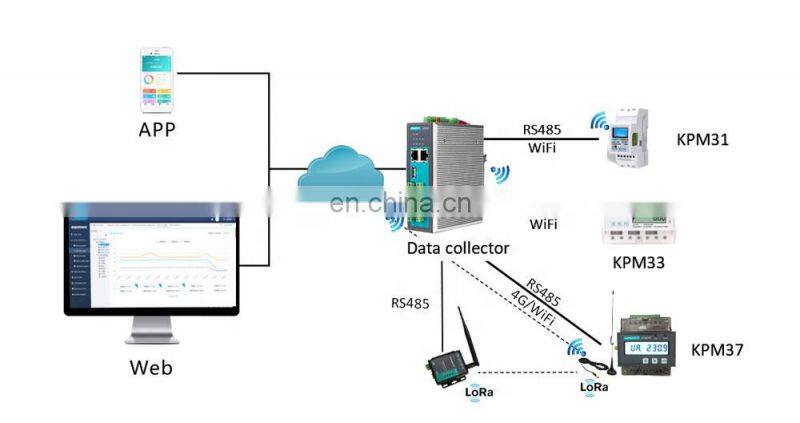

Solution diagram
T@energy wisdom energy management system can connect to KPM37 smart energy meter through RS485/WiFi/4G/Lora, etc.
Technical Parameters - KPM 37 DIN rail three phase wireless energy meter | Item | Data | ||
accuracy class | Voltage: 0.2; Current: 0.2; Frequency: 0.02; Power Factor: 0.5 | 37.5KW | ||
2 | Active Power: 0.5S; Reactive Power: 2.0 | 2.8 M3 | ||
3 | Active Energy: 0.5S; Reactive Energy: 2.0 | 125Ton | ||
Rated Value | Voltage: 57.7/100V, 220/380V,380/660V | |||
5 | Max. breakout force | Current: 5A (0~6A) | ||
6 | Overload | Voltage: Sustained Overload: 1.2 times of the rated value | ||
7 | Engine displacement | Momentary Overload: 2 times of the rated value, allows 1s | ||
8 | Max. torque | Current: Sustained Overload: 1.2 times of the rated value | ||
Momentary Overload: 20 times of the rated value, allows 1s | ||||
Frequency | 45-60Hz | |||
Pulse Output | 1 | |||
Interface | RS485 / WIFI / 4G/ Lora Modbus-RTU,DL/T645-2007, MQTT, 1200~38400bps | |||
Working Range | AC: 85-265V; DC: 80-300V | |||
Consumption | < 0.5VA per phase | |||
Temperature | Operating: -25°C~+70°C. Storage: -30°C~ +75°C | |||
Humidity | 5%~95% No condensation | |||
Altitude | <3000m | |||
Dimensions: | 75*88*74mm | |||
Certifications

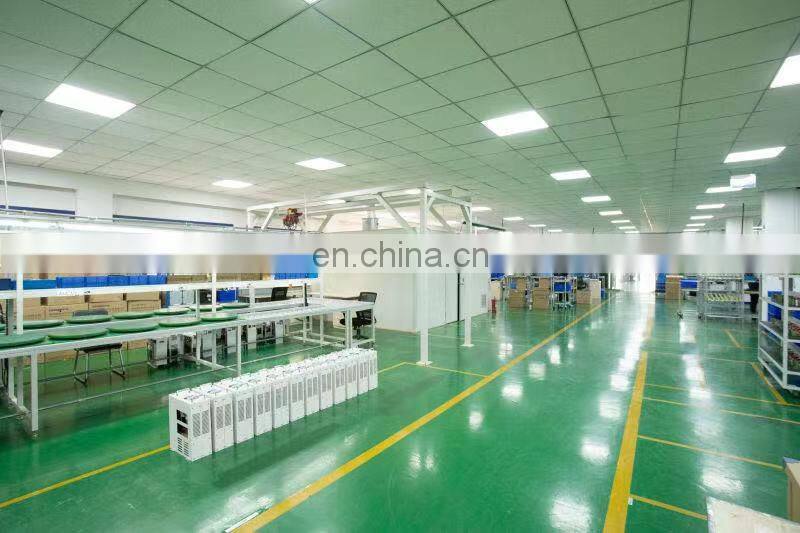

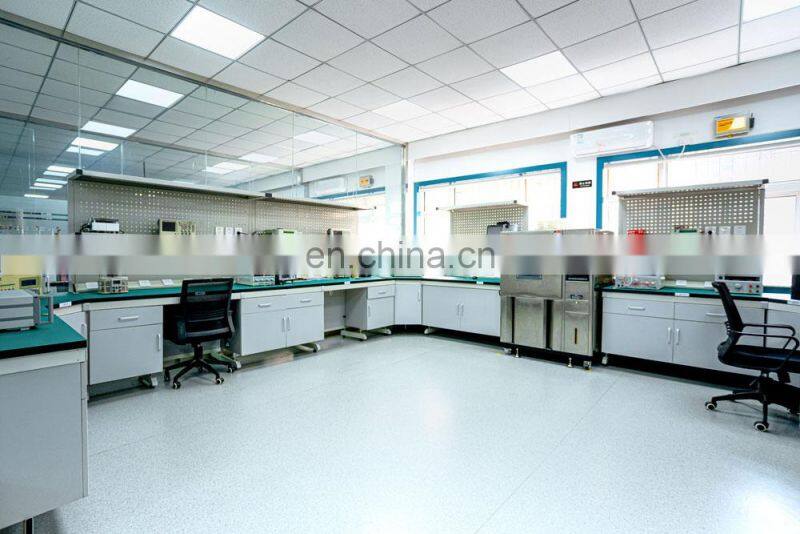

Company Profile
Our Team

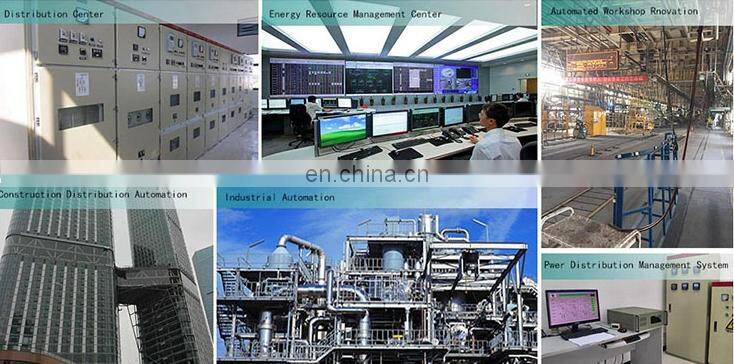

Application
