Mini Size SOS Button Emergency Home Security Alarm System Zigbee Panic Button
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Size SOS Button Emergency Home Security Alarm System Zigbee Panic ButtonNegotiableMOQ: 1 -
Zigbee Humidity Temperature Illuminan Zigbee Smart Wireless Presence Sensor Zigbee Multi Sensor Occupancy SensorNegotiableMOQ: 1
-
ZigBee Multi-sensor Temperature Humidity Lighting Motion SensorNegotiableMOQ: 1
-
Zigbee Smart Wireless Security Alarm System ZigBee SirenNegotiableMOQ: 1
-
Zigbee Wireless Smart Home Security System ZigBee Smoke Detector Property Management SystemNegotiableMOQ: 1
Product Description
Product Name |
Zigbee Panic Button |
Wireless Connectivity |
ZigBee 2.4GHz IEEE 802.15.4 |
RF Characteristics |
Operating Frequency: 2.4GHz
Outdoor/Indoor range: 100m/30m
|
ZigBee Profile |
Home Automation Profile |
Battery |
CR2450, 3V Lithium battery
Battery Life: 1 year
|
Operating Ambient |
Temperature: -10~45°C
Humidity: up to 85% non-condensing
|
Dimension |
37.6(W)* 75.66(L) *14.48(H) mm |
Weight |
31g |
Sos Emergency Home
Security Alarm System
Mini Size Zigbee Panic
Button
* ZigBee HA 1.2 compliant
* Compatible with other ZigBee products
* Press the panic button to send notification to the phone
* Low power consumption
* Easy installation
* Mini size
* Press the panic button to send notification to the phone
* Low power consumption
* Easy installation
* Mini size
Details Images

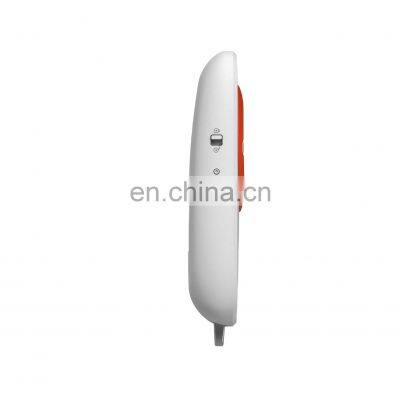

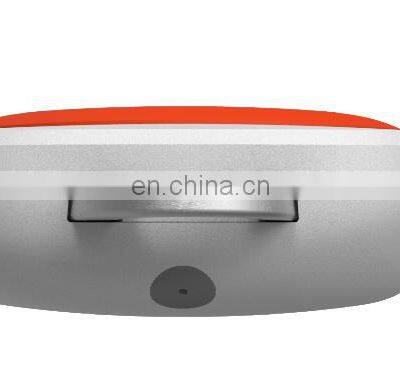

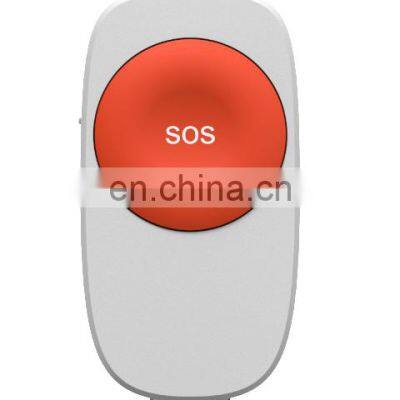

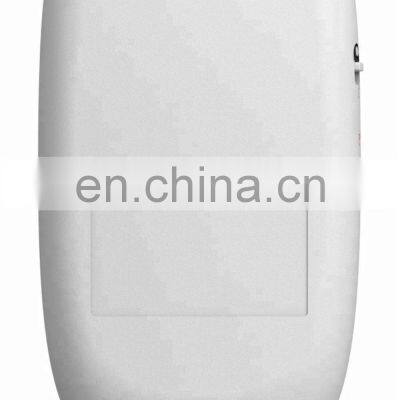

Sos Emergency Home Security Alarm System Mini Size Zigbee Panic Button
Zigbee Panic Button
The PB206 ZigBee Panic Button is used to send panic alarm to the mobile app by simply pressing the button on the controller.
Product Usage
-
Zigbee Panic Button
(1) Send Alarm. Press to send the
panic alarm to the mobile app.
Get started
1. To get started, you will need:
(1) A SEG-X3 Smart Gateway
(2) The SmartOWON mobile app.
2. Connect to gateway’s network
(1) Set your gateway to permit joining.
(2) Power on the panic button. Press the reset button
once and the LED indicator will flash red for three times indicating the panic button is ready to join the gateway's network.
3. The panic button will join the gateway’s network automatically. The LED indicator will flash green for three times when it has successfully joined.
4. Now you can use the panic button in your system.
(1) A SEG-X3 Smart Gateway
(2) The SmartOWON mobile app.
2. Connect to gateway’s network
(1) Set your gateway to permit joining.
(2) Power on the panic button. Press the reset button
once and the LED indicator will flash red for three times indicating the panic button is ready to join the gateway's network.
3. The panic button will join the gateway’s network automatically. The LED indicator will flash green for three times when it has successfully joined.
4. Now you can use the panic button in your system.
