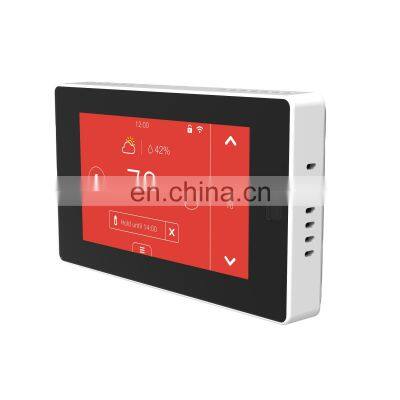

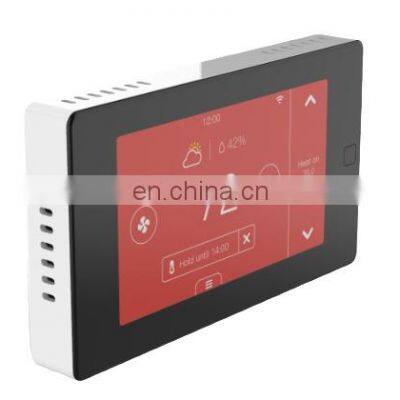

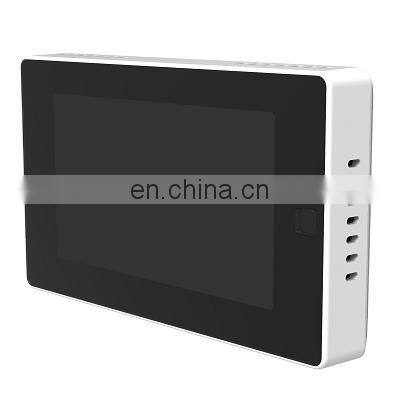

WiFi Smart Home Programmable Thermostat Alexa Touch Screen Thermostat
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2001
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thermostat Wifi AlexaProgrammable Alaxa Google Home HVAC Touchscreen Smart Home Thermostat WiFiNegotiableMOQ: 1 -
ZigBee Home Automation IR Blaster Smart Air Conditioner ControllerNegotiableMOQ: 1
-
ZigBee Smart Home Automation Smart ac Controller Temperature Control Thermostat IR Split AC ControllerNegotiableMOQ: 1
-
Wireless Adapter Split Air Conditioner Control Zigbee IR Controller Smart Air Conditioner ControllerNegotiableMOQ: 1
-
Google Home HVAC Programmable Touchscreen Room Thermostat WifiNegotiableMOQ: 1
Product Description
Product Name | Google Home Touchscreen Thermostat |
System Mode | Heat, Cool, Auto, Off, Emergency Heat (Heat Pump only) |
Fan Mode | On, Auto, Circle(adjustable) |
Advanced | Setting temperature locally or remotely Auto-changeover between heat and cool mode (System Auto) Compressor protection time is available for select Failure protection by cutting off all circuit relays Smart warmup, low temperature protection |
Auto Mode Deadband | 1.5° C, 3° F |
Temp. Setpoint Span | 0.5° C, 1° F |
Wi-Fi | 802.11 b/g/n @ 2.4GHz |
Tx-Power | ±2dBm |
Radio | 915MHZ |
LCD Screen | 4.3-inch color touch screen |
PIR Sensor | Detect occupancy Sensing Distance 4m, Angle 120° |
Electrical Rating | 24 VAC, 1A Carry; 5A Surge 50/60 Hz |
Switches/Relays | 9 Latching type relay, 1A maximum loading |
Temperature | Sensing Range: −40~125°C Sensing Accuracy: ±1°C Response Time: 2min |
Humidity | Sensing Range: 0~100% Sensing Accuracy: ±3% (20% ~80%) Response Time: 2min |
Operating Environment | 0~ 50° C, 32 ~122° F Humidity range: 5%~95% |
Storage Temperature | -30 ~ 60° C , -22° F ~ 140° F |

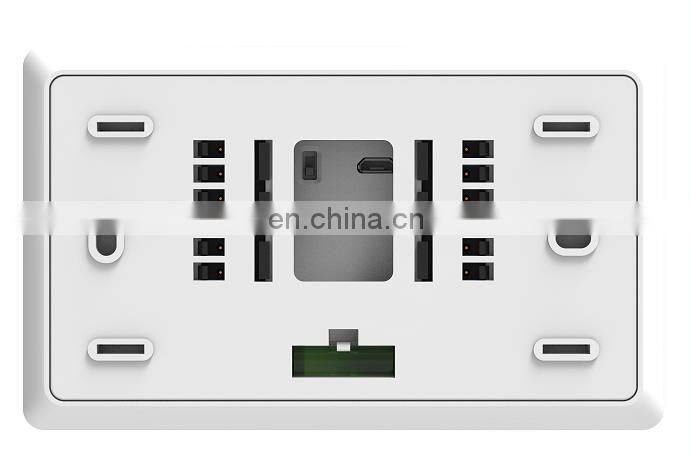

Wiring | 18 AWG, Requires both R and C wires from the HVAC System |
Dimensions | 135(L) × 77.36 (W)× 23.5(H) mm |
Mounting Type | Wall Mounting |
Programmable Alaxa Google
Home HVAC Touchscreen Smart
Home Thermostat WiFi

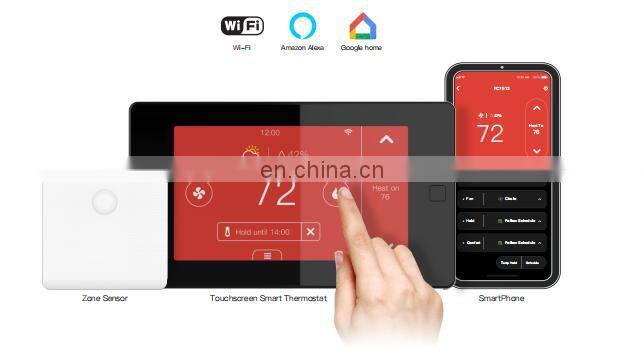

The Wi-Fi Touchscreen thermostat makes it easier and smarter to control your household temperature. With zone sensors, you can manage hot or cold spots throughout the home. And you will be able to remotely control the temperature anytime through your mobile phone and web portal.

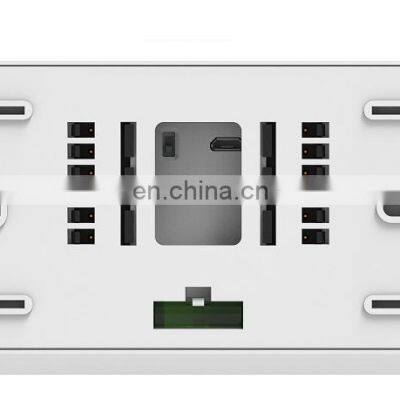

Details Images

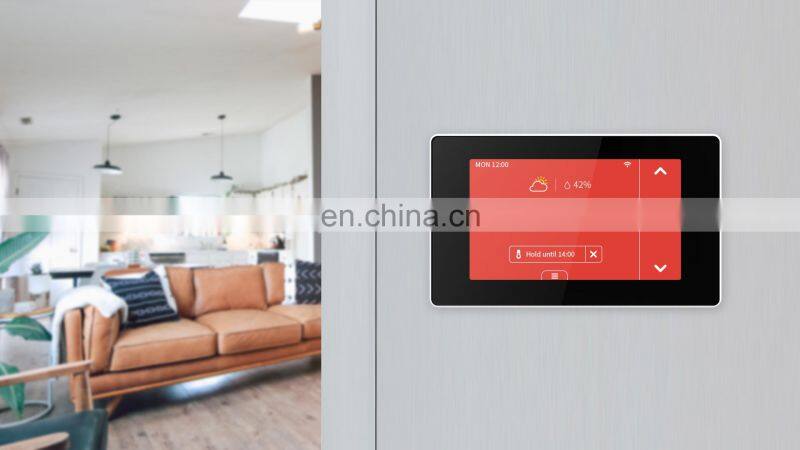

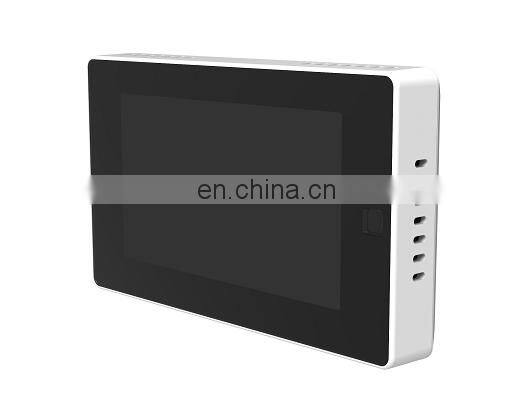

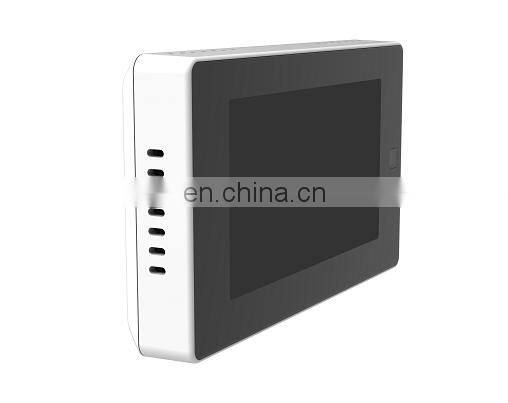

Google Home Hvac Programmable Room Smart Thermostat
Product Usage
Basic HVAC Control
* Supports 2H/2C multistage conventional system or 4H/2C Heat Pump system
* The 4-period and 7-day programming schedule on the device or through the APP
* Multiple HOLD options: Permanent Hold, Temporary Hold, Follow Schedule
* Automatic heating and cooling changeover
* Fan cycle mode periodically circulates fresh air for comfort and health
* Smart warmup, low temperature protection
* The 4-period and 7-day programming schedule on the device or through the APP
* Multiple HOLD options: Permanent Hold, Temporary Hold, Follow Schedule
* Automatic heating and cooling changeover
* Fan cycle mode periodically circulates fresh air for comfort and health
* Smart warmup, low temperature protection
Advanced HVAC Control
* Support up to 16 remote zone sensors for location-based temperature control
* Geofencing
* Preheat or precool your house before you get home
* Vacation mode
* Optional time settings for compressor short cycle protection delay
* No click sound when thermostat starts work
* Wiring test
* Preheat or precool your house before you get home
* Vacation mode
* Optional time settings for compressor short cycle protection delay
* No click sound when thermostat starts work
* Wiring test
User Interaction
* 4.3” TFT LCD touchscreen
* Voice control: Amazon Alexa and Google Home
* System status indicated by different backlight colors
* Backlight brightness level adjustable
* PIR motion detection
* Intuitive UI
* Voice control: Amazon Alexa and Google Home
* System status indicated by different backlight colors
* Backlight brightness level adjustable
* PIR motion detection
* Intuitive UI
Information & Notification
* 5-day weather forecast
* Indoor humidity sensing
* Multi-room temperature display
* Air Filter change reminder
* Unusual heating or cooling alert
* Indoor humidity sensing
* Multi-room temperature display
* Air Filter change reminder
* Unusual heating or cooling alert
Installation & Setup
* Wiring module available to power your thermostat without a C-Wire having to run a fifth wire.
* Interactive wizard
* Built-In level for mounting
* Multi-level keypad lockout
* Interactive wizard
* Built-In level for mounting
* Multi-level keypad lockout
Smart IoT Features
* Supports Wi-Fi 802.11 B/G/N 2.4
* Control the thermostat remotely using an APP or Web portal
* Access to multiple thermostats from a single APP or Web portal
* Private cloud guarantees data privacy
* Device-level and cloud-level API available for integration with 3rd party Cloud
* Control the thermostat remotely using an APP or Web portal
* Access to multiple thermostats from a single APP or Web portal
* Private cloud guarantees data privacy
* Device-level and cloud-level API available for integration with 3rd party Cloud
Related Products
Certifications
Packing&Shipping
Company Introduction
OWON Technology (part of LILLIPUT Group) is an ISO 9001:2008 certified Original Design Manufacturer specialized in the design and manufacturing of electronic and computer-related products since 1993.
Backed by a solid foundation in embedded computer and LCD display technology, and by partnering with major industry players, OWON further integrates IOT technologies into its technology mix, offering both standardized products and customized solutions for utilities, cable/broadband operators, home builders, property management, contractors, and the retail market. OWON’s line of ZigBee technologies covers Smart Energy, Home Automation, and Light Link.
ODM/OEM Service
* Transfers your ideas to a tangible device or system
* Delivers full-package service to achieve your business goal
* Full-line technical service including industrial & structural design, hardware & PCB design, firmware & software design, andsystem integration;
* 20-plus years of manufacturing experience backed by a mature and efficient supply chain;
* Stable and consistent human resources as well as active employee involvement;
* The combination of “international presentation” and “made in China” guarantees high-level customer satisfaction without sacrificing cost effectiveness
