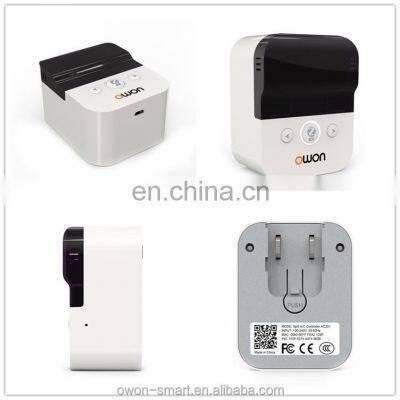

ZigBee Infrared Smart Home Automation Temperature Control Thermostat IR Split AC Controller
- Converts home automation gateway’s ZigBee signal into IR command so as to control the split air conditioners in the home area network
- All-angle IR coverage: equipped with 7 IR emission sensors to cover 180° of the target area
- Room temperature display
- Pre-installed IR code sets for main stream split air conditioners
- IR code study functionality for unknown brand AC equipment
- Switchable power plugs for various country standards: EU, UK, US, AU
Specification
| Wireless Connectivity |
ZigBee 2.4GHz IEEE 802.15.4
IR
|
| RF Characteristics |
Operating frequency: 2.4GHz
Internal PCB Antenna Range outdoor/indoor: 100m/30m TX Power: 6~7mW(+8dBm) Receiver sensitivity: -102dBm |
| ZigBee Profile |
Home Automation Profile |
| IR |
Infrared emission and receiving
Angle: 180° all-angle covering Working temperature: 0-70°C Carrier frequency: 15kHz-85kHz |
| Temperature Sensor | Measuring range: -10-85°C |
| LEDs | Power, ZigBee, IR |
| Power Supply |
Direct plug-in: AC 100~240V (50~60Hz) Rated power consumption: 4W |
| Dimensions | 66.5(L) x 85(W) x 43(H) mm |
| Mounting Type |
Direct Plug-in Plug Type: US, EU, UK, AU |
