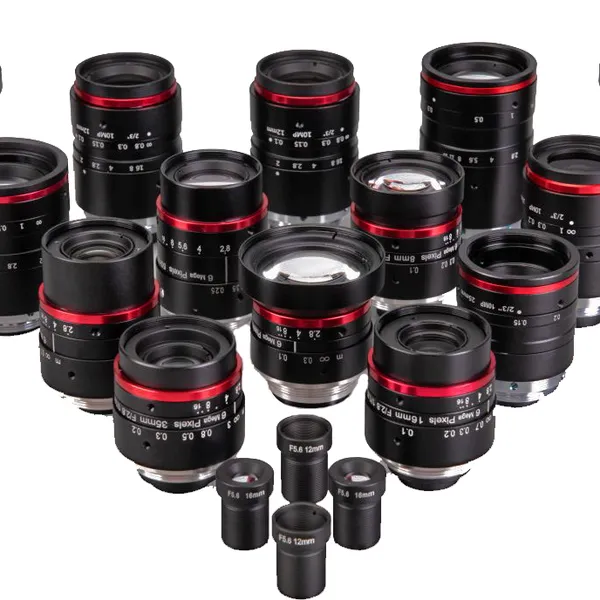

6mm 1/1.8" 6.0 Megapixel Machine Vision Lenses FA Low Distortion Industrial Camera Lens Automation Measurement Positioning Computer AI C Mount China Optics
High resolution : 6.0 megapixel cover all 4K & 1080P
Large format: 1/1.8" size covering 1/1.8", 1/2", 1/3 camera
Mini size : Small size design makes it match most application
Low distortion : Low distortion for measurement and vision
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model |
SFA0628-6M |
|
Format |
1/1.8”(Φ9.5mm) |
|
Resolution |
6.0 Megapixel( 2.4μm pixel size ) |
|
Focal Length |
6mm |
|
Aperture (Close) |
F2.8 Manual iris |
|
Angle of View (°) |
1/1.8" |
75*61.2*48 |
M.O.D |
0.1m |
|
Distortion(TV) |
Min.0.1% (200~400mm), Max 0.8% |
|
Filter Size |
M37.5*P0.5 |
|
Relative illumination |
62% (H=4.5mm WD=INF) |
|
Transmission |
AT486~656nm T≥85% |
|
T.T.L |
49.5mm |
|
B.F.L |
9.87mm |
|
CRA |
13.4° |
|
Dimension |
Φ39*32.3 |
|
Mount |
C |
|
Weight |
65g |
|
Marks |
8G |
|
