Home > Industrial Equipment & Components > Engine & Part > Engine > General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved

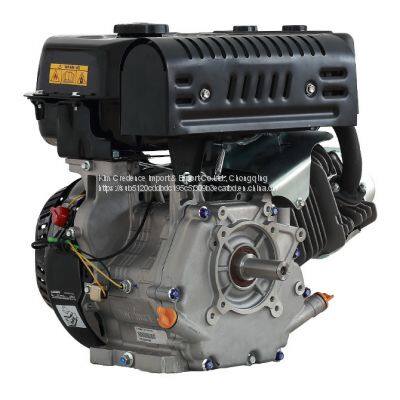

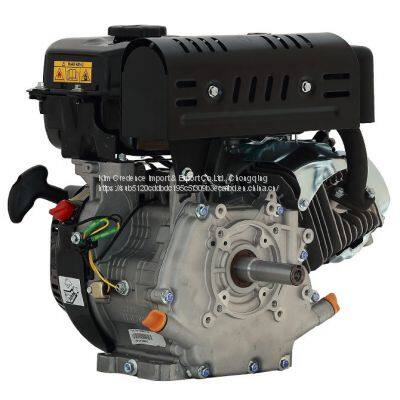

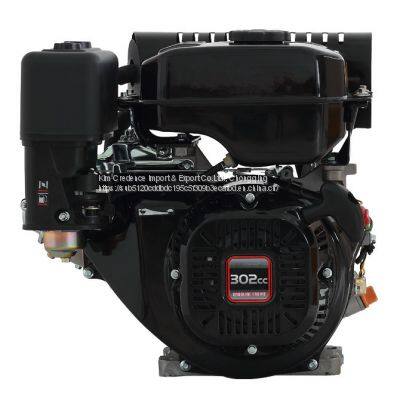

General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved

Kim Credence Import & Export Co.Ltd., Chongqing
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved thumbnail-1
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved thumbnail-2
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved thumbnail-3
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved thumbnail-4
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved thumbnail-5
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved photo-1
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved photo-2
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved photo-3
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved photo-4
General Purpose Powerful Single cylinder,4 Stroke, forced cooling ,OHV Gasoline Engine With CE and EPA Approved photo-5
US$ 70 - 250 MOQ: 20 Units
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2010
Factory Size:
5,000-10,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

New rocker arm for higher stability and longer working life

·Lock-style valve with longer working life

·Efficiency of air intake, exhaust and power output improved with 25 degrees valve angle

·Improved heat sink and air flow with higher power and longer working life

·Modified combustion chamber for full combustion, power improving and lower fuel consumption

·Cast iron cylinder liner

·Automatic compression release

·Automatic low oil engine shutdown system

·EPA emission certified

ModeLC152FLC154FLC165F/LC165FDLC170F/LC170FDLC175F/LC175FDLC180F/LC180FDLC185F/LC185FDLC190F/LC190FD
Engine typeSingle cylinder,4stroke, forced cooling ,OHV
Displacement                 97cc                87cc                182cc                212cc                265cc                302cc                375cc                420cc
Bore×Stroke52mm×46mm54mm×38mm65mm×55mm70mm×55mm75mm×60mm80mm×60mm85mm×66mm90mm×66mm
Net power1.2kW/3600rpm2kW/4200rpm4.0kW/3600rpm4.4kW/3600rpm5.3kW/3600rpm6.2kW/3600rpm7.8kW/3600rpm 9.0kW/3600rpm
Net torque3.2 N.m/2800rpm4.5N.m/3800rpm10.8 N.m/2500rpm12.5N.m/2500rpm15.5 N.m/2500rpm18.5N.m/2500rpm23.2 N.m/2500rpm26.5N.m/2500rpm
Idle speed1700±150r/min1800±150r/min 1400±150r/min1400±150r/min1400±150r/min1400±150r/min1400±150r/min1400±150r/min
Compression ratio5.6∶18.0∶18.5∶18.5∶18.2∶18.5∶18.5∶18.5∶1
PTO shaft rotationAnti-clockwise(from PTO side)
Noise ≤70B(A)
Ignition system Transistorized magneto ignition
Starting systemRecoil startRecoil start/Electic-start
CarburetorButterfly
Lubrication systemSplash
Governor systemCentrifugal mass type
Air cleanerSemi-dry,dual element
Oil capacity0.45L0.35L0.6L0.6L0.95L0.95L1.1L1.1L
Fuel tank capcity1.4L1.6L3.0L3.0L4.6L4.6L6.0L6.0L
Net weight9kg10.5kg16kg16kg/18kg26kg/28kg26kg/28kg31kg/33kg31kg/33kg
Dimension 280×270×345310×260×305381×325×327381×325×327422×380×415422×380×415440×405×435440×405×435


Product Tags: Petrol engine , Air forced 4 stroke engine , Single cylinder gasoline engine
