Continuous Decanter Centrifuge for Solid Separate Centrifuge for Solid Separate
US$ 10000 - 16800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LYSZ
Place of Origin:
China
Model Number:
LSZW-500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
90 days
Related Products
-
China Solid Bowl Decanter Machine Decanter Centrifuge Lab Gea Decanter CentrifugeUS$ 10000 - 16800MOQ: 1 Set -
Industrial Proof Centrifuge Waste Water SeparatorUS$ 10000 - 16800MOQ: 1 Set
-
Soy Protein Extractor Decanter Centrifuge MachineUS$ 10000 - 16800MOQ: 1 Set
-
Horizontal Continue Fish Oil Decanter Centrifuge Fish Oil Decanter Centrifuge Small Centrifuge DecanterUS$ 10000 - 16800MOQ: 1 Set
-
Industrial Separator Decanter Centrifuge PriceUS$ 10000 - 16800MOQ: 1 Set
Brand Name
LYSZ
Place of Origin
China
Model Number
LSZW-500
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
depending on model
Dimension(L*W*H)
depending on model
Product Type
Other, separation equipment
Voltage
220V/380V
Power(W)
depending on model
Product Description
Continuous Decanter Centrifuge for solid separate Centrifuge for solid separate
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.
The product can be classify into two type LW-counter-current and parallel-current base on its structure feature. According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator.
It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc…
It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc…
Operating principle:
The purpose of separation is to separate out substances with different mass ratios from mixed fluid.Separation forms included solid-liquid separation,liquid-liquid separation and liquid-liquid-solid separation.

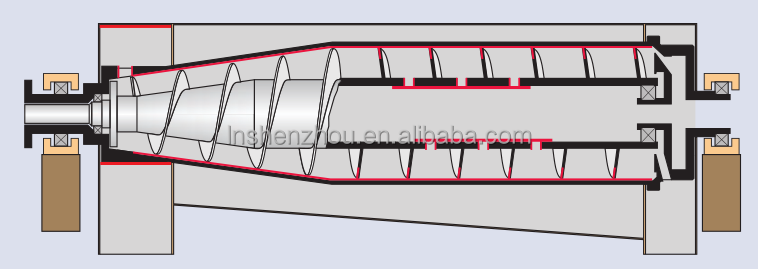

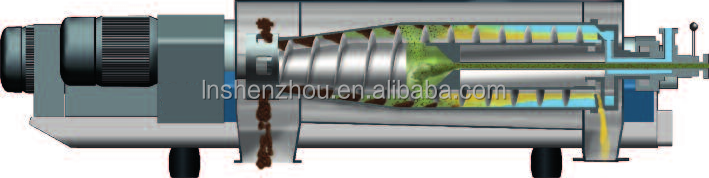

When mixed fluid enters rotating bowl of centrifuge through feed tube ,solids with larger density would rapidly deposit on inner wall of the bowl,forced by centrifugal acceleration.Then spiral pusher pushed deposited solids to taper end of the bowl,and discharges them out of centrifuge from residual outlet.Meanwhile ,liquid phase with smaller density forms a liquid ring layer and discharges from bowl through overflow port,the bowl and spiral pusher run at a high speed simultaneously ,for there exists speed discrepancy,deposited solids on the wall of bowl could be conveyed to residue outlet by spiral pusher.This separation process carry out continuously.
Separation technique
Feeding-gravitational separation-liquid discharge-sediment discharge.
Separation effect factors Centrifuging factor ,length to diameter ratio of cavity ,depth of fluid pool.
Field control
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.
The purpose of separation is to separate out substances with different mass ratios from mixed fluid.Separation forms included solid-liquid separation,liquid-liquid separation and liquid-liquid-solid separation.
When mixed fluid enters rotating bowl of centrifuge through feed tube ,solids with larger density would rapidly deposit on inner wall of the bowl,forced by centrifugal acceleration.Then spiral pusher pushed deposited solids to taper end of the bowl,and discharges them out of centrifuge from residual outlet.Meanwhile ,liquid phase with smaller density forms a liquid ring layer and discharges from bowl through overflow port,the bowl and spiral pusher run at a high speed simultaneously ,for there exists speed discrepancy,deposited solids on the wall of bowl could be conveyed to residue outlet by spiral pusher.This separation process carry out continuously.
Separation technique
Feeding-gravitational separation-liquid discharge-sediment discharge.
Separation effect factors Centrifuging factor ,length to diameter ratio of cavity ,depth of fluid pool.
Field control
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.
In the production of surimi, the shredded fish fillets will go through two to three cleaning processes. In this process, impurities such as blood and fat are washed away. The washing water is usually roughly filtered through a rotating sieve. In traditional surimi production, the dehydration of fish meat is done by a screw press. The meat is then treated with antifreeze and deep-frozen. This surimi production method has many disadvantages: Different washing stages and screw pressing process lead to a large amount of fish fiber loss 1.Need a lot of cleaning water 2.Huge space requirement 3.The raw material is easy to be infected with bacteria The Shenzhou decanter centrifuge can solve all the above problems. In the production of surimi, the decanter centrifuge can not only recover the fish meat from the washing water, but also replace the screw press. In this way, the output rate of the surimi production process can be significantly improved.
1, Helical pusher adopts the special antifriction method: sprinkle hardness alloy or inlay hardness alloy anti-friction disk; anti –corrosion stainless steel is employed for the material of the main parts of drum, so that assure the durability and longer using lifetime of the equipment.
2, According to the operating condition’s characteristics of material, optimize the drum length-diameter raido, drum and structure
of drum taper parts.
2, According to the operating condition’s characteristics of material, optimize the drum length-diameter raido, drum and structure
of drum taper parts.
Advantages and features
* Reduction of beer evaporation
* Gentle processing of beer
* Yeast cake with a high dry substance content
* Lower wastewater loads
* Easy to integrate into existing processes
* Gentle processing of beer
* Yeast cake with a high dry substance content
* Lower wastewater loads
* Easy to integrate into existing processes
Scope of application:
Application fields
1. Food
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.
2. Environmental protection
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
3. Petroleum and chemical industry
A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.
Other fields
Pharmaceutical intermediates,salts and manures,etc.
Specification
If interested, please contact me!
Email:owen@lnszjx.com
whatsapp: 8618524740953
