QFW-2500VI Computer Control FRP Pipe Machine RPM Pipe Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiberglass GRP Molded Grating Machine Manufacturer, FRP Grating Machine, FRP Grating Molded MachineNegotiableMOQ: 1 -
FRP Grating Machine, FRP Molded Grating Machine, FRP Grating Production LineNegotiableMOQ: 1
-
Fiberglass Grating Making Machine Price, Fiberglass Grating Machine, FRP Grating Molded MachineNegotiableMOQ: 1
-
GRP Molded Grating Machine, FRP Grating Machine, Fiberglass Grating Molded MachineNegotiableMOQ: 1
-
High Strength Fiberglass 30x30x30 Frp Grating MachineNegotiableMOQ: 1
Product Description
Whole set of computer control filament winding machine and auxillary equipments
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
QFW-4000 FRP/GRP pipe filament winding machine
1.1 The main parameters
a. The total power: 193.6kw
b. The maximum diameter can be manufactured: DN4000mm
c. The effective length of the pipe: 12000mm
d. The productivity: 1000kg/h
e. The baking board’s temperature of curing station: 105~160 °C
1.2 it consists of six components,
1.2.1 Inner liner-making machine
1.2.2 computer control mortar-adding fialment winding machine
1.2.3 curing station
1.2.4 Trimming machine
1.2.5 Demolding machine
1.2.6 Resin mix station
Advantage of Mortar Pipe Prodction Line
We adopted the Taiwan's advanced STD industrial control computer for its controlling center. After the parameter of the wound products being inputted the computer, the design of the linearity for winding of the product will be finished automatically, then controlling the combined movements between the mound rolling speed and the running of the carriage.
The pipes produced by the adding mortar-winding machine can decrease the cost and improve the stiffness through adding the mortar without bad influences upon the leak-proof layer and the structure layer. The RPM pipe's cost has decreased 40% than the common FRP pipe; the stiffness has been improved greatly. It has many advantages, such as lightweight, anti-corrosion, lower roughness and proper price. It can be widely used in water supply and drainage, agricultural irrigation, petrochemical industry, ocean development, sewage treatment, etc. The production line annual capacity is 5000t, and reasonable structures, latest design, operate easily, high-grade automation are its characteristics. It got the good valuation from the clients.
Main Technical Data of FRP Pipe Filament Winding Production Line
1) The total power: 193.6kw
2) The maximum diameter can be manufactured: DN4000mm
3) The effective length of the pipe: 12000mm
4) The productivity: 1000kg/h
5) The baking board's temperature of curing station: 105~160 ℃
6) The maxi speed of conveying roving: 90m/min
7) The maxi width of roving sheet: 200mm
8) The maxi speed of sand conveyance: 100kg/min
9) The maxi mould-unloading force: 83t
10) The rated drawing force of the capstan: 5t
11) The rated lifting force of the supporting pipe trolley: 40t
12) The rated pressure of the hydraulic system: 16Mpa
13) The central height of mould-unloading machine: 2000mm
14) The central height of the other single machine: 1500mm
Note: If the indoor temperature is above 15℃ in winter, the baking board can be power-off, then the total power is 97.6kw

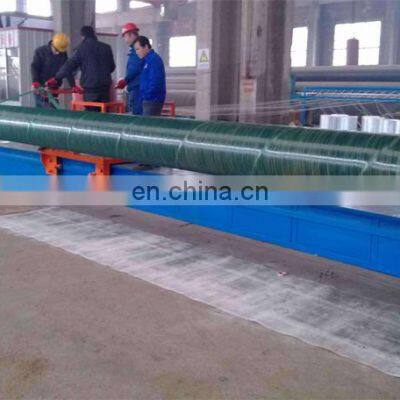

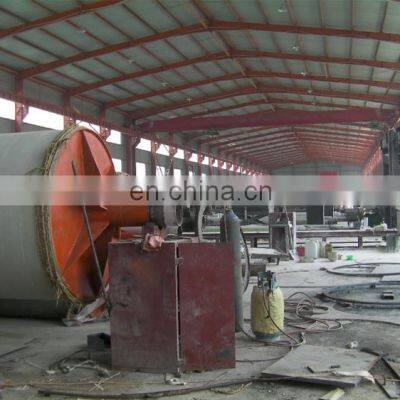

Product Photos
1. Inner liner-making machine Inner liner-making machine mainly consists of following parts:
1) main shaft transmmision system
2)Working platform
3) Electric control system
4) Front & rear support frame
5) Hydraulic pumping station

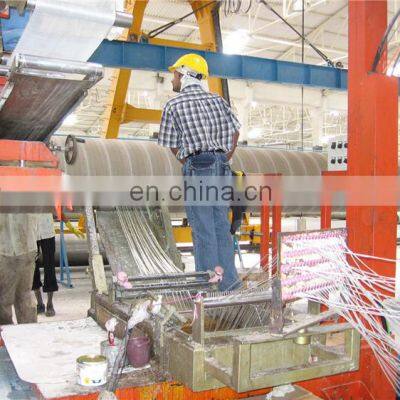

2. Computer control mortar-adding winding machine
Computer control mortar-adding winding machine mainly consist of:
1) Main shaft transmission system
2) Working plateform
3) Mortar-adding trolley and transmission system
4) Roving-guide frame
5) Extrusion & press device
3. Curing station
Curing station mainly consist of:
1) Main shaft transmission system
2) Front & rear support frames
3) Electric control system
4) Heating device
4. Groove-making & end-cutting machine
Groove-making & end-cutting machine mainly consist of:
1) Main shaft transmmision system
2) Front & rear support frame
3) End cutting device
4) Electric control system
5) Dust-remover
5. Demoulding machine
Demoulding machine mainly consist of:
1) Gantry
2) Demoulding trolley
3) Pipe support trolley
4) Mould-dragging system
5) Electric control system
6. Resin mix station
Resin mix station mainly consist of:
1) Underground storage tank
2) Mix tank
3) Resin transfer system
4) Electric control system
7. Auxillary equipments - Hydrostatic test machine
Specification
Model number |
Control |
Maxi diameter (mm) |
Maxi length
(mm)
|
Maxi speed of sand conveyance (kg/min) |
Total power (kw） |
Maxi width of roving sheet (mm) |
Productivity (kg/h) |
QFW-2500VI |
computer |
2500 |
12000 |
100 |
193.6 |
200 |
1000 |
Packing & Delivery
Sea packing
1. Choose the appropriate container according to the customer's needs.
2. Molds that exceed the container size need to be shipped separately.
3. The exact package size, please tell me the specific size, I will quote for you!
Customers and Certificates
Company Profile
Hengshui Aoliande Trade Co., Ltd. is professional company which to market & sell FRP Pipe, FRP storage tank, FRP molded products, FRP pultrused products and FRP production machines, through the continuous development and introduction of professionality and technology, the company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 management system certification, now we have 50+ staff, annual sales of glass fiber reinforced plastic series products achieved 5,000,000 USD, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Egypt etc, and won the support and trust from new & old customers.
Major products:
FRP vessel and chemical equipment in sets;
FRP high, medium & low pressure pipe
FRP septic tank
FRP molded & pultrused products
Electrolytic cell
S/F, F/F oli storage tank
Whole set of FRP prodcution machines
Hengshui Aoliande Trade Co., Ltd. not only have ability to sell & supply products, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.
Main application:
Urban water supply and drainage
Desalination of sea water
Chemical industry
Metallurygy
Brewing
Electric power
Oil storing
Sewage treatment
Building
Municipal works
Highway facilities
FAQ
1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost 10 years, and we have better service of overseas customers. Welcome to send your inquiry!
2. Q: How about the Delivery time?
A: Normally, 10-15 days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!
3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
4. Q: What is about the payment terms.
A: Basically, the payment terms are paypal, T/T, L/C at sight. Western Union, Alipay.
5. Q: Can you do OEM for me?
A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.
