FRP Fiberglass Filament Pipe Winding Machine With Automatic CNC Controlled
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRP Pultrusion Machine for Glass Fiber Reinforced PlasticsNegotiableMOQ: 1 -
Factory Supply Carbon Fiber Pultrusion Machine Fiberglass MachineNegotiableMOQ: 1
-
China Factory Supply Fiberglass Rebar Machine, Basalt Rebar Production LineNegotiableMOQ: 1
-
Automatic FRP GRP Pipe Production Line, Pipe Winding MachineNegotiableMOQ: 1
-
High Quality Automatic FRP Sheet Pultrusion Machine for Frp RebarNegotiableMOQ: 1
FRP GRP Water Pipe Winding Machine Filament Winder Equipment
Product Information
FRP pipe winding machine
Computer-controlled fiber winding sand pipe production line consists of the lining machine, computer-controlled sand winding machine, curing station, dressing machine, stripping machine and resin mixing station six parts. The computer-controlled sand-winding machine control center used the advanced industrial computer manufactured in Taiwan, China, just enter the parameters of the wound product, the computer can automatically complete the design of product winding wire, and then control the speed of the mold and the car to walk compound movement. Sand winding is not affected in ordinary glass pipe anti-seepage layer and winding reinforcement layer case, through the application of quartz sand and resin play that is to reduce costs and increase the role of stiffness. Produced products compared with ordinary glass fiber reinforced plastic pipe, the cost can be reduced by 40%, a substantial increase in rigidity, with light weight, corrosion resistance, internal resistance coefficient is small, low overall cost advantages, can be widely used in urban water supply and drainage, agriculture Irrigation, petrochemicals, marine development, sewage treatment and other fields, the entire production line with an annual output of up to 5000t. The production line with a reasonable structure, innovative design, easy operation, high degree of automation features, praised by the majority of users.
QFW-2500VI main specifications:
1. Installed capacity: 193.6KW
2. The largest diameter of the production pipe: Φ2500mm
3. effective length of the production pipeline: 12000mm
4. production capacity: 1000kg / h
5. curing station heating device temperature: 105 ℃ -160 ℃
6. maximum speed: 90m / min
7. The maximum width of yarn sheet: 200mm
8. Yarn feeding speed: 100kg / min
9. Nominal release force: 83t
10. Winch rated pulling force: 5t
11. Trolley Rated Torque Weight: 40t
12. Hydraulic Pump Station Rated working pressure: 16MPa
13. Stripping machine center height: 2000mm
14. Other stand-alone center height: 1500mm
FW-4000III main specifications:
1. Winding diameter range: Φ600-Φ4000mm
2. The maximum winding length: 12m
3. Winding angle: 45 ° -90 °
4. Installed capacity: 9.2KW
5. Positioning error: <1mm
6. The maximum width of yarn: 150mm
7. Production capacity: 500kg / h
Production Process

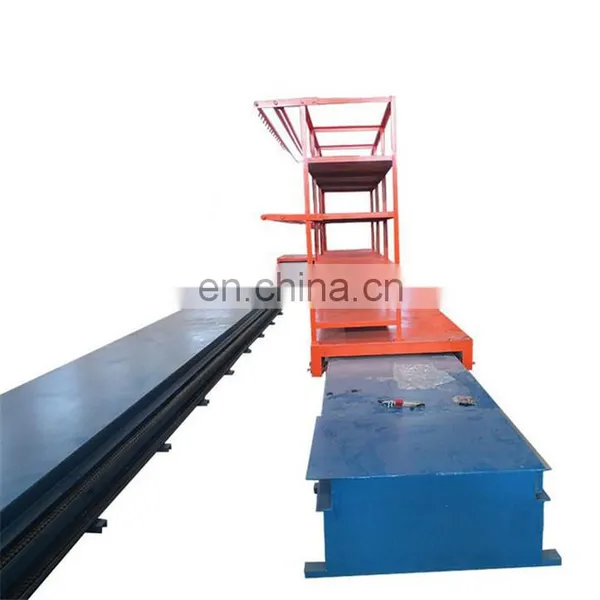

1. Inner liner-making machine
Inner liner-making machine mainly consists of following parts:
1) main shaft transmmision system
2) Working platform
3) Electric control system
4) Front & rear support frame
5) Hydraulic pumping station

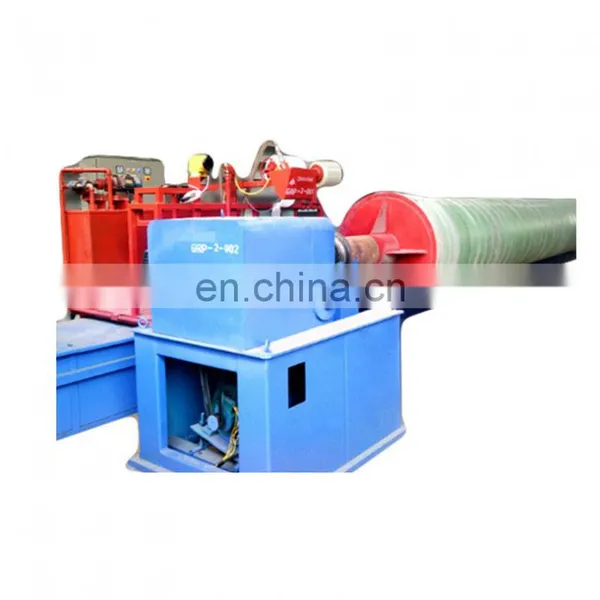

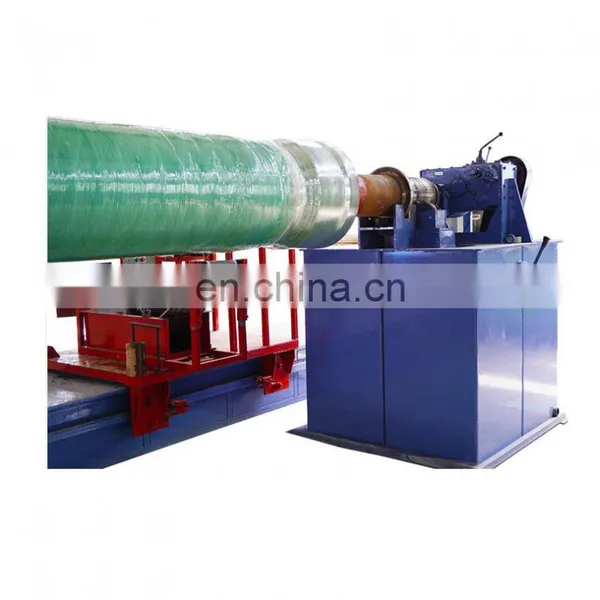

2. Computer control mortar-adding winding machine
Computer control mortar-adding winding machine mainly consist of:
1) Main shaft transmission system
2) Working plateform
3) Mortar-adding trolley and transmission system
4) Roving-guide frame
5) Extrusion & press device
1) Main shaft transmission system
2) Working plateform
3) Mortar-adding trolley and transmission system
4) Roving-guide frame
5) Extrusion & press device
3. Curing station
Curing station mainly consist of:
1) Main shaft transmission system
2) Front & rear support frames
3) Electric control system
4) Heating device
1) Main shaft transmission system
2) Front & rear support frames
3) Electric control system
4) Heating device
4. Groove-making & end-cutting machine
Groove-making & end-cutting machine mainly consist of:
1) Main shaft transmmision system
2) Front & rear support frame
3) End cutting device
4) Electric control system
5) Dust-remover
1) Main shaft transmmision system
2) Front & rear support frame
3) End cutting device
4) Electric control system
5) Dust-remover

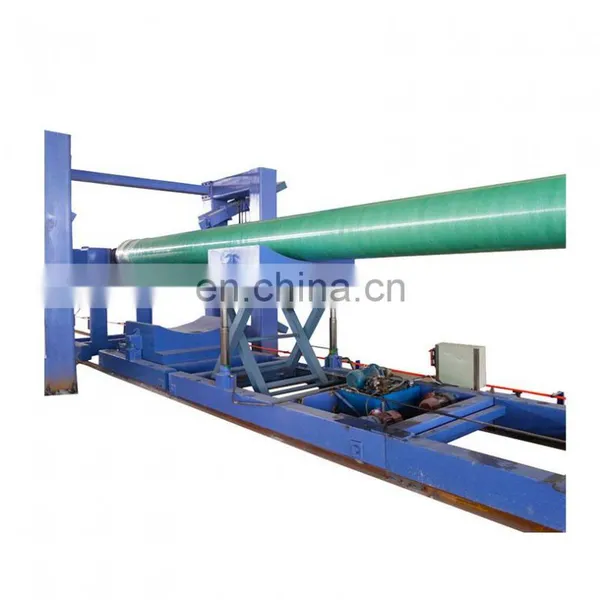

5. Demoulding machine
Demoulding machine mainly consist of:
1) Gantry

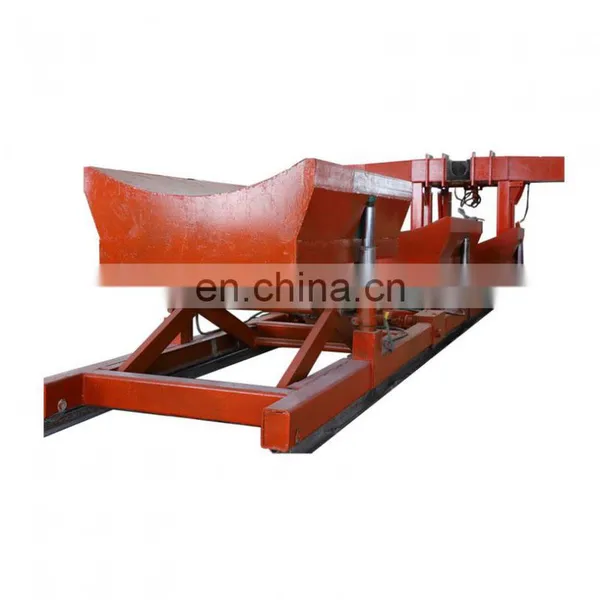

2) Demoulding trolley
3) Pipe support trolley
4) Mould-dragging system
5) Electric control system
1) Gantry
2) Demoulding trolley
3) Pipe support trolley
4) Mould-dragging system
5) Electric control system
6. Resin mix station
Resin mix station mainly consist of:
1) Underground storage tank
2) Mix tank
3) Resin transfer system
4) Electric control system
1) Underground storage tank
2) Mix tank
3) Resin transfer system
4) Electric control system
7. Auxillary equipments - Hydrostatic test machine
Certifications
Company Profile
Our company
Hengshui Aoliande trading co., LTD is a professional sales of FRP pipe, FRP tanks, FRP pultrusion profiles, FRP moulded products and complete sets of glass fiber reinforced plastic production equipment professional company, through the professional and technical development and the introduction, the company relies on advanced technology, exquisite craft, reliable quality and perfect service, and passed the ISO9001, ISO14001, OHSAS18001 management system certification, the company existing staff more than 50 people, annual sales of glass fiber reinforced plastic series of products 6000 tons, the products have been sold to all over the world,and other countries have won the support and trust of new and old customers.
Related Products
FAQ
Q:How do I know which is the right machine for me?
A:Just tell me what kind of product you want to make, and I will give suggestions according to it.
Q:How do I know the output range?
A:I will need size information (length, width, height) to calculate the weight of the product. And give suggestions due to the
products for you.
Q:How to get more information about the machine ?
A: Contact information is displayed below. I would give the answers ASAP.
A:Just tell me what kind of product you want to make, and I will give suggestions according to it.
Q:How do I know the output range?
A:I will need size information (length, width, height) to calculate the weight of the product. And give suggestions due to the
products for you.
Q:How to get more information about the machine ?
A: Contact information is displayed below. I would give the answers ASAP.
