Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Crusher > Portable Recycle Plastic Shredder Machine Plastic Crusher
Portable Recycle Plastic Shredder Machine Plastic Crusher
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Price Plastic Crusher Mini Shredder Crushing Plastic MachineNegotiableMOQ: 1 -
Light Weight PET Waste Shredder Plastic Price 2 kw Plastic ShredderNegotiableMOQ: 1
-
PET Waste Shredder Plastic Price Plastic Granuals Grinding Shredder For Hard Plastic LumpsNegotiableMOQ: 1
-
OEM Strong Force Functional pe pp Pet Pvc Recycle Waste Plastic Crusher Machine For PP Plastic BottlesNegotiableMOQ: 1
-
PET Plastic Bottle Crusher Machine For Wasting PipesNegotiableMOQ: 1
Product Description

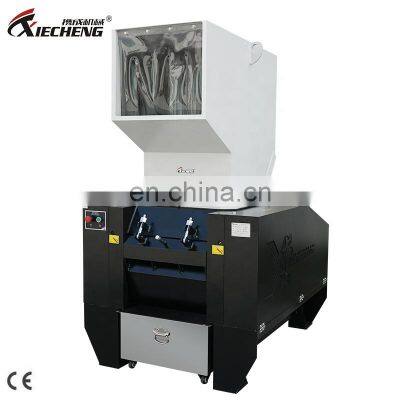

GB Series Plastic Crusher
Special patent front-positioning blade design especially for large hallow material like bottles and barrels, the rotary blades and stationary blades are settled with a V-shaped angle leading the crushing subject into rotary center, with large cutting angle, excellent efficiency, even flake output and less powder occurred.
Product Specifications
Model |
XC-GB20HP |
XC-GB30HP |
XC-GB50HP |
XC-GB75HP |
||
Grinding Chamber(mm) |
530*400 |
530*400 |
830*520 |
1100*740 |
||
Power |
KW |
15 |
22 |
37.5 |
55 |
|
HP |
20 |
30 |
50 |
75 |
||
Grinding Capacity(KG/H) |
350-550 |
400-550 |
750-1080 |
800-1200 |
||
Stationary Cutter |
2 |
2 |
4 |
4 |
||
Rotary Cutter |
3 |
3 |
6 |
9 |
||
Mesh Size(mm) |
Φ14 |
Φ14 |
Φ16 |
Φ16 |
||
Barrel Volume(L) |
30L |
30L |
100L |
200L |
||
Barrel Size(mm) |
Φ330*490 |
Φ330*490 |
Φ420*780 |
Φ600*1000 |
||
Dimension (L*W*H*H1 mm) |
1430*1120*1930*1458 |
1430*1120*1930*1458 |
2000*1610*2690*2030 |
2450*1940*3260*2510 |
||
If you want more sizes, please contact us for details
Upgraded Design
GB SERIES PLASTIC CRUSHER
Product Details
01 New Cutter Design

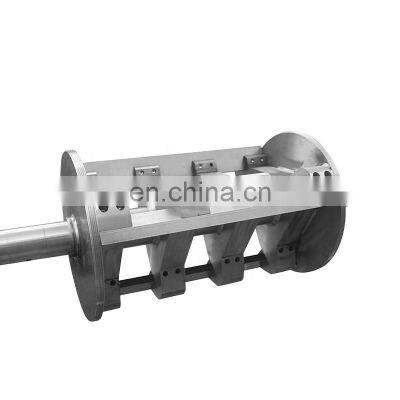

GB series updates cutter design. The rotary blades and stationary blades are settled as a V-shaped angle. This angle can make better cutting. The granules are evenly cut and less powder is caused.
02 Durable Cutter
▪ Blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
▪ Adopted hexagon socket screw installation way of the blades and strong wear resistance.
▪ Material: CR12MOV, hardness in 57-59°

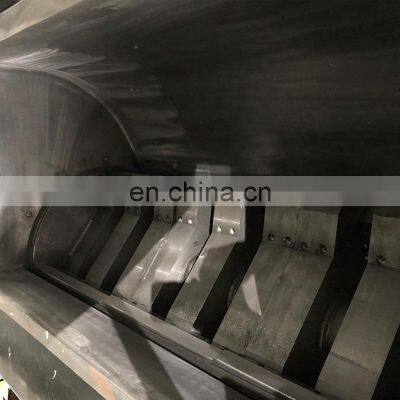

The chamber is made of harder steel by CNC processed with high hardness, good abrasion resistance, long durability and easy maintenance;
Chamber wall thickness 20~40mm.
▪ SIEMENS electrical parts ensures stable running and liability of the machine；
▪ Optional Deluxe CE: CE wiring, CE safety electrical devices.
▪ Optional Deluxe CE: CE wiring, CE safety electrical devices.
Feeding hopper with double-layered on 4 sides and the inner layer is made of stainless steel with insulation material in between to provide good noise handling.
The motor adopts all copper wire motor，long life and durable.
Blade Production Process
Application Range
GB series granulator is especially efficient for hollow barrel, PET barrel, paint barrel, chemical barrel and so on.
Best Selling
About Us
Company Profile
In 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions.

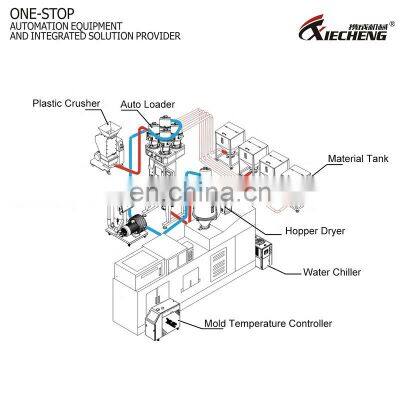

Authenticated by IS09001, XIECHENG also successfully established the “6+1+C” full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers’ specific demands.
