Waterproof and durable aluminum alloy veneer for building exterior wall

Name: Waterproof and durable aluminum alloy veneer for building exterior wall
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Cheap glass curtain wall price Mashrabiya curtain wall

When designing curtain wall, our company's designers choose the standard window type as much as possible according to the different needs of the project, so as to facilitate the design, production, construction and reduce the product cost.

At the same time, the design of the window type should consider different regions, environments and Building type, and meet the physical performance requirements of door and window wind pressure resistance, water tightness, air tightness and insulation performance.

Product name	Aluminum exterior glass curtain wall
Aluminum profile	1,6063-T5/T6 grade of thermal break aluminum profile
Aluminum profile		2, 6063-T5/T6 grade of non thermal break aluminum profile
Glass Type	1,Tempered Glass:5mm-12mm tempered glass with clear or tinted
		2,Double glass: 5mm+6A/9A/12A+5MM,6MM+6A/9A/12A+6MM ect.
		3,Laminated glass: 5mm+0.38/0.76/1.14pvb+5mm,6mm+0.38/0.76/1.14pvb+6mm ect.
		4,Elements: low-e,tinted,reflective & obscure/frosted to meet different U value and SHGC
Glass Color	Clear,white,bronze,blue,gray, green, dark green, F-green, sapphire blue, ocean blue, bron
Application	Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements.
Accessories	Glass Silicone, Glazing Rubber ,Stainless steel accessories.

PRODUCT FEATURES

System performance

1.Sound resistance Rw to 48 dB 2.Wind and water tightness to 1000 Pa (depending on design) 3.Anti-burglary 4.High thermal insulation (depending on design) 5.Unique glazing sizes from 6 through 50mm 6.High glass weights to 300KG 7.View width 60mm 8.Different cover caps on the outside 9.Inside and outside color as desired

System characteristics

Curtain walls have the primary purpose of keeping air and water out of the building, essentially acting as both a buffer and an insulator.

Unlike is continuous windows, which are smaller units and can rely to a high degree on sill flashings to capture frame corner leakage, curtain walls cover large expanses of wall without sill flashings at each glazed opening.

REXI specially patented curtain wall system water penetration resistance high to 1000 Pa.

INTRODUCTION OF DIFFERENT TYPES OF CURTAIN WALL

Invisible aluminum frame glass curtain wall

Glass is directly connected with the skeleton and there is no exposed frame or window frame on the outside, making the glass curtain wall more novel and beautiful in appearance.

Visible aIuminum frame glass curtain wall

The glass of the open-frame glass curtain wall is inlaid in an aluminum frame to form a curtain wall member with an aluminum frame on four sides. The curtain wall member is inlaid on the beam and the column to form the exposed beam column.

ACP /Aluminum panel curtain wall

The aluminum panel curtain wall has rich color and various appearance shapes. And can be perfectly combined with glass curtain wall materials.It is perfect appearance and excellent quality make it popular with owners. Low maintenance costs. At present, most of the curtain wall aluminum plates used in China are composite aluminum plates and aluminum alloy plates.

Spider System glass curtain

The point-supported glass curtain wall is composed of decorative surface glass and the supporting structure of the connection module.

According to the supporting structure, it is divided into glass rib point-supported glass curtain wall, steel structure point-supported glass curtain wall, steel rod point-supported glass curtain wall and steel cable point-supported glass curtain wall.

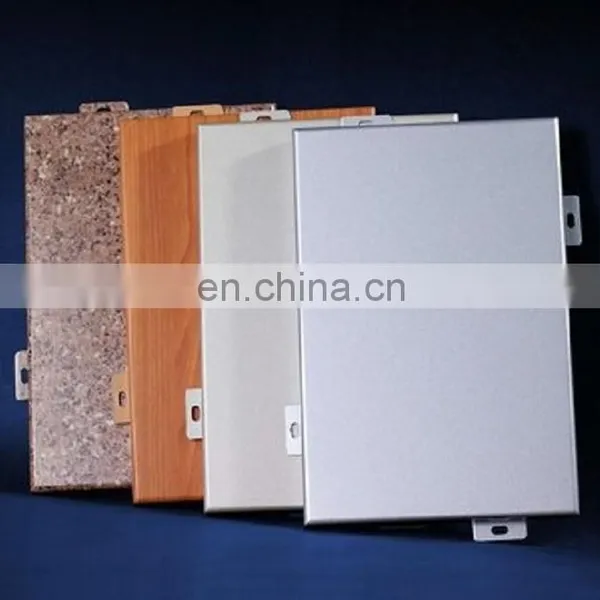

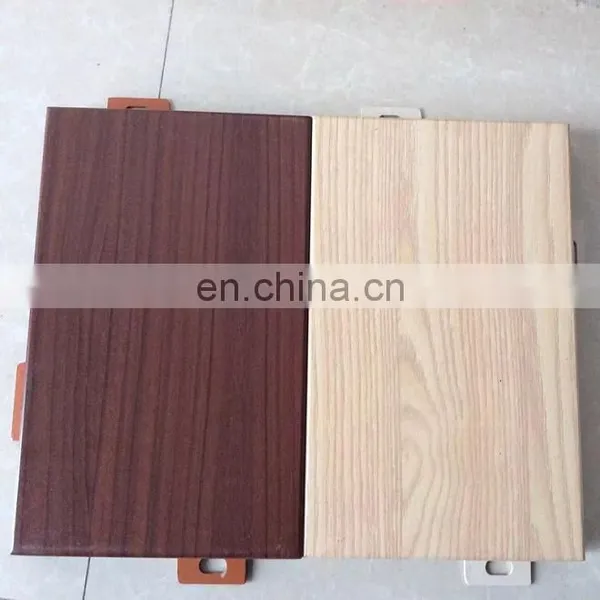

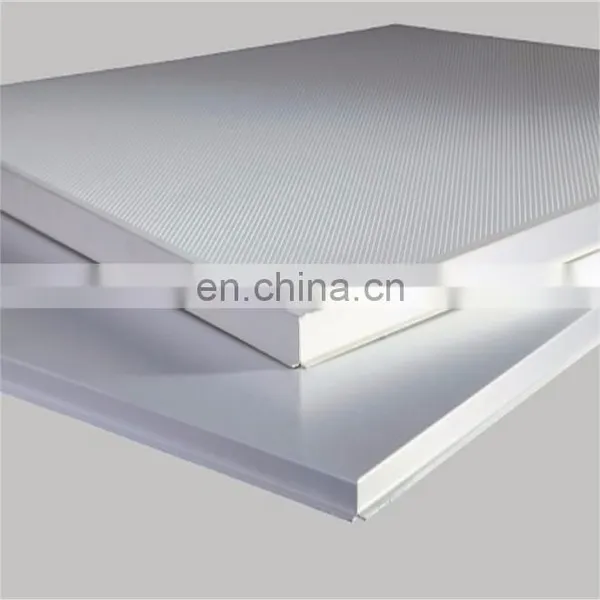

Detailed Images

Our Services & Strength

We have high-quality design and development personnel, advanced production and processing equipment, adhering to the quality first, integrity cooperation business philosophy, focus on providing quality products and high-end services to customers around the world.

Why choose us?
1.We are a manufacturer with over 20 years experiences in construction products and a high-quality supplier for many global companies.
2.We are one of the leading manufacturer in China with 20,000 square meters factory and our products can meet all the requirements of quality.
3.We have the best price,quality and service.
4.100% QC inspection before shipment.
5.We are providing over 5000 million dollars construction products per year to the companies throughout the globe.

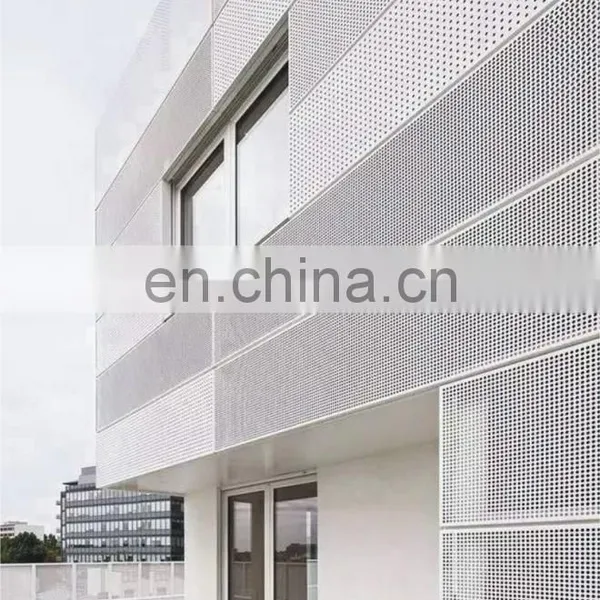

Applications

FAQ

Q:Are you manufacturer or trading company?
A:We are manufacturer.
Q: Can you accept customized design?
A:Yes. We can customized design according to your request. We have professional design team.
Q:What are your main products?
A: The main products we produced is glass curtain wall,metal board curtain wall,stone curtain wall,composite curtain wall,exposed frame curtain wall,semi-hidden frame curtain wall.we can customize as per customers’ request.
Q: How to get a quotation?
A: We need some information, such as size, thickness, glass drawing, printing color,quantity, edge,The more detailed, the better.
Q: Can we use our own design?
A: Yes, we will according to your local climate and give you our suggestion. Then you can get best details and reasonable price you want. After we confirm everything, we will design curtain wall or design windows for your needs.More importantly, We are excellent designers,can provide free design.
