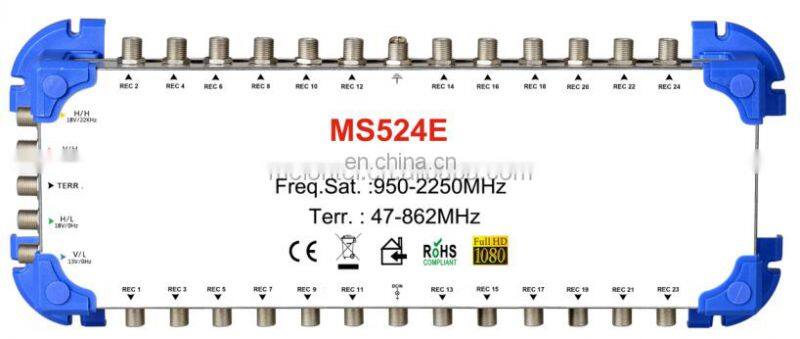

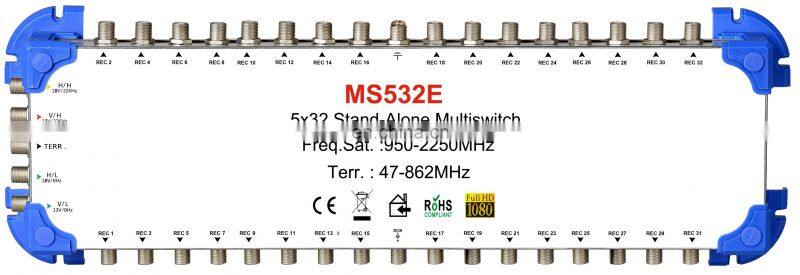

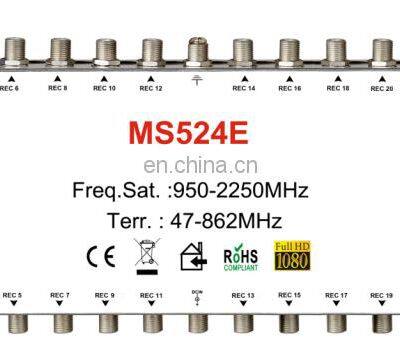

MT-7501 24 Multiswitch 5in Satellite Multiswitch System Sistema SMATV 5x32 Salida Para CATV
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MT-7902 SYWV75-5 Monitoring Cable RG6 Coaxial Cable for CATVNegotiableMOQ: 1 -
MT-7933 HYY 2 Pair 3 Pair 2*2*0.5 Outdoor Cat3 Telephone CableNegotiableMOQ: 1
-
MT-7932 HYV 10 Pair 16 Pair 20 Pair 32 Pair 50 Pair 100 Pair 25*2*0.4 Intdoor Cat3 Telephone CableNegotiableMOQ: 1
-
MT-7931 HYAT 10 Pair 16 Pair 20 Pair 32 Pair 50 Pair 100 Pair 100*2*0.4 Underground Outdoor Jelly Filled Telephone CableNegotiableMOQ: 1
-
MT-7930 HYAC 4 Pair 10 Pair 16 Pair 20 Pair 32 Pair 50 Pair 100 Pair 10*2*0.5 Outdoor Telephone Cable With Steel MessengerNegotiableMOQ: 1
Products Description
Model |
Unit |
32 type |
||||
Inputs |
/ |
4 Sat.,1 Terr. |
||||
Outputs/Subscribers |
/ |
32 |
||||
Frequency |
Sat. |
MHz |
950-2250 |
|||
Terr. |
MHz |
47-862(ODM:5-862) |
||||
Sat.loss |
dB |
4 |
||||
Terr.Loss |
dB |
4 |
||||
Switching Isolation |
dB |
28 |
||||
Isolation (Sat.)(out-out) |
dB |
30 |
||||
Isolation (Terr.)(out-out) |
dB |
25 |
||||
Rejection |
dB |
28 |
||||
Return Loss |
In |
dB |
11 |
|||
Out |
dB |
8 |
||||
Sat.Output level(IMA3-35dB)(Tap) |
dBµV |
100 |
||||
Terr.Output Level(IMA3-35dB)(Tap) |
dBµV |
85 |
||||
Power Supply |
Vac/Hz |
90-260/47-63 |
||||
Max.Current to LNB |
mA |
800 |
||||
Ambient temperature |
℃ |
(-20)-(+50) |
||||
Dimension |
MM |
217*344*50 |
||||
Model |
Unit |
24 type |
||||
Inputs |
/ |
4 Sat.,1 Terr. |
||||
Outputs/Subscribers |
/ |
24 |
||||
Frequency |
Sat. |
MHz |
950-2250 |
|||
Terr. |
MHz |
47-862(ODM:5-862) |
||||
Sat.loss |
dB |
3 |
||||
Terr.Loss |
dB |
3 |
||||
Switching Isolation |
dB |
28 |
||||
Isolation (Sat.)(out-out) |
dB |
30 |
||||
Isolation (Terr.)(out-out) |
dB |
25 |
||||
Rejection |
dB |
28 |
||||
Return Loss |
In |
dB |
11 |
|||
Out |
dB |
8 |
||||
Sat.Output level(IMA3-35dB)(Tap) |
dBµV |
100 |
||||
Terr.Output Level(IMA3-35dB)(Tap) |
dBµV |
86 |
||||
Power Supply |
Vac/Hz |
90-260/47-63 |
||||
Max.Current to LNB |
mA |
800 |
||||
Ambient temperature |
℃ |
(-20)-(+50) |
||||
Dimension |
MM |
217*280*50 |
||||
