Help Center1050 Type Synthetic Resin Tile is Customized by Manufacturers With Various Colors and is Exported to Africa
Related Products
-
Synthetic Resin Tiles in Line With International Standards Are Suitable for Climate All Over the WorldCNY 35 - 55MOQ: 5000 Meters -
Directly Supplied by Resin Tile Manufacturers in Southeast Asia - Yunnan Yangbiao Building MaterialsCNY 25 - 45MOQ: 1000 Meters
-
The Special Transparent Tile for Roof Daylighting Has Complete Specifications and is Directly Supplied by the ManufacturerCNY 35 - 45MOQ: 5000 Meters
-
A Variety of International Specifications of Transparent Daylighting Tiles, Large Quantity, Can Provide Customized ServicesCNY 40 - 60MOQ: 5000 Meters
-
Asa Roofing Sheet Insulation Synthetic Resin Tile Impact-Resistant Roof Tiles for House & WarehouseUS$ 2.02 - 2.2MOQ: 25 Kilograms
Key installation procedures

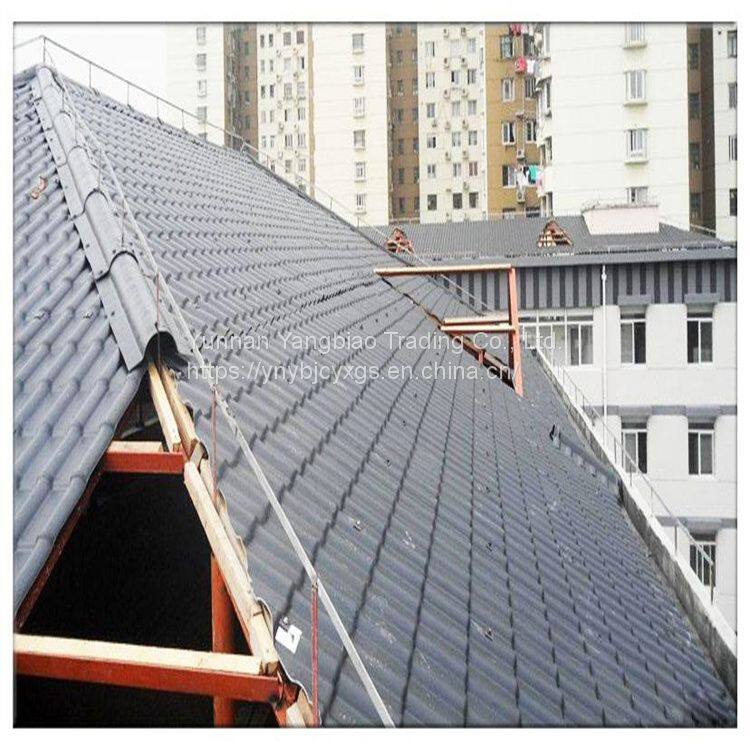

Square tube (60) can be used for purlin × forty × 3mm) or section steel (100 × fifty × twenty × 3mm) or anti-corrosion wood (60) × 40㎜)。
Purlin spacing is 660mm, arranged from bottom to top.
When installing the main tile, install it in the reverse direction according to the local wind direction. Lap a tile wave and carry out it on both sides at the same time.When installing the front ridge tile, cut off a section of the first ridge tile before installation.
The overlap of the positive and inclined ridge tiles shall be sawn flush. After the installation of the positive and inclined ridge tiles, the three-way tiles shall be installed.
Fixings are special accessories. When fixing, first drill with an electric drill, and the hole diameter shall be 2mm larger than the hook screw rod.
Self tapping screw with diameter of 6.3mm is recommended
2. Product specifications
Thickness: 3.0mm
Length: customized according to multiple of pitch
Color: jujube red, cyan gray, matte gray, dark green, ocean blue
Size: total width 880mm; Effective width 800mm;
Wave type: wave distance 160mm; Wave height 30mm; Pitch 219mm;
3. Scope of application

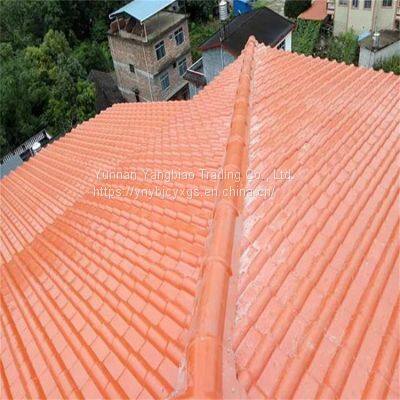

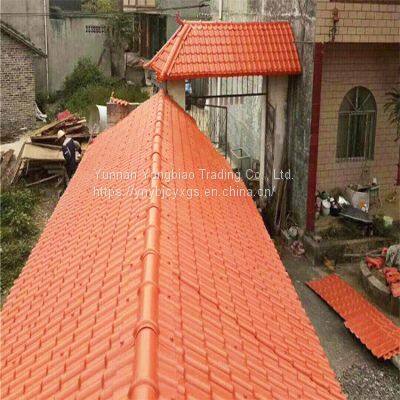

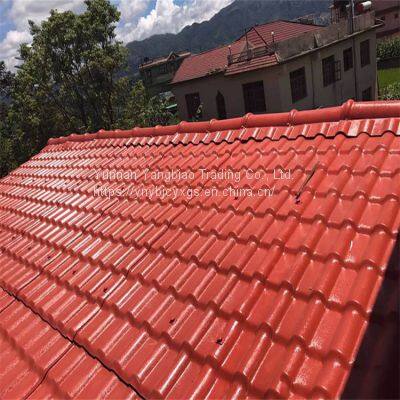

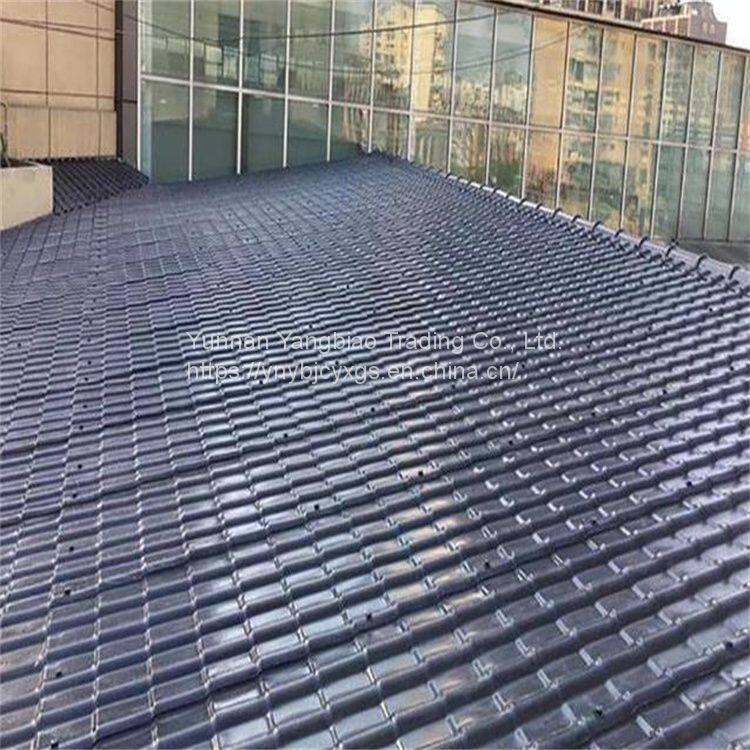

It is mainly used in "flat to slope" projects, mobile houses, high-grade villas, antique buildings, garden pavilions, factories, villa, real estate projects, canopy and sunshade, etc.
