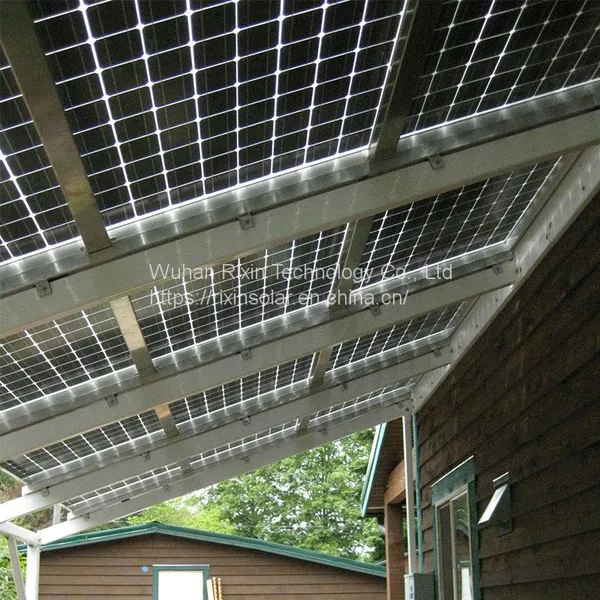

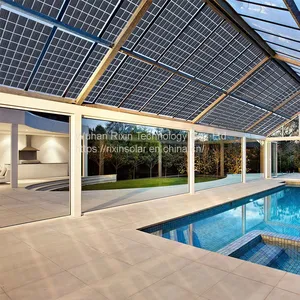

Help CenterRixin BIPV Solar Panels All Black Monocrystalline Silicon Solar Panel 6v 540w
Related Products
-
Rixin Half Cut BIPV Solar Panels Monocrystalline Bifacial Mono Perc Solar PanelUS$ 0.23 - 0.26MOQ: 1000 Watts -
Rixin High Quality Monocrystalline PV Module Wespoint 540 Watt Solar Panel With FrameUS$ 0.23 - 0.26MOQ: 1000 Watts
-
Rixin Customized Solar Panel 225w Polycrystalline Pv PanelUS$ 0.18 - 0.23MOQ: 1 Watt
-
Rixin BIPV Solar Panels Supply Monocrystalline Silicon PV Modules Customized Solar PanelUS$ 0.23 - 0.26MOQ: 1000 Watts
-
Rixin High Quality Monocrystalline PV Module Wespoint 540 Watt Solar Panel With FrameUS$ 0.23 - 0.26MOQ: 1000 Watts
Rixin High efficiency High Power Solar Panels Monocrystalline Solar Panel

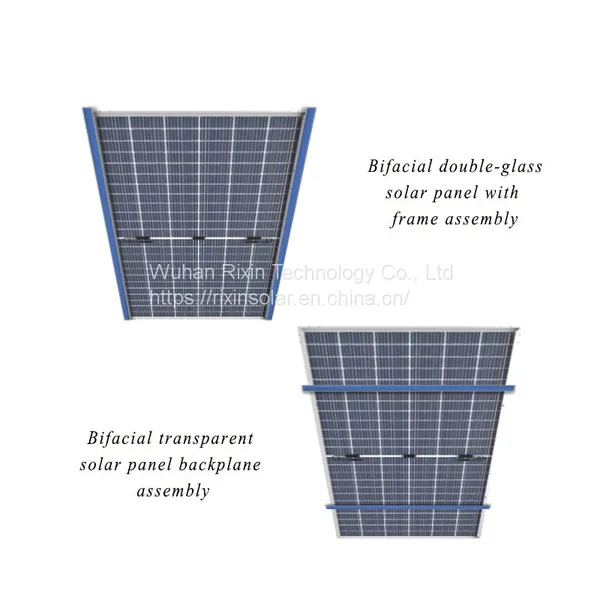

Mono Bifacial Double Glass Module DDG(P)530-550(k)
Model | DDG(P)530(k) | DDG(P)535(k) | DDG(P)540(k) | DDG(P)545(k) | DDG(P)550(k) |
Maximum power(Pm/Wp) | 530 | 535 | 540 | 545 | 550 |
Maximum power voltage(Vmp/V) | 41.64 | 41.87 | 42.09 | 42.32 | 42.54 |
Maximum power current(lmp/V) | 12.73 | 12.78 | 12.83 | 12.88 | 12.93 |
Open circuit voltage(Voc/V) | 49.65 | 49.78 | 49.91 | 50.12 | 50.34 |
Short circuit current(Isc/A) | 13.48 | 13.53 | 13.58 | 13.63 | 13.68 |
Module efficient(%) | 20.45 | 20.64 | 20.83 | 21.03 | 21.22 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Mechanical performance parameters
Cell Nos & array | Mono half-cut cells 144 pcs |
Cell size (mm) | 182*91 |
Glass thickness (mm) | 2.0 |
Frame | Anodized alaminum alloy |
Cable | 4m㎡ negetive300mm, positive300mm |
Module weight (kg) | 32.1 |
Module dimension (L*W*H)(mm) | 2285*1134*35mm |
Packing | 31pcs/pallet |
Quality parameters
Module working temperature range (℃) | -40~ +85 |
Power tolerance(W) | 0~+5 |
Maximum system voltage(V) | DC1500 |
System maximum protection current(A) | 25 |
NOCT(℃) | 45±2 |
Front/rear static loads(Pa) | 2400 / 5400 |
Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
Temperature coefficient of Voc | -0.3%/℃ |
Temperature coefficient of Isc | +0.06%/℃ |
Temperature coefficient of Pm | -0.39%/℃ |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5 | |
Quality warranty
12-year material & workmanship warranty
30-year linear power warranty
More details,please feel free to contact us.(Click it directly)
(Email: chengying@rixinsolar.com).
