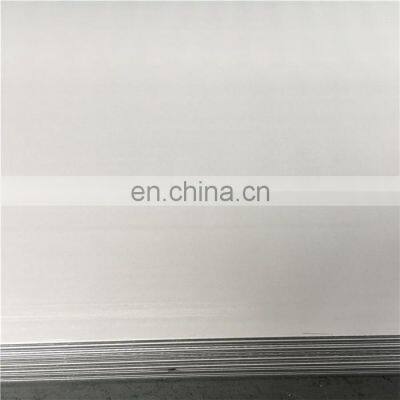

Factory Price Stainless Steel 2b Finish ss 304 201 403 Stainless Steel Sheet
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2010
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
430/201 Stainless Steel Sheets Plate/coil/circleNegotiableMOQ: 1 -
4mm 6mm 8mm 10mm Thick 4x8 Stainless Steel Sheet Price 201 202 304 316 Stainless Steel PlateNegotiableMOQ: 1
-
ASTM 16 Gauge/18 Gauge 304 Stainless Steel PlateNegotiableMOQ: 1
-
0.3-3.0mm AISI ASTM SS 410 420 Stainless Steel Plate Hot Rolled Cold Rolled 2Cr13 3Cr12 Sheet Price Per KgNegotiableMOQ: 1
-
ASTM de Acero Inoxidable 304 Precio Por Tonelada Stainless Steel Sheet PlateNegotiableMOQ: 1
Factory price stainless steel 2b finish ss 304 201 403 stainless steel sheet
|
Factory price stainless steel 2b finish ss 304 201 403 stainless steel sheet |
|
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy,stainless steel |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31; | |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g; | |
|
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188; | |
| Inconel Series: | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20; | |
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60; | |
| Nimonic: Nimonic 75/80A/90/A263 ; | |
| Specification |
Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
|
Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application |
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
| Packaging |
1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-25days or according to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders. |
CHEMICAL COMPOSITION:
| Element | Type 201 |
|---|---|
| Carbon | 0.15x |
| Manganese | 5.5 – 7.5 |
| Sulfur | 0.03X |
| Phosphorus | 0.060x |
| Silicon | 1.0 x |
| Chromium | 16 – 18 |
| Nickel | 3.5 -5.5 |
| Nitrogen | 0.25x |
MECHANICAL PROPERTIES:
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) |
|---|---|---|---|
| 201 Ann | 38 min. | 75 min. | 40% min. |
| 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. |
| 201 ½ Hard | 110 min. | 150 min. | 18.0 min. |
| 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. |
| 201 Full Hard | 145 min. | 185 min. | 9.0 min. |
PHYSICAL PROPERTIES:
| Density (lb./ in^2) @ RT | 0.283 | |
|---|---|---|
| Modulus of Elasticity in Tension (psi x 10^6) | 28.6 | |
| Specific Heat (BTU/o F/lb.) | 32 to 212 oF | 0.12 |
| Thermal Conductivity (BTU/hr/ft^2/ft) | 212oF | 9.4 |
| Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F) | 32 to 212oF | 8.7 |
| 32 to 600oF | 9.7 | |
| 32 to 1,000oF | 10.2 | |
| Electrical Resistivity (micro ohms – cm) | at 70oF | 69 |
| Melting Point Range (oF) | 2550/2650 | |
| Oxidation Resistance – Continuous Service(oF) | 1550 | |
| Oxidation Resistance – Intermittent Service(oF) | 1500 |
PROCESSING:
The annealing temperature for Type 201 is between 1850-2000°F. Rapid cooling through the carbide precipitation range (1500 – 800 o F) is necessary to keep the carbides in solution and prevent sensitization. Type 201 is not hardenable by thermal treatment; it is only hardenable by cold working.
| Stainless Steel Pipe/Tube | Stainless Steel Sheet/Plate/Coil | Stainless Steel Bar |
| Inconel Alloy | Nickel Alloy | Special Steel |
