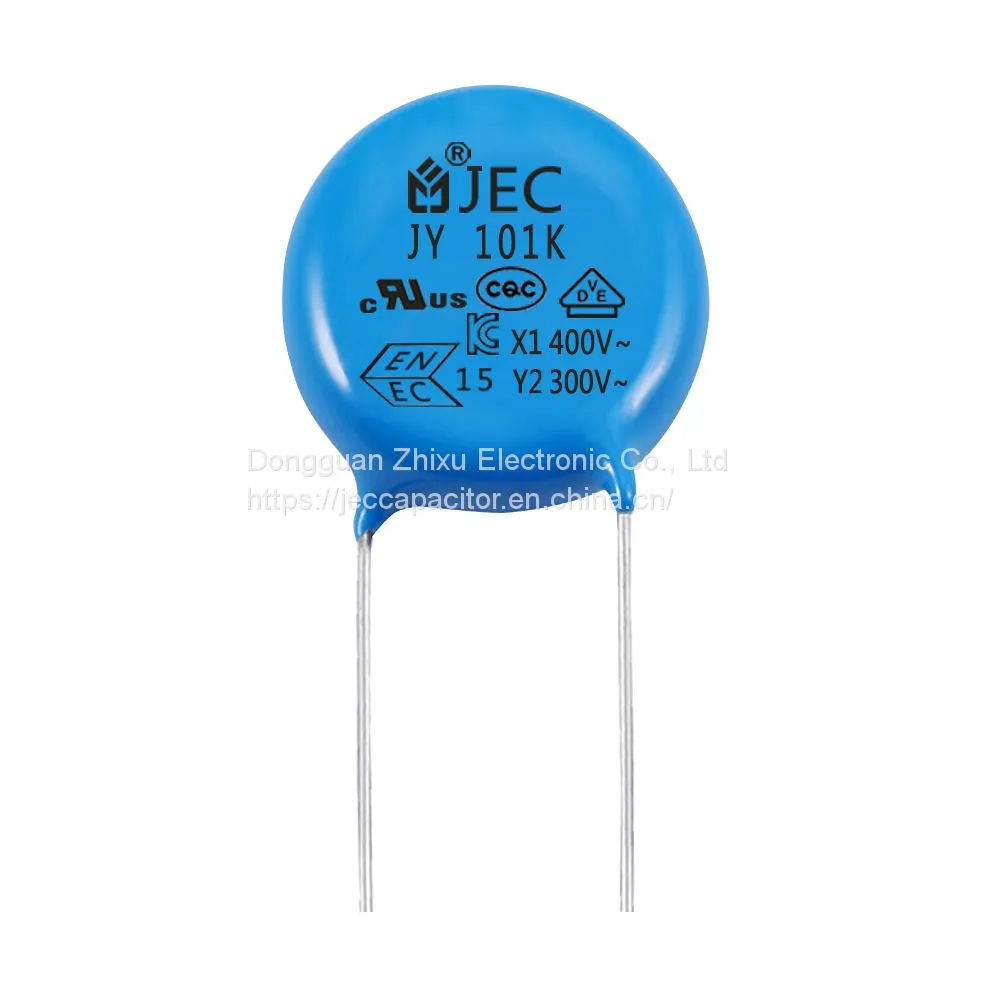

AC Line Filter Safety Y1 Y2 Capacitors

AC Line Filter Safety Y1 Y2 Capacitors thumbnail-1
AC Line Filter Safety Y1 Y2 Capacitors photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Ceramic Capacitor
Application:
Power
Contact Supplier Request Quote Chat Now
Dongguan Zhixu Electronic Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Ceramic Capacitor
Application Power
Rated Voltage 400V
Operating Temperature -40℃~125℃
Package Type Through Hole
Capacitance 10pF to 10000pF

Specification Reference Standard

IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384

Approved Monogram

VDE / ENEC / IEC / UL / CSA / KC / CQC

Subclass ; Rated Voltage(UR)

X1 / Y1 /Y2 ; 400VAC / 300VAC/500VAC

Capacitance Range

10pF to 10000pF

Voltage Proof

4000VAC for 1min

2000VAC for 1min

1800VAC for 1min

Capacitance Tolerance

Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃, 1Vrms, 1KHz

Dissipation Factor (tgδ)

Y5P,Y5U tgδ≤2.5% ;

Y5V tgδ≤5% measured at 25℃, 1Vrms, 1KHz

Insulation Resistance(IR)

IR≥10000MΩ,1min,100VDC

Operating Temperature

-40℃ to +85℃ ; -40℃ to +125℃

Temperature Characteristic

Y5P,Y5U,Y5V

Flame Retardant Epoxy

UL94-V0



Dongguan Zhixu Electronic Co., Ltd. (also JYH HSU(JEC)) factories are ISO-9000 and ISO-14000 certified. JEC X2, Y1, Y2 capacitors and varistors have passed these certifications:

CQC (China)

VDE (Germany)

CUL (America/Canada)

KC (South Korea)

ENEC (EU)

CB (International Electrotechnical Commission)


All of our capacitors are in line with the EU ROHS directives and REACH regulations.
