Fence Cargo Trailer

Fence Cargo Trailer photo-1

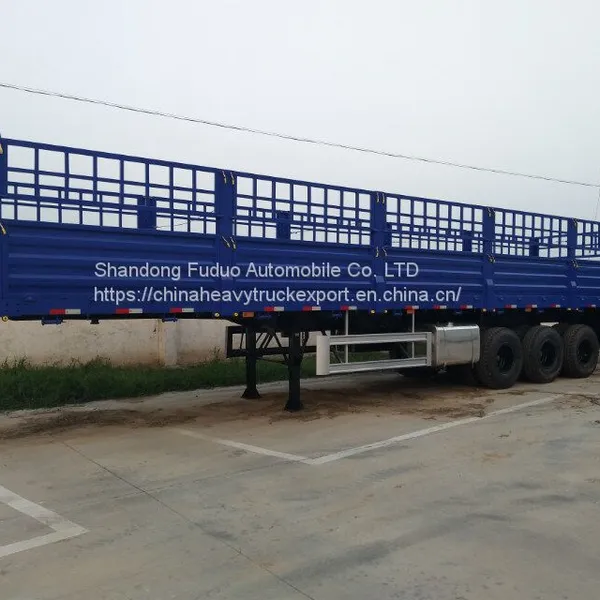

Fence Cargo Trailer photo-2

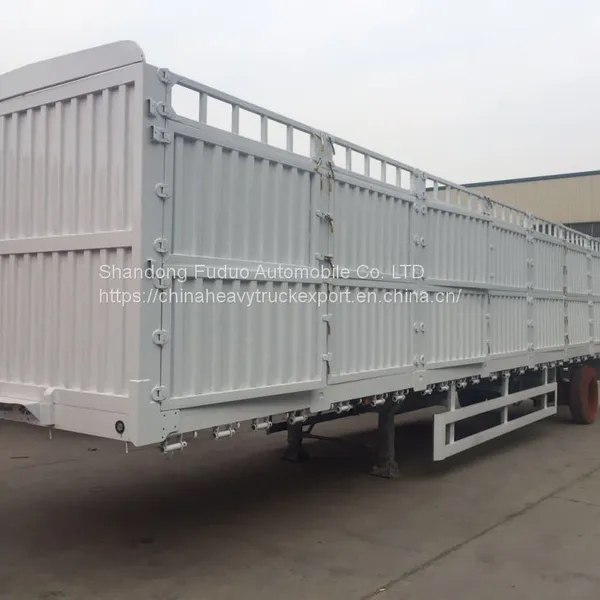

Fence Cargo Trailer photo-3

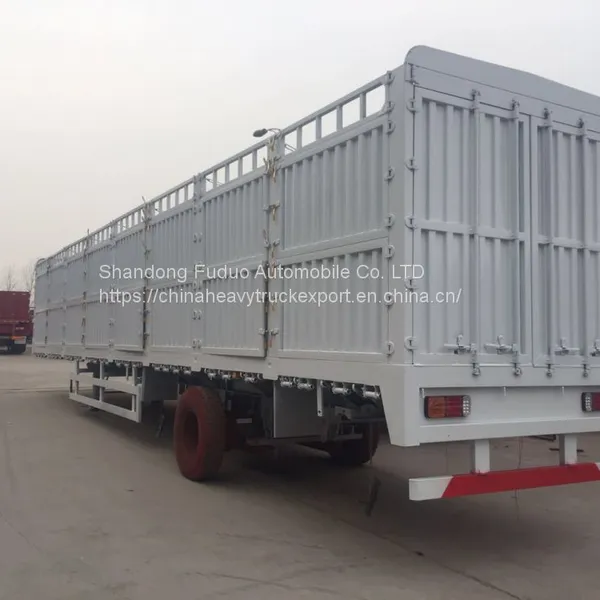

Fence Cargo Trailer photo-4
Negotiable MOQ: 1 Pound (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Aland Islands
Model Number:
13553158633
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
shandong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Aland Islands
Model Number 13553158633
Condition New
Transmission Type Automatic
Gross Vehicle Weight 50t
Fuel Type Diesel
Drive Wheel 6x2
Dimensions (L x W x H) (mm) 30*20*10
Tank Volume 10001 - 15000L
Horsepower 150 - 250hp
Storage Other

Fudeng 3 axles fence cargo trailer dimension can be customized,20 foot,40 foot and 45 foot, any size you need we all can design,if you don't have idea about it, our sales manager will recommend you the suitable type according to your transport need. This one is standard size 40 foot, it can meet most of customers needs. We can also according to your transport to design. This is our hot sale type of the fence cargo semi trailer, that is 3 axles fence cargo semi trailer. now, with the transporation become more and more large scale, more and more customers will choose and prefer fence cargo semi trailer to do transportation. The fence cargo semi trailer has muti-function for transportation, the fence cargo on the basic of the flatbed semi trailer, it also equip with twist lock to use to fixing the 20ft and 40ft container. At the same time, the different from the flatbed semi trailer is it equip with the side wall and fence, and them can be detached when you don't need them or loading the container. This kind of semi trailer can be customized according to your requirements, such as dimension , maxpayload and height of the side wall and fence. If you also want to load livestock, this fence cargo semi trailer also can help you to achieve that, we can help you design the livetstock fence semi trailer, and also can install the door on the fence trailer according to your need.

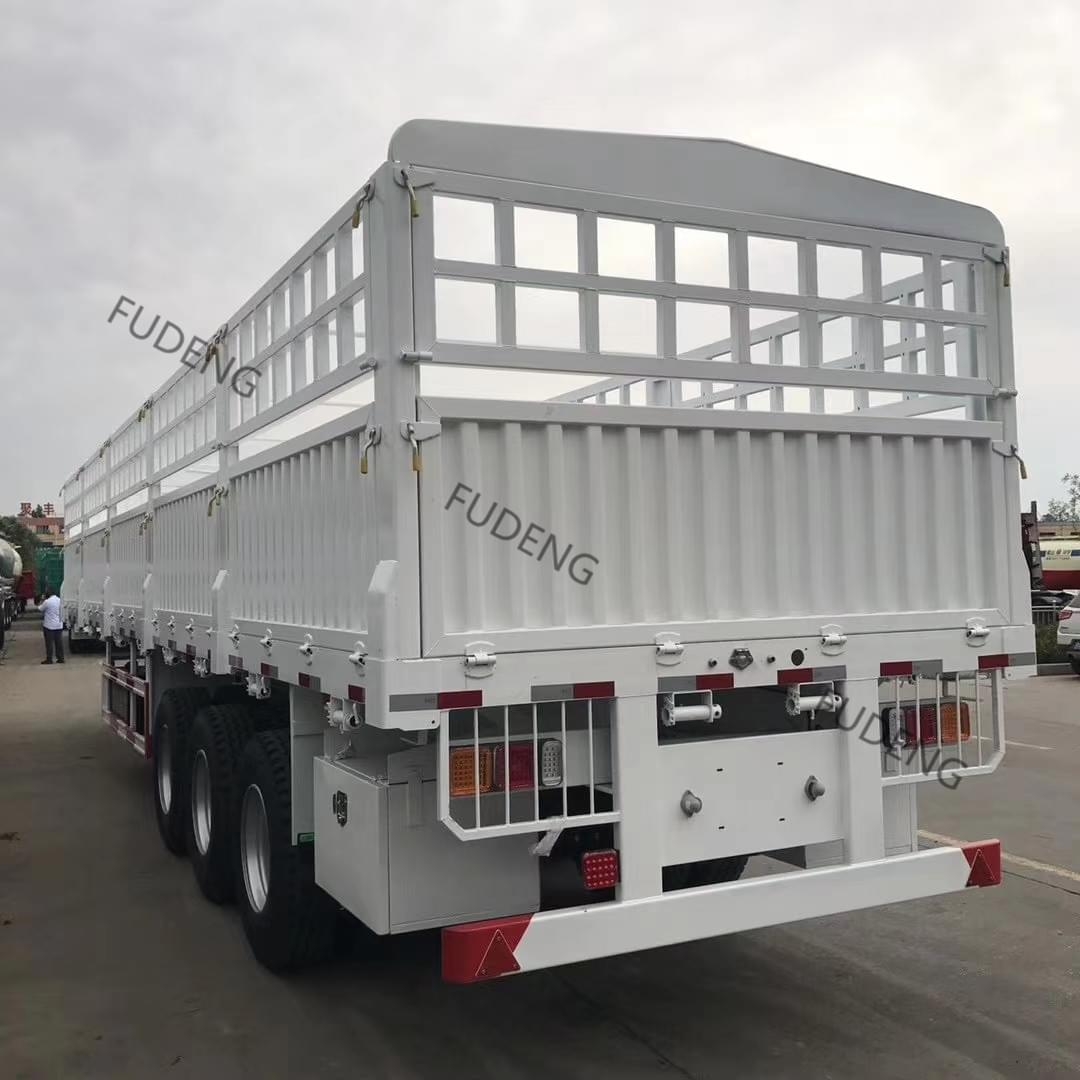

3 Axles Fence Cargo Trailer


Fudeng 3 axles fence cargo trailer use thickened mechanical suspension and the leaf spring is 90*16*10,which make it can adapt many bad roads.

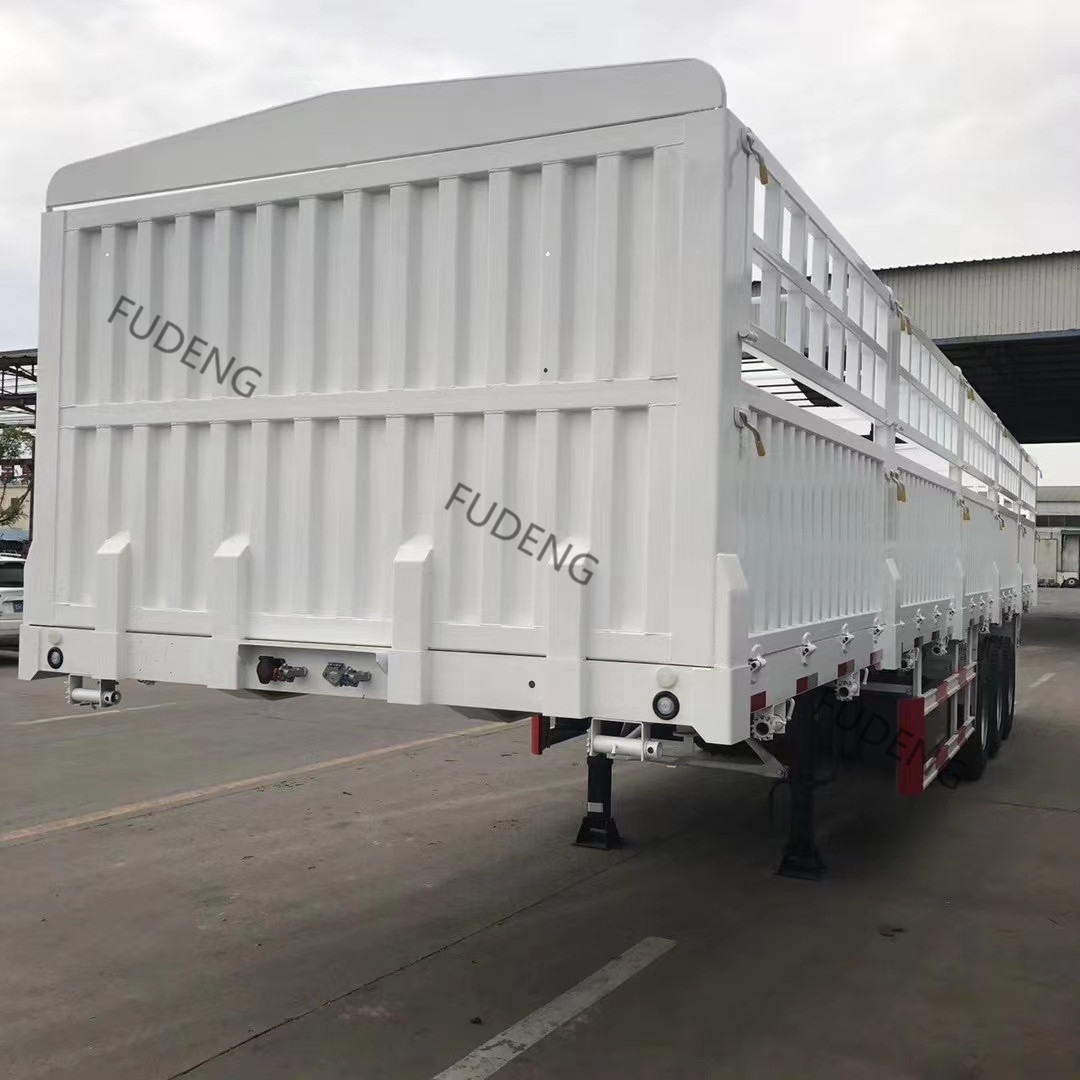

3 Axles Fence Cargo Trailer


Fudeng 3 axles bulk cargo trailer adapt 12R22.5 double tyres,the trailer have a good stable system for transport cargo .

3 Axles Fence Cargo Trailer


Specification:

Dimension

12.6m×2.6m×3.3m

Payload

60Tons

Fence height

0.4+0.4m(middle gap 0.2m)

Side wall height

0.6m

Tare weight

About 8.5 tons

Twist lock

12 units

Main beam

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

Frame Beam

Top Flange 14mm,width 140mm; Middle

Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height  500mm

Frame Floor

The Thickness is 3mm pattern

Edge beam

16# Channel

Through beam

10#Channel

Along beam

6#Channelx6

Axle

3 axles,

Landing Gear

28T lifting capacity with two speed JOST brand

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension re forced type

Leaf Spring

90mm(W)*16mm(T)*10 Layer

Tire

12pcs

Accessories

One standard tool box

Spare tire rack

One

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint


If you want to know more information about it, welcome to ask price with us.
