Help Center1000mm B47k22h Core Barrel With Casted Kelly Box for 100mpa Hard Rock for Bored Pile Foundation Work
Product Spotlights
Related Products
-
Diam 8.5 Inch Single Roller Bit C/w Bearing and Carbide Insert IADC 637 or IADC 737US$ 100 - 500MOQ: 1 Piece -
8 1/2 Inch Roller Bit IADC637 OR IADC737 Match Soilmec Roller Bit Core BarrelUS$ 100 - 500MOQ: 1 Piece
-
8 1/2 Inch Screw-on Type Roller Bit Match Bauer Type Roller Bit Core BarrelUS$ 100 - 500MOQ: 1 Piece
-
8 1/2 Inch Replace Type Roller Bit Match Bauer Type Roller Bit Core BarrelUS$ 100 - 500MOQ: 1 Piece
-
Diam 8.5 Inch Replace Type Roller Bit Match Bauer Type Roller Bit Core BarrelUS$ 100 - 500MOQ: 1 Piece
1000mm b47k22h core barrel with casted kelly box for 100mpa hard rock for bored pile foundation work
600mm round shank chisel core barrel with casted kelly box for 100mpa hard rock for bored pile foundation work
800mm core barrel with round shank chisel C31HD for bored pile foundation work match bauer-bg, soilmec ,liebherr-lb,casagrande , imt ,mait rotary drill rig
1200mm core barrel with round shank chisel b47k22h with casted kelly box for bored pile foundation work
1500mm core barrel with round shank chisel b47k22h with casted kelly box for bored pile foundation work
1800mm core barrel with round shank chisel b47k22h with casted kelly box for bored pile foundation work
2000mm core barrel with round shank chisel b47k22h with casted kelly box for bored pile foundation work
2500mm core barrel with round shank chisel b47k22h with casted kelly box for bored pile foundation work
3000mm core barrel with round shank chisel b47k22h with casted kelly box for bored pile foundation work

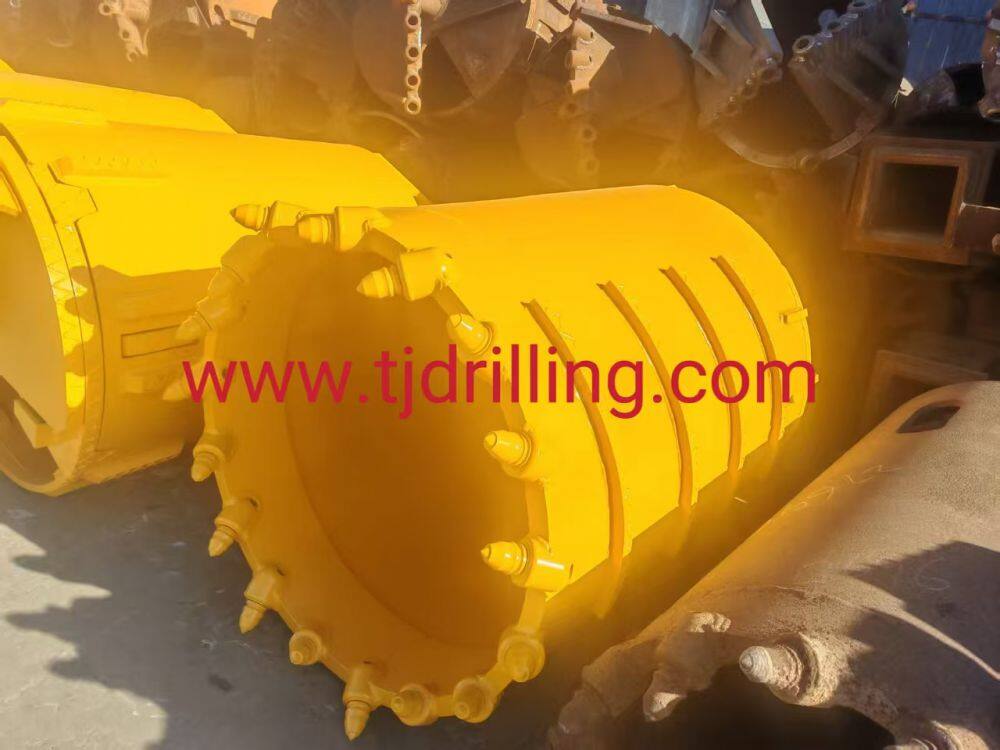

Tianjin huachang xingye technology co ltd Toothed Core Barrel
Main application:-
Generally used to cut low fractured hard rock formation and partially fragmented medium hard rock formation up to (100 Mpa), suitable for cuttingthrough fissured rock
Features:-
Kelly box: 130-150-200 – other available upon request
Cutting ring with round shank picks with picks holders welded to the base ring.
Teeth: B47K22H or B40K12
other available upon request.
Wear protection: hard facing (standard)
or wear stripe (optional)
or tungstuds (optional)
Welding Bar Core Barrel
Main application:-
mainly recommended for cutting through reinforced concrete, medium and medium hard formation.
Features:-
Kelly box: 130-150-200 – other available upon request
Cutting ring welded bar teeth welded into inside the base ring of core barrel.
Wear protection: hard facing (standard)
or wear stripe (optional)
or tungstuds (optional)
Roller Bits Core Barrel
Main application:-
core barrel equipped with roller cutter bits
Generally used to cut very hard fractured, hard rock formation with compressive strength up to (200 MPa).
Features:-
Kelly box: 130-150-200 – other available upon request
Teeth: Single roller bit c/w bearing and carbide insert IADC 637 or IADC 737 – diam. 8.5 inch.
Cutting ring with tungsten roller bits welded into
the base ring of core barrel.
Wear protection: hard facing (standard)
or wear stripe (optional)
or tungstuds (optional)
or wear stripe (optional)
D |
T1mm |
T2mm |
H1 |
H |
KELLY BOX |
kg |
600 |
20 |
40 |
1200 |
1800 |
200 |
578 |
800 |
20 |
40 |
1200 |
1800 |
200 |
772 |
1000 |
20 |
40 |
1200 |
1800 |
200 |
965 |
1200 |
20 |
40 |
1200 |
1800 |
200 |
1175 |
1500 |
20 |
40 |
1200 |
1800 |
200 |
1525 |
Mexico core barrel with roun shank chisel , roller bit core barrel
,canada/Vancouver /Calgary toronto /OttawaSecant core barrel with roun shank chisel , roller bit core barrel
,colombia Medellín core barrel with roun shank chisel , roller bit core barrel
Cartagena,Barranquilla,Tunja core barrel with roun shank chisel , roller bit core barrel
,Vietnam/Chí Minh core barrel with roun shank chisel , roller bit core barrel
,New Zealand/Auckland Australia Adelaide/Melbourne/Sydney/Brisbane core barrel with roun shank chisel , roller bit core barrel
Malaysia /Singapore Indonesia/Jakarta/Pilipines Россия/ruusia core barrel with round shank chisel , roller bit core barrel
,belize/Puerto Rico/Guatemala/San salvador/Honduras core barrel with roun shank chisel , roller bit core barrel
,Ecuador Peru lima ,callao/Bolivia Chile Santiago core barrel with round shank chisel , roller bit core barrel
Chile Argentina/Uruguay/Paraguay,Brasil/Guyana core barrel with round shank chisel , roller bit core barrel
,usa ,america los Angeles/new york/California core barrel with round shank chisel , roller bit core barrel
,South Africa Kazakhstan core barrel with round shank chisel , roller bit core barrel
, spain Português germany italy ,greece romania serbia,france core barrel with round shank chisel , roller bit core barrel
africa core barrel with round shank chisel , roller bit core barrel
,south korea single wall casing pipe
, japan core barrel with round shank chisel , roller bit core barrel
, taiwan , hong kong core barrel with round shank chisel , roller bit core barrel,UAE core barrel with round shank chisel , israel core barrel with round shank chisel
Tianjin huachang xingye technology co ltd whatsapp 008618902059907 email info@tjdrilling.com
