CGF Wash-filling-capping (Rinsing-bottling-sealing) 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The Complete Bottled Mineral Water / Pure Water / drinking water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Bottle drinking water pure water mineral water spring water natural water project description:
| Project Name: Full Automatic Complete Mineral/pure/drinking water 2000-20000bph filling Production Line | ||||
| Material | Shape | Bottle volume | Bottle size | Neck type |
| PET bottle | Square or Round Bottle | 150-2000ml | Bottle diameter ≤105mm Bottle Height≤350mm |
26mm, 28mm, 30mm, 38mm (As request) |
| Raw water | Drinking water | Filter capacity | Filling capacity | PH |
| Mountain spring water City water Underground water Mineral water |
Pure drinking water Mineral drinking water |
1T/H-20TH | 2000-18000BPH @500ml | PH≥4.6, drinking water |
| Labeling | Date printer | Packing | Ambient Conditions | Electrical Supply Specification |
| Hot melt adhesive label PVC Shrink Label Adhesive Sticker label |
Ink-jet printer Laser printer |
PE Film shrinking packing Wrap Around packer Robert Packing Machine Carton packing |
Temperature:10~40ºC; Humidity:No dew |
Voltage:380V, 3phase; Frequency:50HZ/60HZ Other power: 110V, 220V, 415V, 440V, 450V |

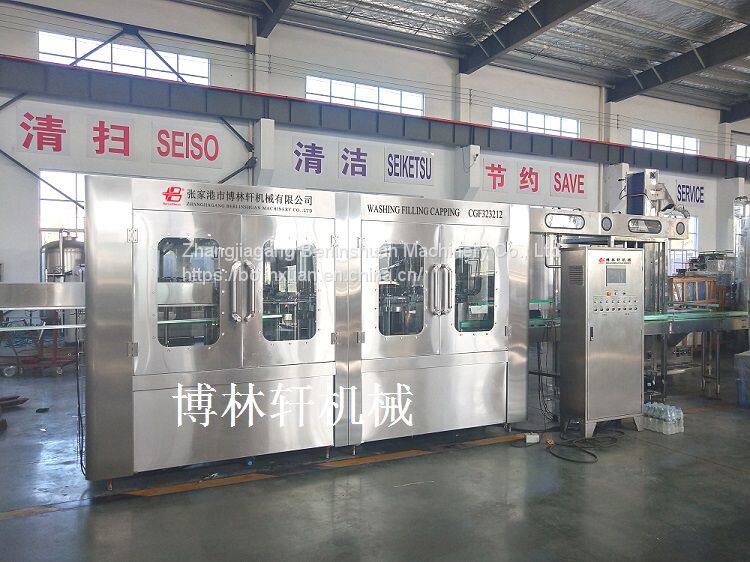

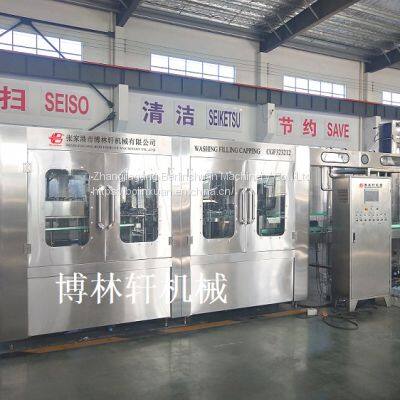

Full automatic Washing filling and capping machine 3 in 1 CGF323212A
Main features:
1. The machine has compact structure, small occupation area, perfect control system, convenient operation and high degree of automation.
2. Filling liquid cylinder, filling valve and other parts in contact with the material are made of stainless steel 304, easy to clean, meet the requirements of food hygiene. The sealing parts are made of heat-resistant rubber to meet the technical requirements of high temperature disinfection.
3. Normal pressure filling principle, sanitary positioning filling valve, accurate liquid level without liquid loss, to ensure excellent filling quality.
4. The electrical control adopts PCL programmable controller to realize the automatic control from the bottle into the machine to the end of packaging. The frequency conversion speed control is adopted, which is easy for users to adjust and prepare, and meets the requirements of different processes for production capacity.
5. Constant torque device is adopted for capping head, and magnetic clutch is used to adjust the torque of capping. The device ensures the quality of capping and will not damage the cap to ensure the quality of capping.
6. Adopt efficient cap management system, which is equipped with automatic cap lifting, cap feeding, cap disinfection, cap washing, and perfect cap feeding and protection device.
7. Changing bottle shape, only need to replace the star wheel and arc plate can be realized, simple and convenient operation.
8. Equipped with perfect overload protection device, which can effectively protect the safety of the machine and the operator.
10. The machine adopts frequency conversion speed regulating motor, which can easily adjust the production capacity.
11. The main electrical components, frequency converters, photoelectric switches, proximity switches, electronic valves, etc., are imported from MITSUBISHI, OMRON OMRON, SCHNEIDER SCHNEIDER and other components to ensure the excellent performance of the machine.
12. The control system has the functions of automatic water level control, missing cap detection alarm, automatic stop alarm and shift output count, etc
Main Technical parameters:
Model |
CGF883 |
CGF12125 |
CGF18186 |
CGF24248 |
CGF323212 |
Heads of washing filling and capping |
8-8-3 |
12-12-5 |
18-18-6 |
24-24-8 |
32-32-12 |
Capacity (550ml) |
3000BPH |
4000BPH |
6000BPH |
10000BPH |
15000BPH |
Bottle size |
φ=50-110, H-150-350mm, V=330-2250ml |
||||
Rinsing prssure |
2-3kg/cm2 |
||||
Power |
3kw |
3.5kw |
4kw |
5.5kw |
7.6kw |
Size （L*W*H）mm |
1900*1420*2000 |
2200*1600*2300 |
2450*1900*2300 |
2750*2180*2300 |
4000*2300*2300 |
Weight（kg） |
2000 |
2500 |
3500 |
4500 |
6500 |
Electrical configuration table (if any other electrical requirements, please specify)
| No | Name | Quantity | Brand | Place of origin |
| 1 | Touch screen | 1 | Wieren/Siemens (optional) | Taiwan/Germany |
| 2 | PLC programmable controller | 1 | Mitsubishi | Japan |
| 3 | Inverte | 1 | Mitsubishi | Japan |
| 4 | Contactor | 1 | Schneider | France |
| 5 | Circuit breaker | 1 | Schneider | France |
| 6 | Switching | 1 | Delixi | China |
| 7 | Relay | 1 | Schneider | France |
| 8 | Emergency stop switch/indicator | 1 | Schneider | France |
| 9 | Optoelectronics | 1 | Autonics | Korea |
| 10 | Main switch | 1 | Delixi | China |
After-sales service:
1. System equipment enjoys one year free warranty, the warranty date from the product acceptance date, consumable filter material is not included.
2. During the warranty period, any quality problems of the equipment (except those caused by misoperation or unforeseeable factors) will be repaired by the Supplier free of charge and the damaged parts will be replaced.
3. After the expiration of the warranty period, only certain material fee and appropriate technical service fee will be charged.
4. If the system fails to be solved by itself or by telephone, the technical maintenance personnel of our company shall, within 24 hours after receiving the written notice of the fault from the demander, make a solution (including temporary measures) and schedule and report to the competent leaders of both parties.
5. After the delivery of the equipment, our company will have engineers to pay a return visit to understand the operation of the equipment and provide technical services in time. We welcome users to ask any technical questions, we will timely reply.
Notice to Users:
1. The user shall provide the bottle type, cover and related materials for our company to debug and test the equipment.
2. The user shall explain the filling requirements.
3. Our company has a variety of models of different production of filling machine, if the user special instructions, will try to meet the requirements.
4. Our company provides installation and debugging of the designed and sold equipment and training for users' operation personnel.
5. Our company carries out the principle of one-year warranty and lifelong service for the users, and sets up files for tracking service to ensure the quality level.
Other:
If the above equipment fails to meet your requirements, please contact us, we will develop a detailed project plan according to your actual situation, so that the water to meet your ideal requirements.
