Auto high speed flute laminator automatic rolliing over machine turn over paper machine
- 1000 per Month
- T/T Credit Card
- Good quality automatic cardboard corrugated stacking machine
- hand printing table easy to operate
- Semi automatic 6090 silk screen printing machine/screen printer/silk printer
- ZX-650 UV Coating Machine
- INNOVO-480 UV Coating Machine
- Automatic 1100 spot UV coating machine/spot uv varnishing glazing machine
Product Description
Best Quality Automatic Pile Turning Stacking Machine Flip Flop Stacker
Product description
The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

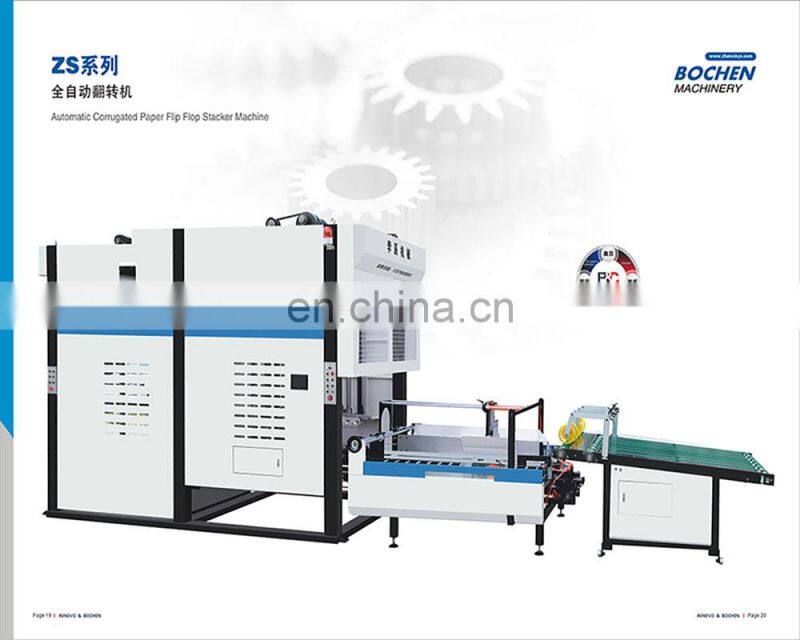

The automatic pile turner machine is an accessory product of the flute laminating machine and includes a feeding table, a turning table and a paper receiving table which are sequentially assembled. Wherein, the receiving table is connected with the pick-up unit, and the paper count is stacked into a counting pile and sent into the turning table. The counting paper stack is turned over once and not turned to the top of the turning table by using the turning mechanism in the turning table. Then, the push mechanism is fed into the top of the receiving table, and after the whole paper is finished, the paper is dropped onto the pallet of the receiving table. In this way, the paper is fully automated for paper counting, paper turning, and paper stacking, and has the effect of flattening and affixing the paper, greatly reducing manpower requirements, and effectively improving the paper-receiving efficiency. Reduce the manual delivery intensity.
Parameters:
Machine model | ZS-1450 | ZS-1650 |
Max paper size | 1450*1450mm | 1650*1650mm |
Min paper size | 450*550mm | 450*550mm |
Power | 8kw | 11kw |
Power supply | 380V, 3phases | 380V, 3phases |
Production speed | 5000-10000 pices/hour | |
Air pressure | 0.65-0.85Mpa | 0.65-0.85Mpa |
Machine weight | About 4000KG | About 4000KG |

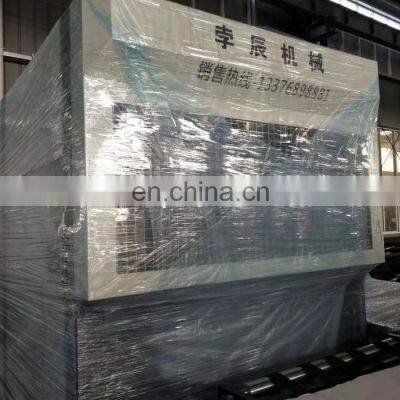

1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
*With 10 years' Experience ,Having ISO 9001-Certified Factory, Strong R&D capability
*High Quality Guaranteed, First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater ZXSCM Book Case Making Machine
650UV Coating Machine ZX-650C Manual Paper Pasting Machine
Box Making Machine Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine Paper Pressing Machine.etc
Welcome to visit our factory!
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have stock product to sell?----Maybe, It depends on which machine you like.
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too. You can choose as you like.
