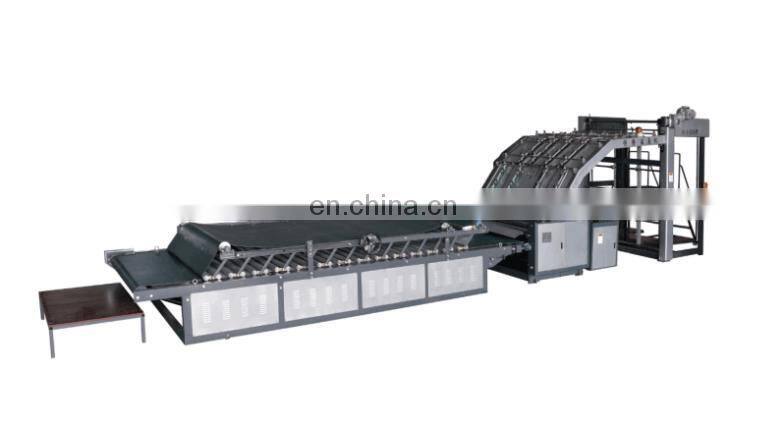

Semi automatic high stand flute laminating machine/Manual top paper feeding flute laminator
- 1000 per Month
- T/T Credit Card
You May Like
-
New model high speed servo type automatic flute laminator
-
Automatic sheet paper embossing machine/1100 Innovo paper graining machine
-
Automatic flute laminating machine/flute laminator
-
Automatic High Speed Flute Laminator with Pile Stacker/Flute Laminator
-
automatic corrugated paper board flute laminator machine 1650
-
Automatic three in one flute laminating machine/5 layers E flute laminator/5 ply corrugated paper high speed flute laminator
Product Description
(Servo)Semi-automatic Lifting Laminator Machine Configuration
Type |
1300 |
1450 |
1650 |
vering size |
1300*1250mm |
1400*1250mm |
1600*1450mm |
vering size |
360*360mm |
360*360mm |
360*360mm |
Machinery highest speed |
0-90m/min |
0-90m/min |
0-90m/min |
The max height of stacking |
150mm |
150mm |
150mm |
Electric machine power |
6kw |
7kw |
7kw |
Area |
9800*1780mm |
9800*1980mm |
9800*2180mm |
Packaging size |
1970*1800*1000mm 4580*1780*1520mm |
1970*2000*1000mm 4580*1980*1520mm |
1970*2200*1000mm 4580*2180*1520mm |
Weight |
3t |
3.5t |
4t |
Technical Parameter:
Introduction : The machine adopts bottom adsorption auto feeding system, the surface paper can be stacked 1.5 m height, auto lifting, eliminating the trouble of frequent transporting surface paper. Paper feeding is more easily, easier to add the bottom paper with more efficient. Suitable for the pasting of colorful printing paper and corrugated paper, colorful paper and gray cardboard .
Main electric elements configurations: full computer touching screen control, Panasonic PLC, the INVT servo drive motor. The host pressure transmission are all Delta frequency converter control, automatic control glue feeding, alarm if no glue, count, alarm when count reaches (the setting number).
Host: chain wheel and synchronous wheel are through high-frequency quenching . The synchronous belt and synchronous wheel are the products of Xiamen joint venture . Positioning belt adopts Italy technology ; host pressure transmission, frequency control adopt Delta brand, the conveyor belt of Italian technology.
The new servo laminator total Length: 9.8 m, which host 4m length, 5m length for pressure transmission , paper receiving table 0.8m length , 28 pieces pressure output axle , 8 pieces positioning belt , 3 synchronous wheels, 1 synchronous belt.
Main feature:
1. Surface paper can be stacked 1.5 m height in one time, the paper pile is auto lifting in feeding process, making the feeding more easily, and more efficiently.
2. The bottom paper adopts suction type auto feeding, can automatic tracking according to the speed of manual feeding surface paper .
3. The new concept of former regulation positioning, high positioning accuracy, the bottom paper never ahead of surface paper ; the advance volume of surface paper is adjustable;.
4. The machine uses touching screen / PLC control system, circuit system runs stably , and can automatically display fault alarm;
5. Automatic glue supplement system, it can automatically supply the loss glue in laminating process , and coordinate glue recycling, avoiding to waste glue;
6. The line speed of glue roll is with scientific design, to ensure the uniform amount of glue , in the mean time to avoid glue thrown when in high-speed operation;.
7. Using glue roller cleaning, the lower roller clean thoroughly, make the back of corrugated paper not pasted glue , eliminating the trouble of frequent replacing the blade ;
8. Floating type movable table, to ensure that corrugated will not be crushed after laminating, it also ensures the smooth straight of paperboard;
9. Cleaning water supply adopts independent tank to control water circulation type, washing cleaning, easy to accumulate plastic;
10. Roll pressure is adjusted in single side, when replacing the bottom sheet size, simply shake to the required scale in single side, without the need to test the pressure of each roll, easily and quickly to adjust the machine.
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
1.What is Innovo company machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 7-30 days
4.What is the delivery time?----Within 7-30 days after get the payment.
5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.
7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have stock product to sell?----Maybe, It depends on which machine you like.
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too. You can choose as you like.
We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
