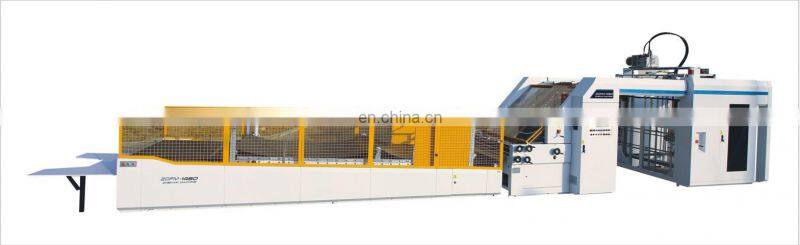

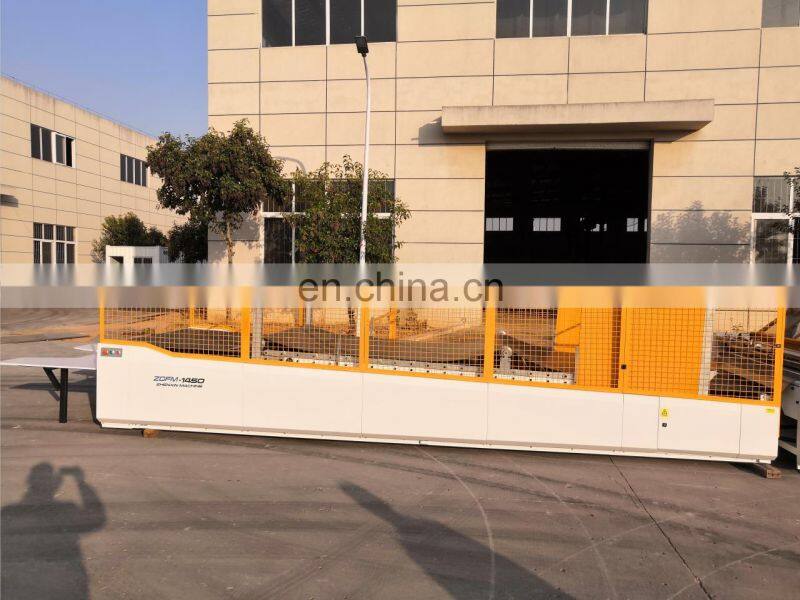

Automatic litho laminator/automatic litho corrugated carton flute laminating machine

Automatic flute laminating machine with turner stacker

 Max.speed: 12000sheet/hour

The production line consists of a flute laminating machine and a fully automatic pile turning machine. The high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the servo motor on both sides of the control paper is independently compensated, and the position of the bottom paper is tracked by the paper. Make the paper and the bottom paper accurately positioned. The machine is easy to operate and simply input the size of the paper, the machine will be adjusted by itself.
The fully automatic turning machine can complete the paper stacking, saving manpower and space, and solving the problem of bending deformation after the paper is attached.

Parameters:

BRANCH INTRODUCTION:

BOTTOM PAPER FEEDING:
Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller, Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.

TOP SHEET FEEDING MECHANISM:

Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.

ELECTRICAL SYSTEM:
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

PRE-STACK PART:
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.

TRANSMISSION:
With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.

POSITIONING SYSTEM:
The use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.

GLUE ROLLER:
Stainless steel roller,never rust, after narrowly grinding, guaranteed the minimum amountglue coated evenly. Down roller be cleaned by water roller.

LEADING EDGE FEEDING SYSTEM(OPTION)
This system is for option,more suitable for large size and thick bottom sheets.

CE safety cover, it is more safe in working.

1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

*With 10 years' Experience

*Having ISO 9001-Certified Factory

*Strong R&D capability

*High Quality Guaranteed

*First Class Service And Best Prices

*Primary products:

    Automatic High Speed Flute Laminater

    ZXSCM Book Case Making Machine

    650UV Coating Machine

    ZX-650C Manual Paper Pasting Machine

    Box Making Machine

    Hot Melt Gluing Machine and Gluing Machine

    Table Gluing Machine

    Paper Pressing Machine.etc

    Welcome to visit our factory!

1.What is Innovo company machine warranty?----one year.

2.Does your machine with CE certificate?----Yes.

3.What is the production time while placing order?----Arounding 7-30 days

4.What is the delivery time?----Within 7-30 days after get the payment.

5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can        check the shipping charge and arrange shipping for your order)

6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to          export packing standard.

7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your    problem as soon as possible.

8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.

9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high            quality products and excellent services.

10Do you have stock product to sell?----Maybe, It depends on which machine you like.

11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC         department before  shipping.

12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via              West Union too. You can choose as you like.

We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.

Our faith:

1) Society's Avail First

2) Client's Avail First

3) Employee's Avail First

4) Enterprise's Avail Second

If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.

Innovo China
