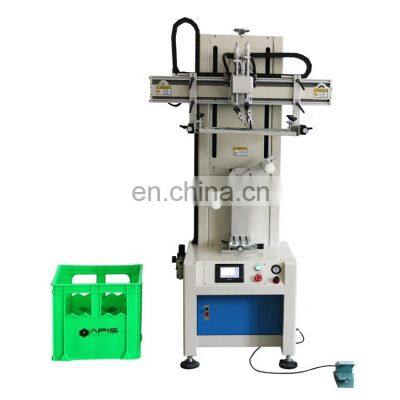

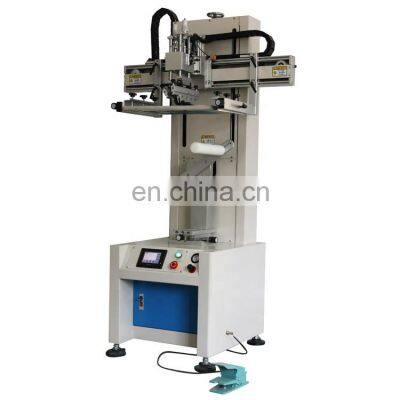

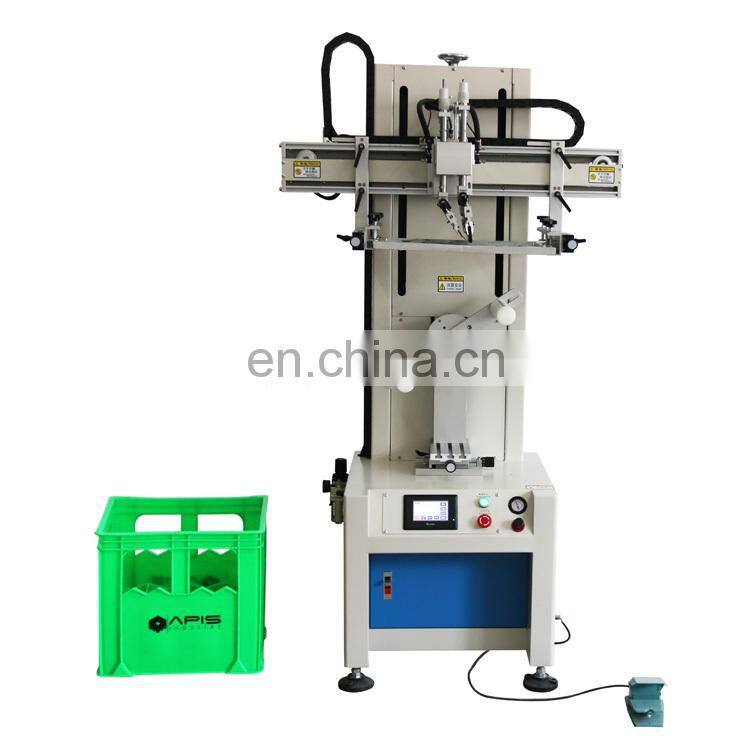

Plastic Crate Screen Printing Machine With 2 Side Rotate Crate Printer

Features
*PLC touch control panel
*For printing platic crate 2 side rotate single color

* Rotate angle can be set to 0-360 degree move

*The printing head is driven by motor. Running on the double parallel high precision Linear Guide, stepless speed adjustment to ensure smooth movement.

* Max. printing crate can be 300mm height

*Max. printing size can be 300x500mm





Parameter

Model

TS-3050CP1

Worktable Selections

Adjustable fixture

Printing Color

1

Printing Side

2

Max. Printing Size

300×500mm

Max. Screen Frame Size

400×600mm

Max. Substrate Height

250mm

Max. Printing Speed

1000pcs/hr

Air Pressure

6bar

Rated Voltage

220V, 50Hz

Total Power

1.5kw

Dimension(L×W×H)

750x650x1950mm

Weight

230kgs(Approx.)



Plastic Crate Screen Printing Machine With 2 Side Rotate Crate Printer





Plastic Crate Screen Printing Machine With 2 Side Rotate Crate Printerl

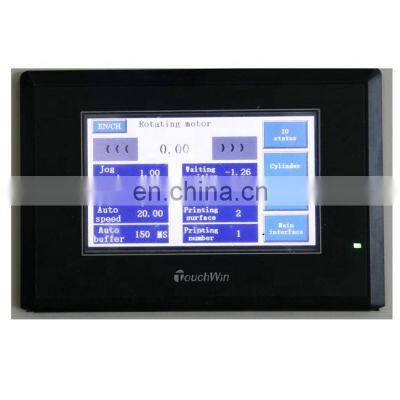

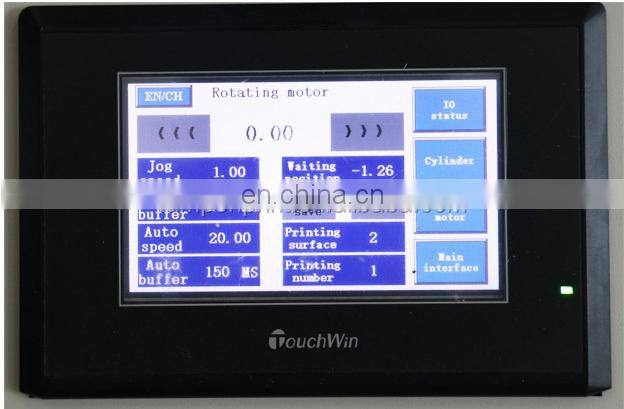

Touch Screen Panel





Plastic Crate Screen Printing Machine With 2 Side Rotate Crate Printer

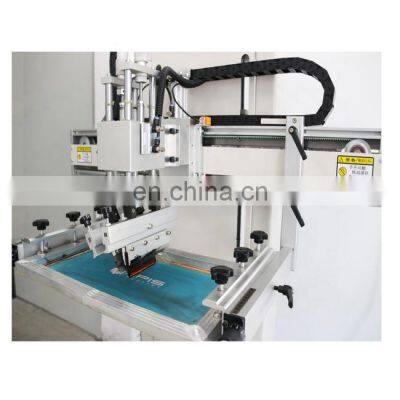

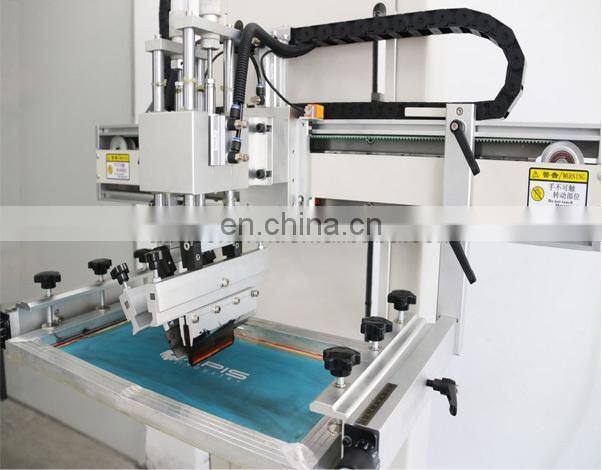

Printing Mesh Screen





Plastic Crate Screen Printing Machine With 2 Side Rotate Crate Printer

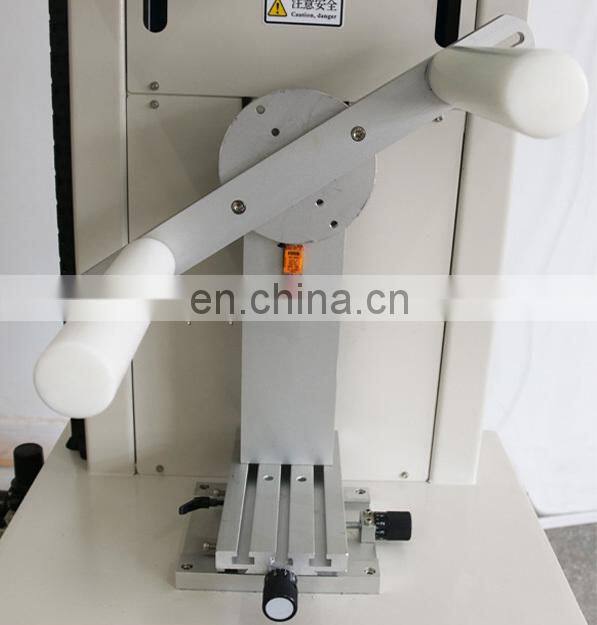

Adjustable Holding Fixture







Plastic Crate Screen Printing Machine With 2 Side Rotate Crate Printer

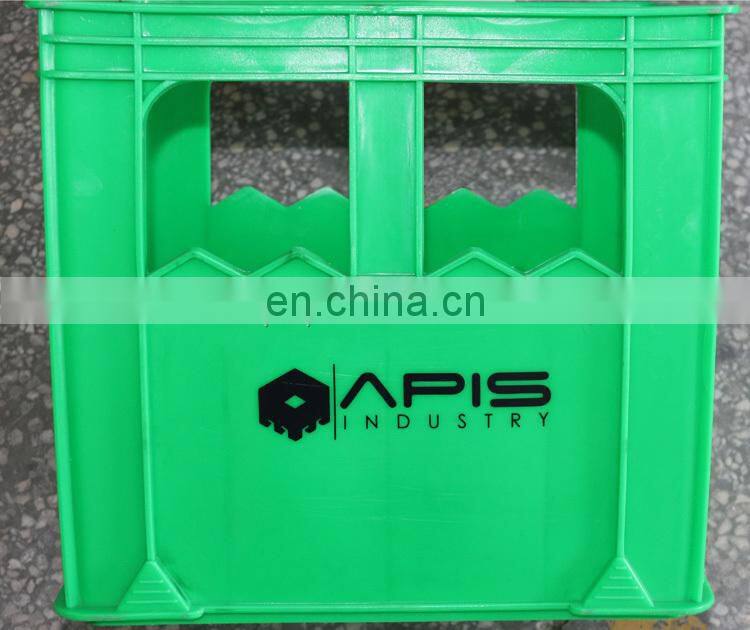

Crates Printed Samples
