Large Printing Area Ink Cup 100 cm Length Catheter Pad Printer Printing Machine Medical Tube

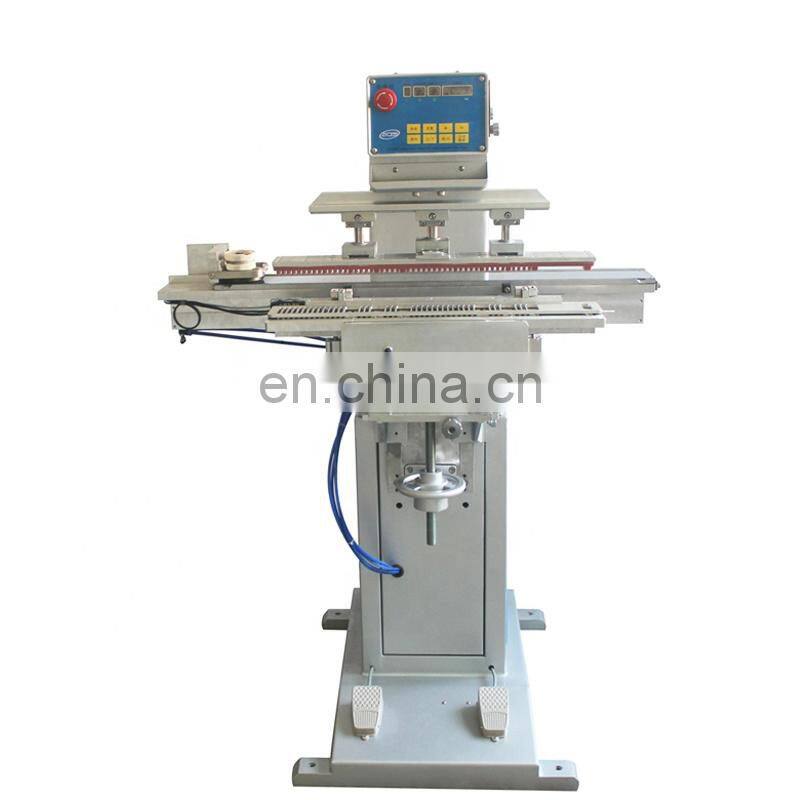

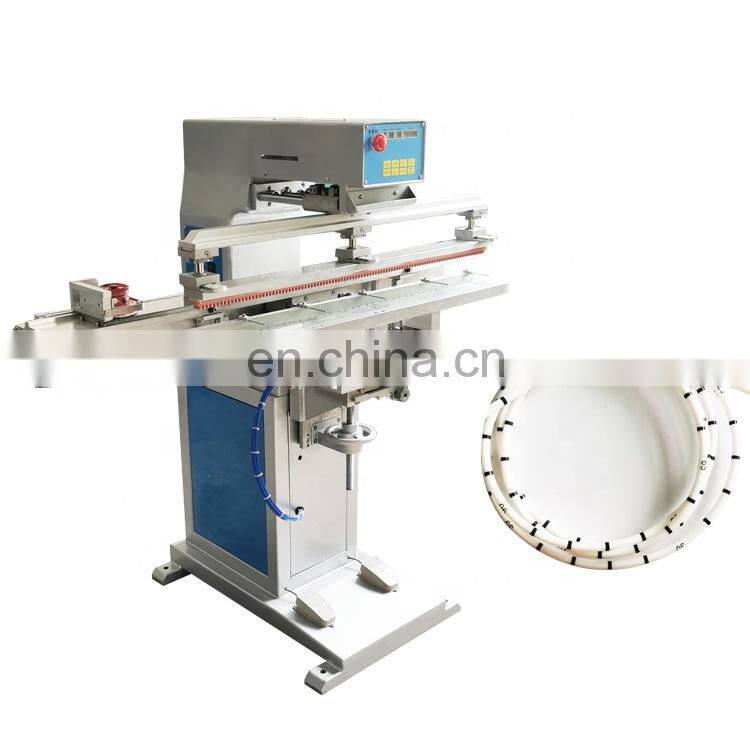

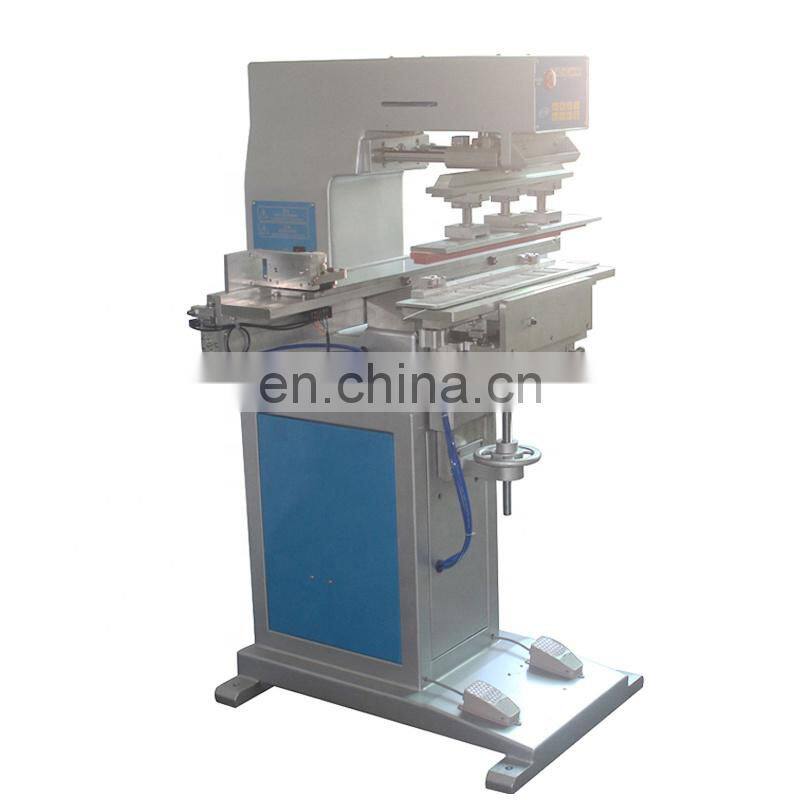

Large Printing Area Ink Cup 100 cm Length Catheter Pad Printer Printing Machine Medical Tube photo-1
Large Printing Area Ink Cup 100 cm Length Catheter Pad Printer Printing Machine Medical Tube photo-2

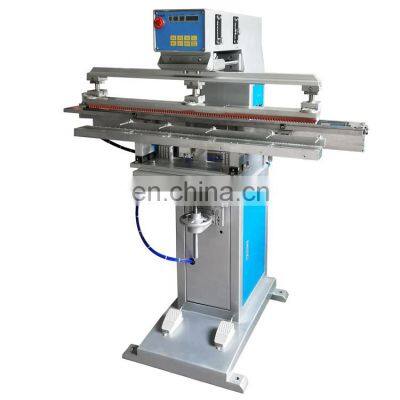

Large Printing Area Ink Cup 100 cm Length Catheter Pad Printer Printing Machine Medical Tube photo-3

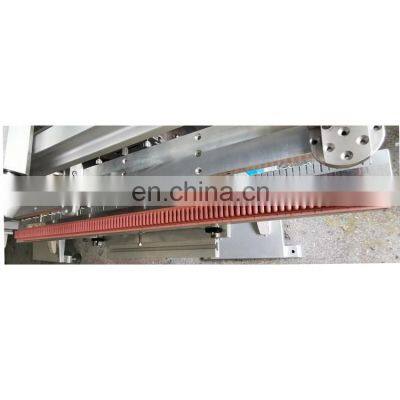

Large Printing Area Ink Cup 100 cm Length Catheter Pad Printer Printing Machine Medical Tube photo-4

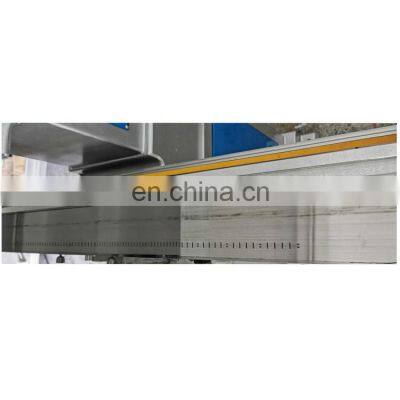

Large Printing Area Ink Cup 100 cm Length Catheter Pad Printer Printing Machine Medical Tube photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
large printing area ink cup 100 cm length catheter pad printer printing machine medical tube
Diameter of the printable pieces 2.5mm. The same machine can also print tubes up to 5 mm in diameter and 1000mm in length. Slide
system, sealed inkcups with ceramic rings diameter 60-90 mm, hot air on pads,
automatic and programmable pads cleaning device.
The special jigs of this machine enable the 360 ° and number printing of catheters of various sizes, manual loading and unloading.
Feature:
*For medical tube 360 degree and number scale printing;
*Each function is controlled by microprocessor for easy operation;
*4-digit auto counter built in;
*High quality aluminium alloy is used to make structure solid and weight light;
*Independent pad up/down stroke and speed adjustment;
*Printing speed adjustable to fullfil various requirements;
*"Inking twice, printing once" for thick ink film;
*Able to sweep forward/backward without lowering pad to avoid ink drying at intervals.
Specification
Model
TP-150CPM1
Color
1
Ink cup diameter
90mm
Steel plate size
1300x1000mm
Max printing size
1000mm
Max printing speed
800 pcs/hr
Air consumption
110 litre/min (approx)
Rated Voltage
220V
Dimension(L×W×H)
1800x750x1350mm
Weight
200kgs
Company Profile
Shenzhen Tampon Print Machine Ltd. is located in Dongguan , Guangdong. As a printing company with more than 20 years experience,we has become a world supplier of high quality pad printing machine, screen printing machine and hot stamping machine.
For 20 years continuous efforts, we have made a gratifying achievements on researching an development, and expanding number of new projects in the printing machine market .And as our company continuously expanding in the international market , our teams also have attaching great importance to protecting the interests of domestic and foreign customers ,and providing professional technical training for customers with high-quality service.
VR
Packaging&Shipping
Certifications
Pad printer printing steps
FAQ
Q1.Are you a factory or a trading company?
A:We are a professional manufacturing factory,and the quality is guaranteed.

Q2.Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q3.Why choose us?
A: a.We are a professional factory,we can supply cheaper price.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.

Q4.What service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.

Q5.What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time:Standard: Within 7 days
Customized: 25-30 workdays after receiving T/T 30% payment deposit
