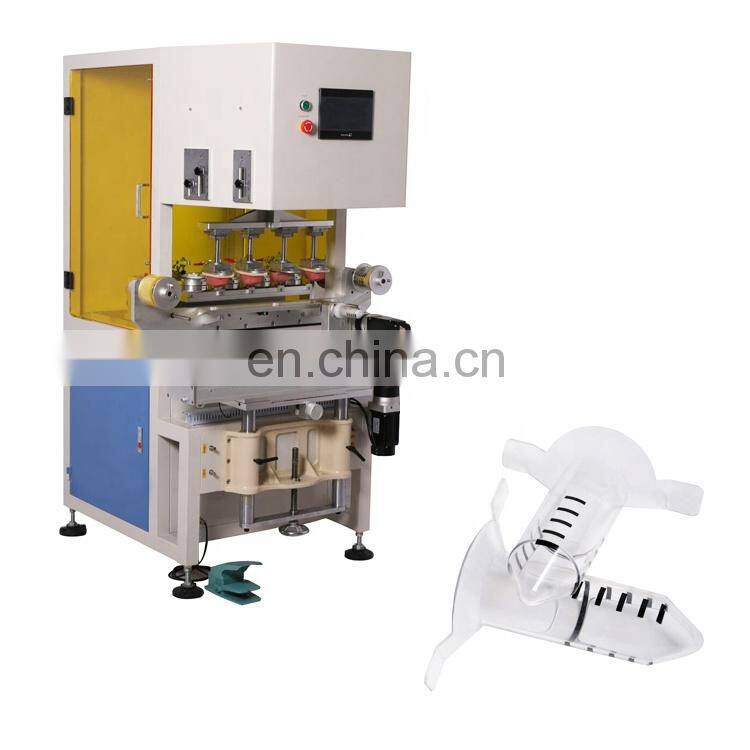

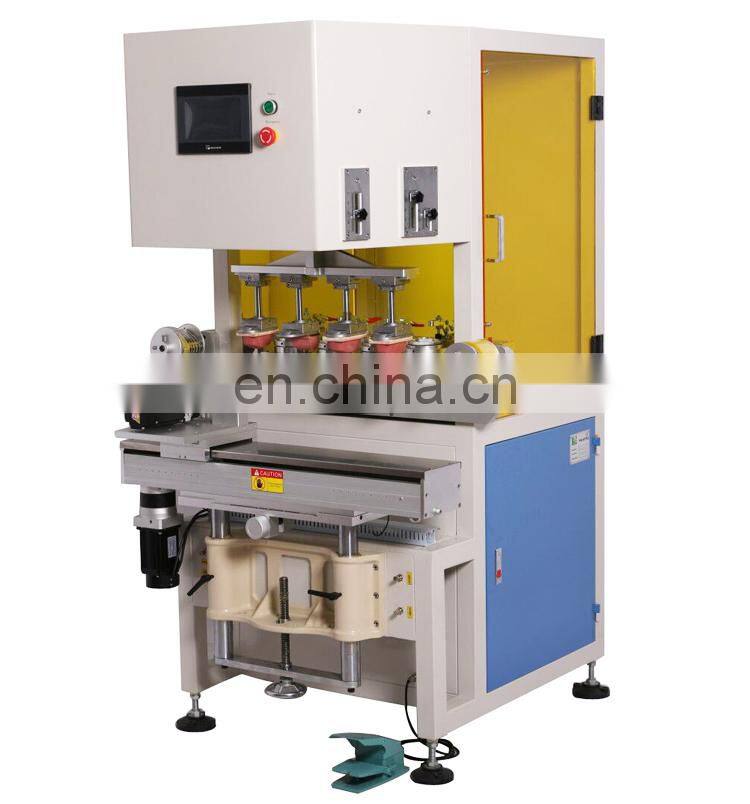

Home > Packaging & Printing > Printing Machinery > Pad Printer > 4 Colors Servo Tampon Pad Printing Machine Electric Pad Printer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2015
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Servo Electric Pad Printing Machinepad Printing Machine 2 Color Crate BoxesNegotiableMOQ: 1 -
Servo Tampon Silicone Rotary Tagless Single Color Manual Small Pad Printing Machine for SaleNegotiableMOQ: 1
-
Servo Motor 2 Color Small Watch Dial Mask Tampo Pad Printer Printing MachineNegotiableMOQ: 1
-
Servo Motor Rotation Four Color Ink Cup Electric Tampografia Pad Printer 4 Color With ShuttleNegotiableMOQ: 1
-
Transverse Single Color Pneumatic Medical Catheter Tube Pad Printer Printing MachineNegotiableMOQ: 1
Product Description
Feature:
1.Portal-type frame and aluminum machine body stably
2.MISUBISHI PLC and WEINVIEW touch panel for operating easily
3.Servo driven shuttle and rotate working table for precision run
4.Servo motor and HIWIN liner guide drive pad front-back with precise color registration
5.Closed ink cup load system for low sell and save ink
6.Pad up-down and ink cup front-back independent adjust speed
7.Adopt AirTAC cylinder and electronic parts to make sure machine quality
8.Can be chosen auto pad clean system for better print quality
2.MISUBISHI PLC and WEINVIEW touch panel for operating easily
3.Servo driven shuttle and rotate working table for precision run
4.Servo motor and HIWIN liner guide drive pad front-back with precise color registration
5.Closed ink cup load system for low sell and save ink
6.Pad up-down and ink cup front-back independent adjust speed
7.Adopt AirTAC cylinder and electronic parts to make sure machine quality
8.Can be chosen auto pad clean system for better print quality
Specification
Model | TP-150S4S-R |
Print Accuracy | +/- 0.03mm |
Ink Cup Size | Ø90*82*12mm |
Steel Plate Size | 100*250*0.5mm |
Ink Cup Stroke | 150mm |
Pad Stroke | 80mm |
Max. Printing Speed | 800pcs/hr |
Air Pressure | 6bar |
Rated Voltage | 220V 50Hz |
Dimension(L×W×H) | 1100*1000*1680mm |
Weight | 300kg(Approx.) |

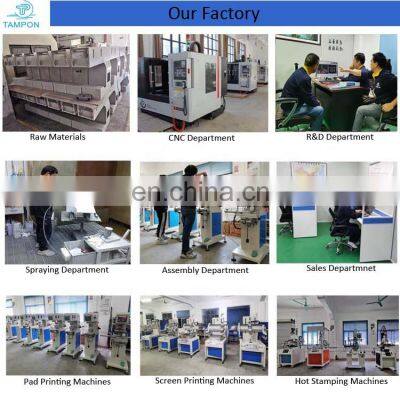

Company Profile
FAQ
FAQ
1.How long will it take to produce an order?
Lead Time is usually for 30-90 days, according to orders of customers and its requirement.
2. What is your payment terms?
Payment method can be deposit 30%-50%, balance before shipment or L/C at sight for container order.
100% T/T or Western Union in advance for small order.
3. Can you accept OEM/ODM service?
Yes, we can.
4. Can you test our sample before we place an order?
Yes, simple test can be free, if image is too complex, we will charge you cost of materials for cliche, pad, ink and fixture,
labor cost free.
5.Can you send your technician to our company to install and adjust machine and train our operator?
Yes, we can.
