Auto abrasive paper cutting machine
|
Model |
HX-600B |
|
Voltage |
380V |
|
Power |
1500W |
|
N.W. |
320KG |
|
Cutting Length |
0.1-9999.9mm |
|
Cutting Width |
1-600mm |
|
Cutting precision |
±0.05mm |
|
Cutting speed |
125(cut/min) |
|
Machine size |
1800x1380x1200mm |
1.Equipped with automatic 3 inch unwinding pneumatic compressed shaft ,which will be easy to load and unload materail.
2.Computer controlled PLC system, full automatic .
3. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.
4.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if power off & on.
5.Cutting length and cutting speed tunable
6.the cutting speed is 125 cut per minute. (take 50mm long for example).
7. It stops automatically if materials run out during operation.
8.Cut up to 600mm wide material or multiple rolls(Cutting 2-3 tapes roll at one time)
9.cutting is neat due to using a cold cutter like scissors and blades are durable because they are made of high-speed steel(HSS)
10.Full English LCD display,easy operating.and you can check the operation manual brochure,
we will sent together with the machine.
11.cutter safety guard included,no danger risk
12.adjustable pressure on feed roller for thin or smooth materials
Ideal for heavy production to cut non-adhesive material,such as various tape,label,conductive
foam,fabric,PVC,PET,OPP,PP,CPP,LDPE,craft paper,insulation paper,aluminum foil,copper foil,
Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
Options:
· static electricity eliminator
· Conveyor belt
· photo electricity marking sensor
· suck device
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory

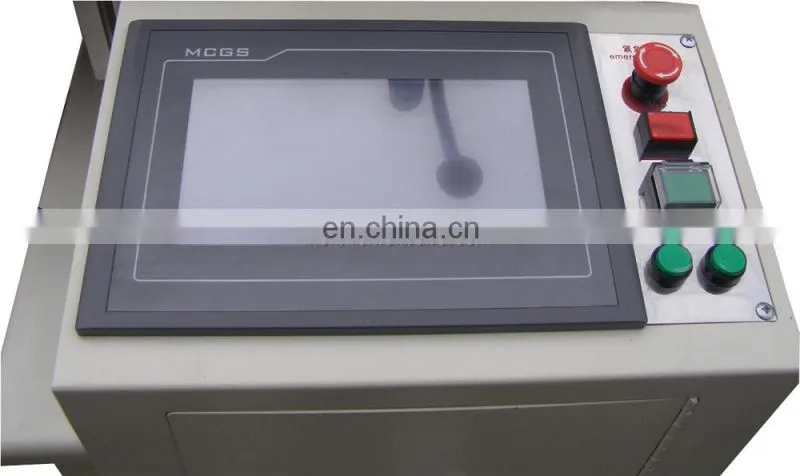

Touch screen of this abrasive paper cutting machine
Cutting knife of this abrasive paper cutting machine
CE Certificaitons:
Our factory
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines, laminating machines and rotary die cutting machines.
4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement.
Welcome your enquiry!
