Cut Squares Intermittent Skip Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Computer Hot Cutting Nylon Polyester Webbing Strap Belt Automatic Elastic Cutting MachineNegotiableMOQ: 1 -
China Factory Custom Auto Stack Automatic Feeding Cutting MachineNegotiableMOQ: 1
-
China Factory Custom Auto Stack Auto Feed Cutting MachineNegotiableMOQ: 1
-
Automatic Two-layer Bonding Half-cut Half Section Full Cut All in One Cutting MachineNegotiableMOQ: 1
-
Small Electric Heating Fabric to Foam Laminating MachineNegotiableMOQ: 1
Product Overview

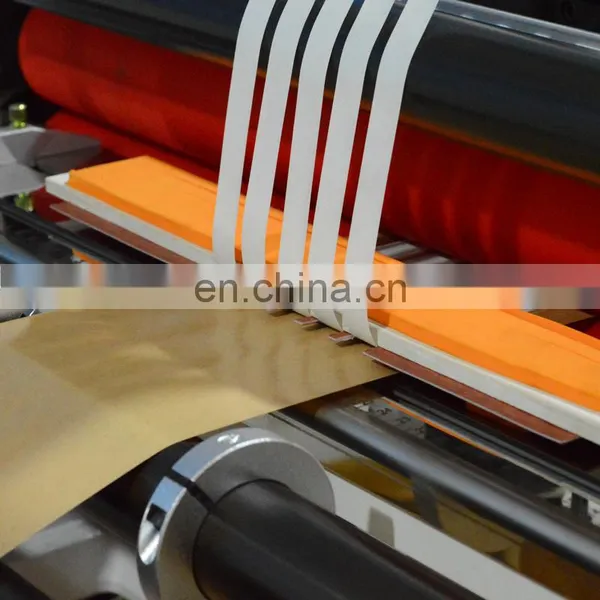

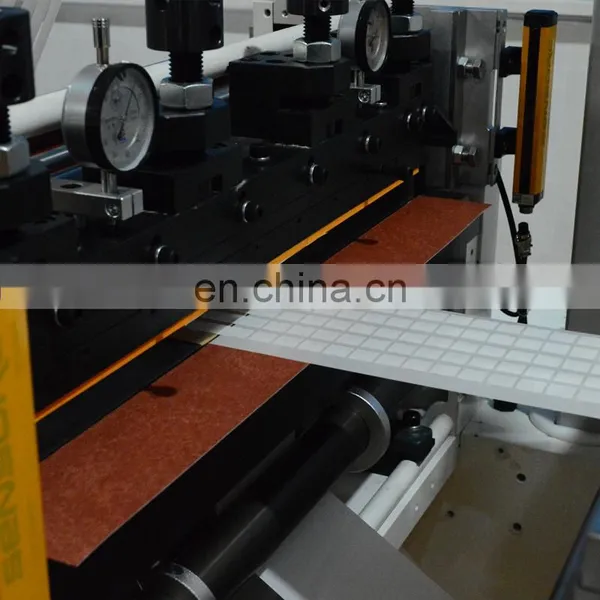

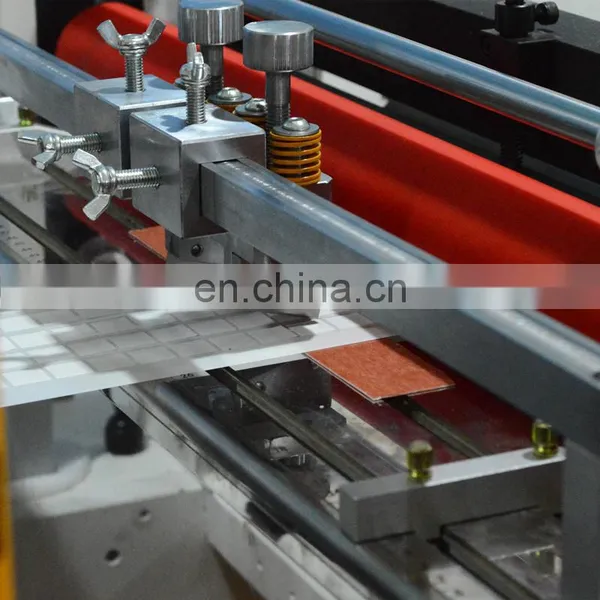

This machine employs programmable controller + man-machine touch screen + two servo controller to pull material, good synchronization, easy operation. This machine can do intermittent cutting and other six cutting methods: (1)
Several intermittent kiss-cutting, +one through-cutting, (2) Several kiss-cutting + one through-cutting (3)kiss-cutting +rewinding (4)intermittent kiss-cutting +rewinding function , (5) Through-cutting (6) Intermittent through-cutting
◎Taiwan Brand Servo motor & Japan brand PLC applied
◎Touch screen with the ability to save parameters
◎Cutting length and cutting speed adjustable
◎Both Kiss-cut and full-cut are available, 6 different cutting models available for your choice.
◎Save raw materials for no waste discharging
◎Unwinding roll material diameter can be customized
Several intermittent kiss-cutting, +one through-cutting, (2) Several kiss-cutting + one through-cutting (3)kiss-cutting +rewinding (4)intermittent kiss-cutting +rewinding function , (5) Through-cutting (6) Intermittent through-cutting
◎Taiwan Brand Servo motor & Japan brand PLC applied
◎Touch screen with the ability to save parameters
◎Cutting length and cutting speed adjustable
◎Both Kiss-cut and full-cut are available, 6 different cutting models available for your choice.
◎Save raw materials for no waste discharging
◎Unwinding roll material diameter can be customized
FEATURES AT A GLANCE
1. PLC+ touch screen+two servo controllers;
2. Six different working ways: several times of intermittent kiss-cut + one time of complete cut; several times of kiss-cut + one
time of full cut; all in kiss-cut +rewinding; all in intermittent kiss-cut+rewinding; all in full cut; all in intermittently full
cut;
3. Laminating and cutting can be finished at one time;
4. This machine is ergonomically designed.
5. This is a multifunctional machine that can cover your various needs;
6. High accuracy, fast reaction, and timely synchronization;
7. Significantly saving time and cost;
8. Operation is easy.
9. Waste rate is low.
10. Manufacturing experience: 10 years;
11. Export experience: 5 years.
2. Six different working ways: several times of intermittent kiss-cut + one time of complete cut; several times of kiss-cut + one
time of full cut; all in kiss-cut +rewinding; all in intermittent kiss-cut+rewinding; all in full cut; all in intermittently full
cut;
3. Laminating and cutting can be finished at one time;
4. This machine is ergonomically designed.
5. This is a multifunctional machine that can cover your various needs;
6. High accuracy, fast reaction, and timely synchronization;
7. Significantly saving time and cost;
8. Operation is easy.
9. Waste rate is low.
10. Manufacturing experience: 10 years;
11. Export experience: 5 years.
PRODUCT SPECIFICATIONS
Model |
HX-360JXS |
HX-500JXS |
HX-600JXS |
Voltage |
380V |
380V |
380V |
Power |
4P |
4P |
4P |
N.W. |
520kg |
580kg |
620kg |
GW. |
560kg |
600kg |
650kg |
Cutting Length |
0.1-9999.9mm |
0.1-9999.9mm |
0.1-9999.9mm |
Cutting Width |
1-360mm |
1-500mm |
1-600mm |
Measurement |
1700*840*1750mm |
1850*1200*1750mm |
2000*1400*1750mm |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Company Profile
We are a team of industry professionals with strong backgrounds in cutting, die cutting,slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years. Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years. Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
