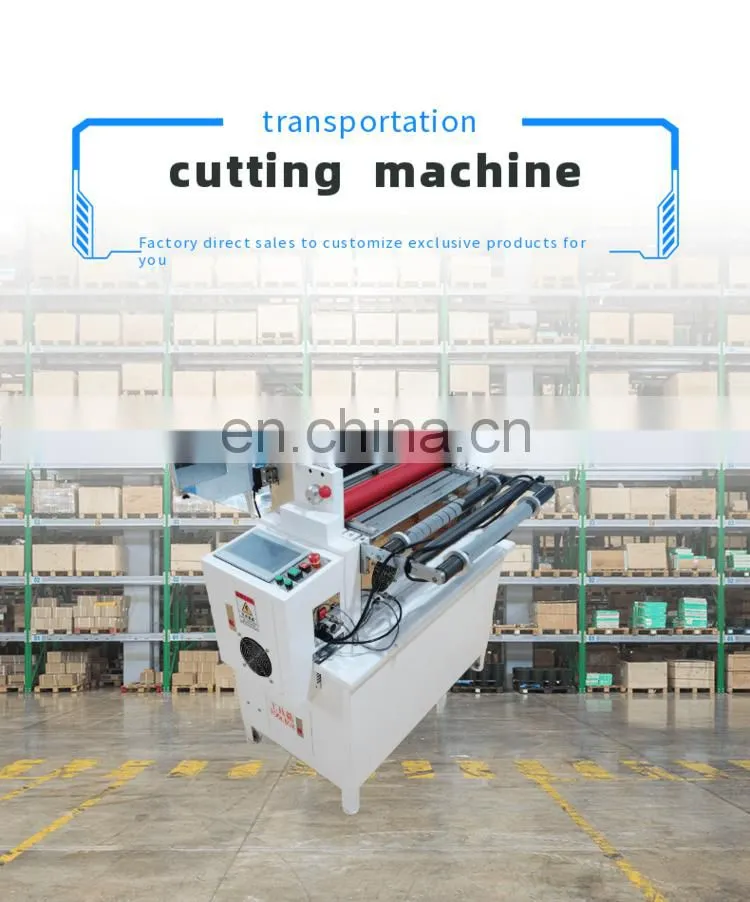

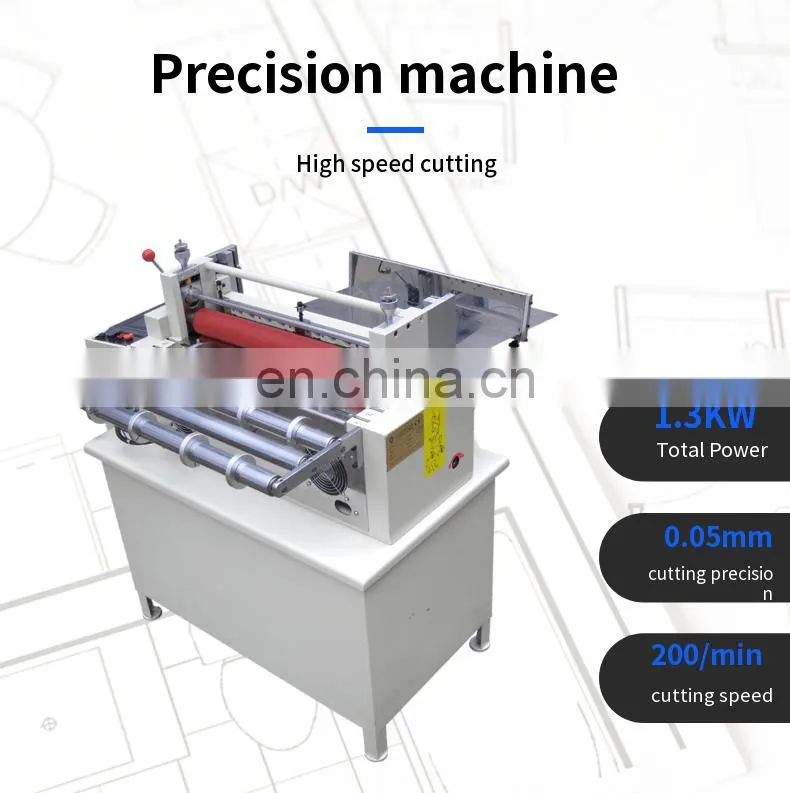

Microcomputer Auto HX-500B Belt Cutter Machine
Main Technical Parameter:
|
Model |
HX-500B |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting Width |
1~500mm |
|
Power |
1.5HP |
|
Voltage |
220V/380V |
|
N.W./ GW. |
240/260kg |
|
Measurement |
980x1450x1070mm |
Features:
1. The max width: 500mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Cut through for standard machine
9. Kiss cut is for optional
Characteristics:
1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For half cutoff with multi-cut, full cutoff with one-cut.
3. Five different cutting length can be set.
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. The cutting length is accurate.
6. Operation is easy.
7. Waste rate is low.
8. Manufacturing experience: 30 years
9. Export experience: 20 years
Application:
Sizing cutting for conductive fabric, foam, diffuser, reflector film, double-sided adhesive tape, nickel plate, PET, PC, PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
