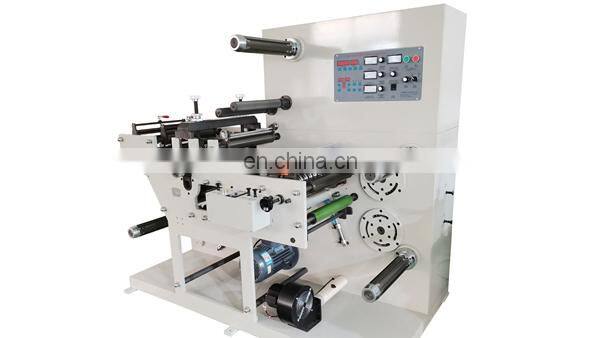

Customized Medical Dressing Rotary Die Cutting Machine

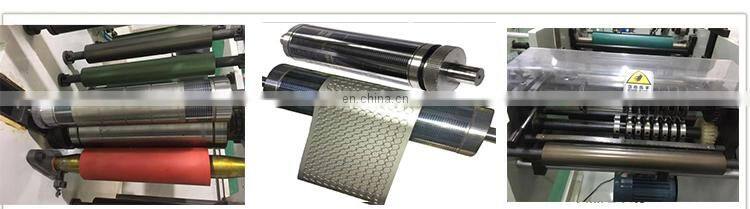

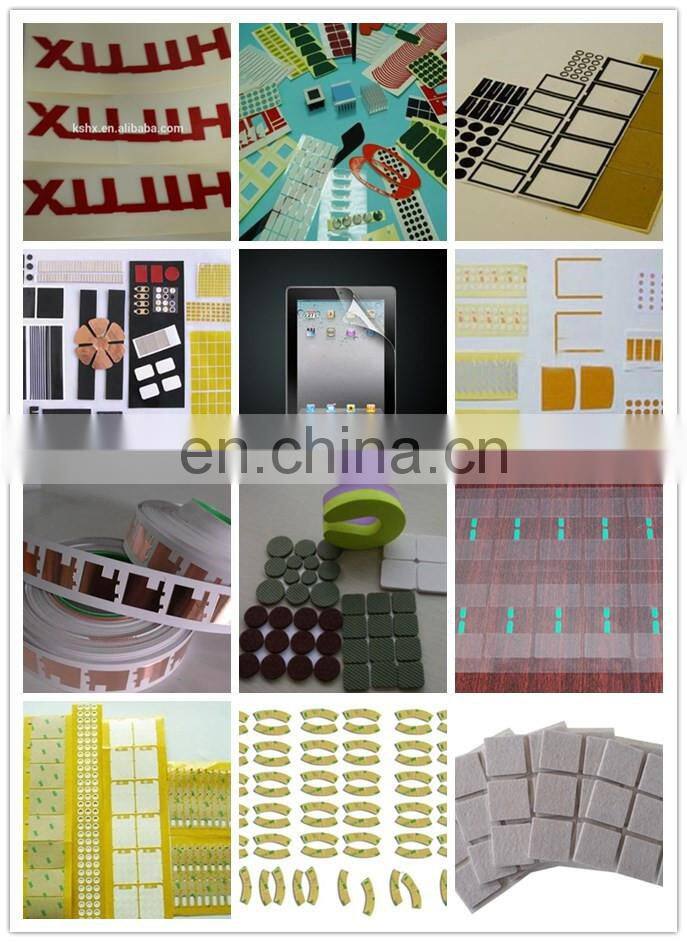

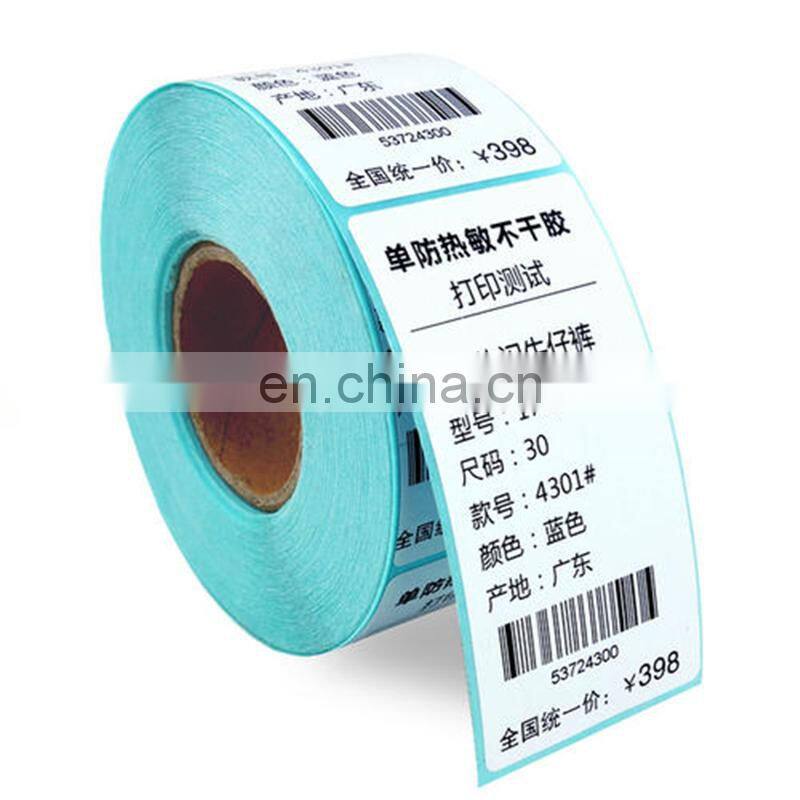

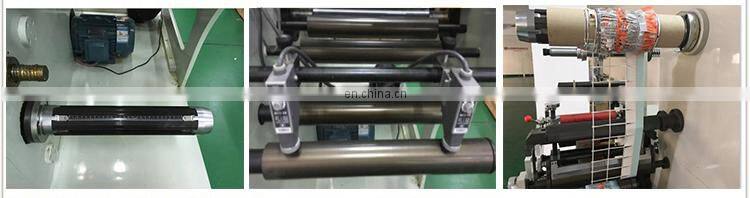

4.Material unwinding air shaft

 Material unwinding air shaft for automatic blank label rotary die cutting machine ,it supports a simple material roll with

light weight .better less than 40KG ,this shaft is connected with EPC system ,it can move left or right to keep material

at straight line

5.EPC photo cell

This machine is equipped with two sets of photo cells . It can sensor the edge of roll material ,make sure the material

goes in straight line into die cutting station .

6.Discharge waste roller

This machine is equipped with dischage waste roller with motor .

The speed and power is adjustable ,and discharge direction is changeable too .It's easy to discharge the waste material .

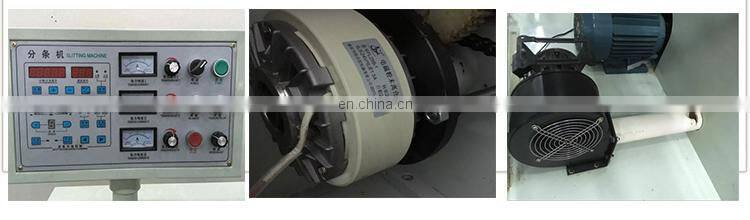

7.Control panel

You can control every functions in this control panel , the length ,piece quantity ,tension of each shaft ,die cutting speed ,

EPC system ,etc . It's convenient for workers to operate the machine .

8.Magnetic tension control

All the shafts for unwinder and rewinder are magnetic tension brake and clutch .

It's easy to control the tension at control panel .

9.Discharge waste air blower

This air blower is for trimming the edge of finished rolls . When slitting ,you need trim the edge by slitting blade ,and the waste

can be blow out of the machine by this air blower .

©EPC control system: photo cell

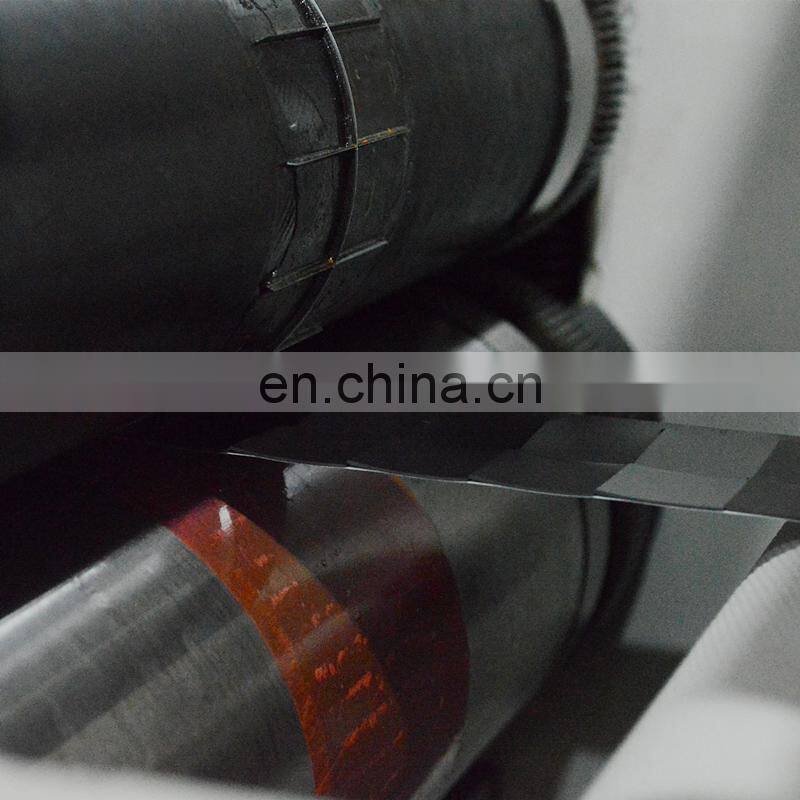

©Magnetic cylinder die cutting station

©Slitting station,min. slitting width 15mm

©Length counting function, automatic stop function when it reaches the set length.

©Piece counting function

©Waste discharge blower

©Magnetic brake & clutch

©Materials linking-up platform

©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.
