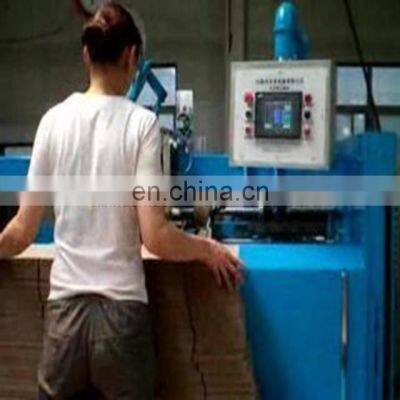

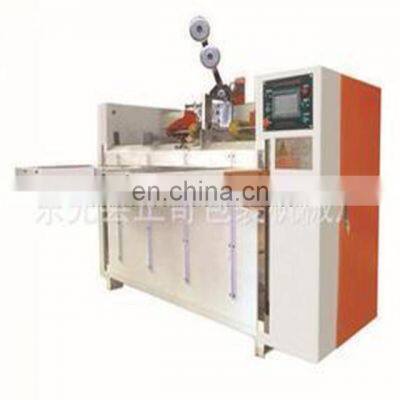

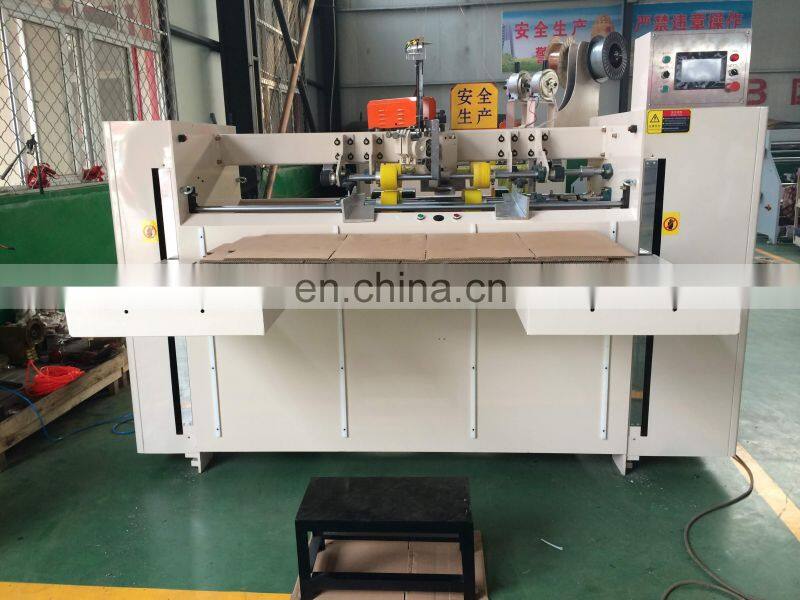

Semi auto stitcher carton machine Corrugated cardboard stapling machine
Product Introduction:
1. France Schneider imported four servo drive,precision accuracy, reducing the mechanical transmission part, which can effectively reduce the failure rate of the machinery
2. We in view touch screen operation parameters(distance, nail, nail nail, a rear baffle plate number, convenient and quick transformation)
3. The whole control system adopts OMRON PLC control system
4. After the electric baffle, using step motor drive, the size is accurate, the transform size more convenient.
5. The control box is full contactor adopts Siemens brand.
6. The photoelectric and proximity switches using the OMRON brand.
7. The bottom mold, wolfram steel blade used in Japan(Nai Mo)
8. The entire set of nail head all adopt the special steel manufacturing, computer gongs precision machine
9. It can nail nail///single , double screw, strengthening the nail(two double nail in the middle part of single screw) once completed can be suitable for different customer requirements of different kinds of nail
10. The transform carton size and adjusting nail carton from just one minute can be completed, greatly saves time and is convenient to operate.
11. It can nail a lid box& carton no cover (no cover box to nail in the case of ordering machinery must be noted when)
12. The front end to send automatic counting paper, paper feeding platform is provided with the photoelectric induction device, automatic rising feeder.
13. The following section has the function of automatic counting, finised cartons can be set according to the number (1-99) sub stack sent to the conveying machinery terminal, convenient bundling
14. The machine speed:500 nails per minute
15. The nail spacing:30-120mm adjustable
16. The paper pressing wheel gap electric adjustment
17. The working table lifting effective height: 900mm
18. Then machine covers an area of size: host2.8*2.7*2meters
19. Then machine weight:1.8T
20. The whole order adjustment can store 500 orders
|
SDJ-2000 |
max paper(A+B)*2 (mm) |
3600 |
min paper(A+B)*2 (mm) |
740 |
A mmMax carton length |
1120 |
A mmMix carton lengt |
250 |
B mmMax width |
760 |
B mmMin width |
120 |
(C+D+C) (mm)Max paper height |
3000 |
(C+D+C) (mm)Min paper height |
250 |
C(mm) |
560 |
C(mm) |
50 |
D(mm)Max height |
2000 |
D(mm)Min height |
150 |
(mm)Max tongue width |
40 |
mm stitch distance |
30-120 |
stitch No |
1-99 |
speed (/mim) |
500 |
(T)weight |
1.5 |
