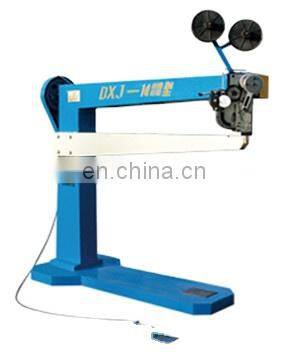

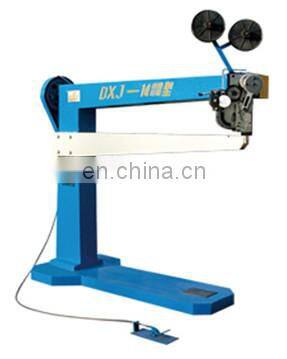

Corrugated Carton Stitching Machine Stapler Manual Machine

Corrugated carton stitching machine stapler manual machine

Main part and function introduction :

1. Schneider France original import four servo motor drive ,high precise with few mechanical driving part ,reduce the machine damage

2 .wenlun touch screen operation the parameter ( nail distance, nail number,nail types,tial gate ) change convinently

3 The whole machine control system use the omron plc control system

4..back electrical baffle use the stepper motor driven ,size accurate ,size changing is more convenient

5.The contractor in the control box adopt simense brand

5 .Display and circuit breaker adopt schneider ,photo electric switch and proximity switch adopt omron branch .

6. Bottom mould and blade adopt japan tungsten steel

7. Whole stitching head adopt special steel to make , computer digital processed

8 Machine have single nail / ,double nail//, strength nail // / / / //

9 Change the size only need one minute to finish,same as changing the stitching distance

10.Can stitch box with lid or box no lid ( when customer need the stitching no lid box must special order )

  11.With automatic counting function in the back part ,the finished carton can be delivery to the  end by pile ( as the setting number 1-99) ,it is convinnet to strap

  12 mechanic speed 500nail/min.

  13. Stitching distance 30-120mm, can be adjustable .

  14. press paper wheel gap 8 wheel adjust by electric

  15.machine work table max high 900mm

  16.The machine size 2.8x2.7x2m

  17.Machine weight  2tons

  18.Machine can store 600order

   19.. machine electrical separate ,  Isolated Transformer

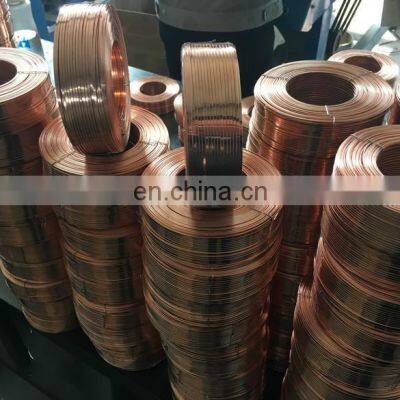

  20.Automatic wire feed system ,no wire alarm, 20kg big dics wire ,can save time
