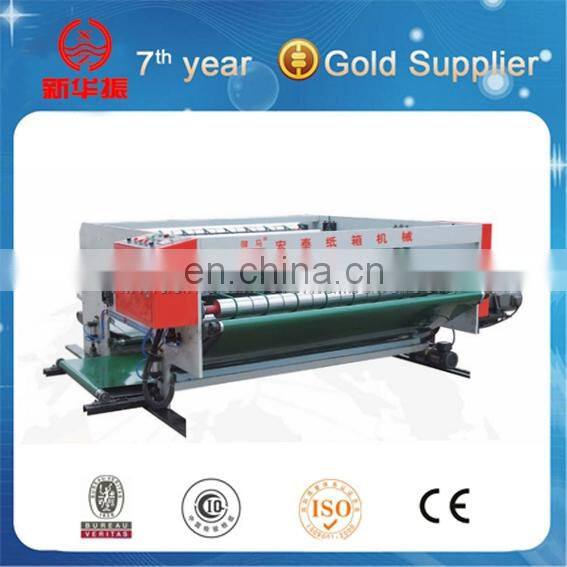

Rotary Die Board Cutter Machines

Sales Manager:amandazhang

Telephone:008618803075125

Whatapp:008618803075125

Functions and features:

Machine combination by the front circle pressure circle die cutting machine, stripping machine, double vibration machine of three parts, a complete corner cut, press line, slitting, waste, stacking, the whole process and ensure the accuracy and quality of cardboard, greatly save labor and improve work efficiency.


Die Cutting Part

1. Die cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating.

2. Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.

3. Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;

4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;

5. Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;

6. Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform;

7. 40cr material the use of grinding gears for 6,low noise long life;

8. Die cutting roller cylinder automatic separation devices to reduce wear pouches.

Paper Feeding Part

1. Adsorption automatic feeder, one-slotting, Cut corner, creasing, drilling.

2. Feed 10,000 per hour speed, precision die cutting from+0.75mm to-0.75mm

3. Phase planetary gear used electric adjustment, turn on and turn down were quick adjustment.

4. Before manually adjust block cardboard side block electric adjustment

5. Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy.

Computer Part

1. Man-machine interfaces, PLC precision control of the entire computer system

2. Main Motor Frequency Control.

3. On the control panel before and after the concise, easy to operate

4. The machine is by light, electricity, gas joint control system

5. Electrical accessories of the machine are brand-name.

Stripping Part

1. Low the machine consists of feed waste, collection of waste transport waste and walking lock.

2. Waste paper department is formed after import PU round belt transmission shaft transmission board, in the process of transmission through two vibration rod, make the cardboard in high vibration amplitude on the conveying belt so as to achieve waste effect.

3. Collection of waste transport department, there is a bidirectional collection of scrap export board to flash import output belt, output by belt conveyor to the side of machine, complete collection of waste transport function.

4. Lock, walking is walking by four pulleys to achieve the funtion of the machine and the host open and close, make the operation more convenient, lock consists of pneumatic components and lock cylinder, to make it work in fixed connection with the host formation.

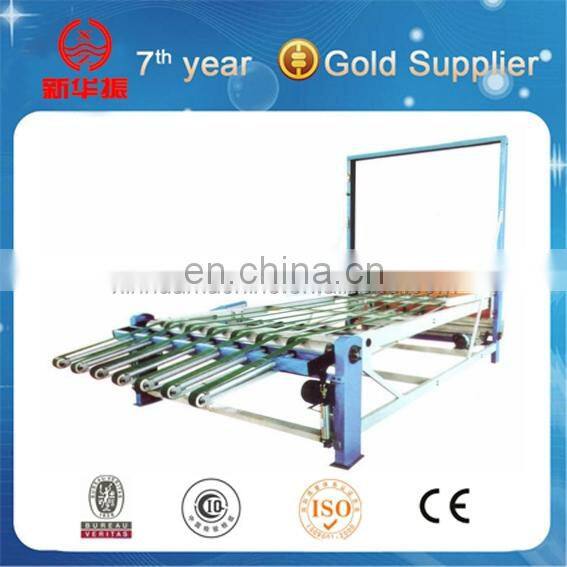

Type heap code machine:

1.Economic type: 6m; width:2.4m; max.feeding:2000*1400

2.30-160 pieces per minute, height of stacking: 1.7m, doubly stacking for one pile can be realized.

3. Two-section type anti-skidding convery belt, front section can be lifted up, which can be conveniently operated and maintained.

4. Frequeny conversion speed regulation, freely adjust work speed.

5. Paper-receiving part, convery belt can be lifted, lowered of disassembled by customers according to usage.

6. High cost anti-skid climbing belt is adopted for the convery belt. Eleva -tion angle: 30°. Paperboard cannot slip down.

7. Pneumatic full complete hpotoelectric control function and manual con-trol are adopted for lifting and lowering stacking system, witch can be conveniently used by operators.

1.     We need to test the machine working condition before delivery to customer country.

2.     If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.

3.     Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.

If any questions, send me email by 24 hours, we also help you solve these problems.

Dongguang XINHUA Packing Machinery CO., Ltd. is a modern company specialized in making carton packing machines and printing machines. Our company is located near the capital city – Beijing, with Tianjin Port in the north and Jinan city in the south. We enjoy convenient transportation.

We insist on the tenet of “quality first, good faith”. We follow the spirit of “Developing and Enterprising. Hard working and Facing the world, Strict Management, Keep improving”. “People oriented” is our idea, and “clients first” is our sales policy.

Our company produces various types of machines, with beautiful looking and various sizes to meet different clients’ requests. Our products have won great popularity because of good quality, timely delivery and good services. By adhering to the concept of “technology-based development; market request as orientation; cooperating with customers honestly”, we constantly develop new products, improve product quality and perfect after-sales services.

1.     Q: Are you a factory or trading company?

A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export license)

2.     Q: Where is your factory located? How can I visit here?

A: Our factory is located in Zhuwa industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up if you need.

Welcome to visit our factory!

3.     Q: What are your products?

A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.

4.     Q: How does your factory do regarding quality controlling?

A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose providing the products with excellent quality, professional technology XINHUA packing machinery CO., LTD always attach great importance to quality controlling from the very beginning to the very end.

1)    All raw material we used are environment-friendly

2)    Skillful workers care every details in handling the producing and packing process

3)    Quality control department specially responsible for quality in each process

5.     Q: How is the evaluation of the products?

A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enter reputation get the high praise at home and aboard.

6.     Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
