Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > 2000 Ton Hot Die Forging Press

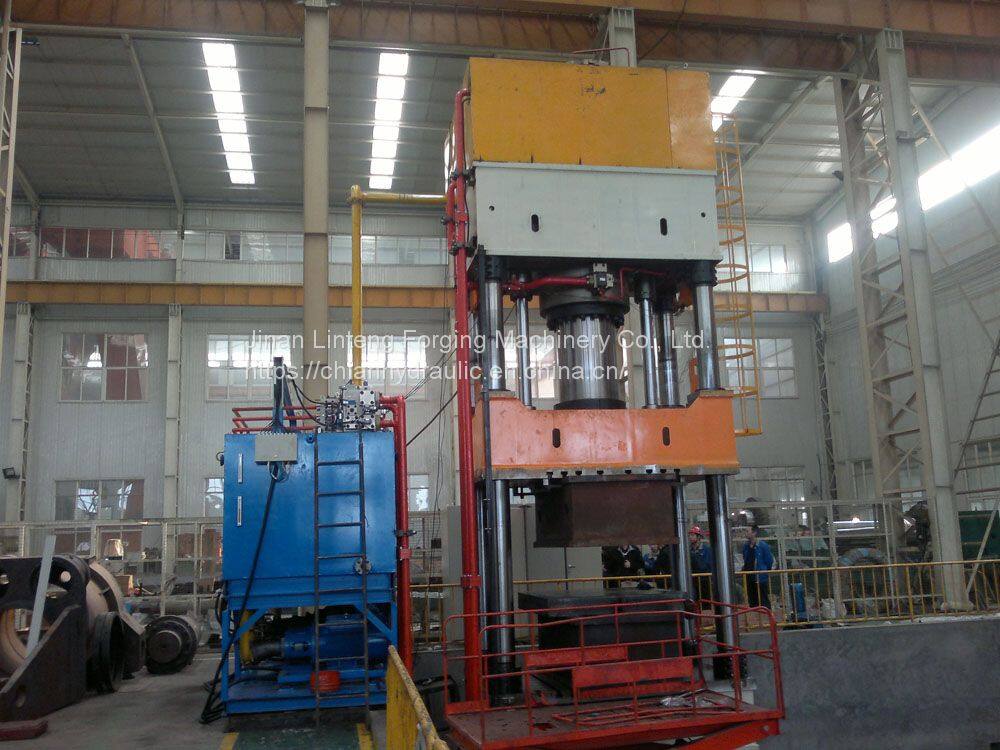

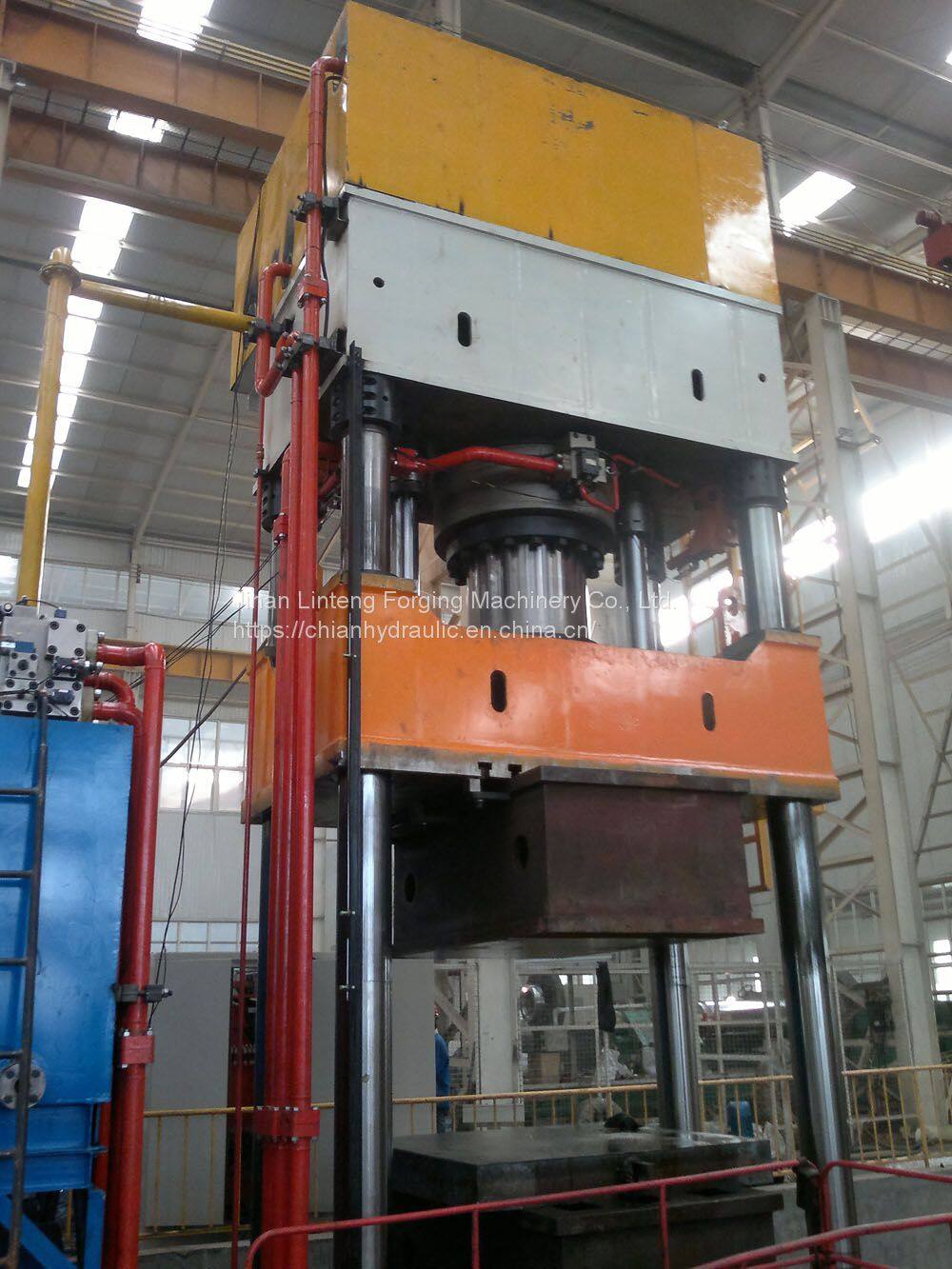

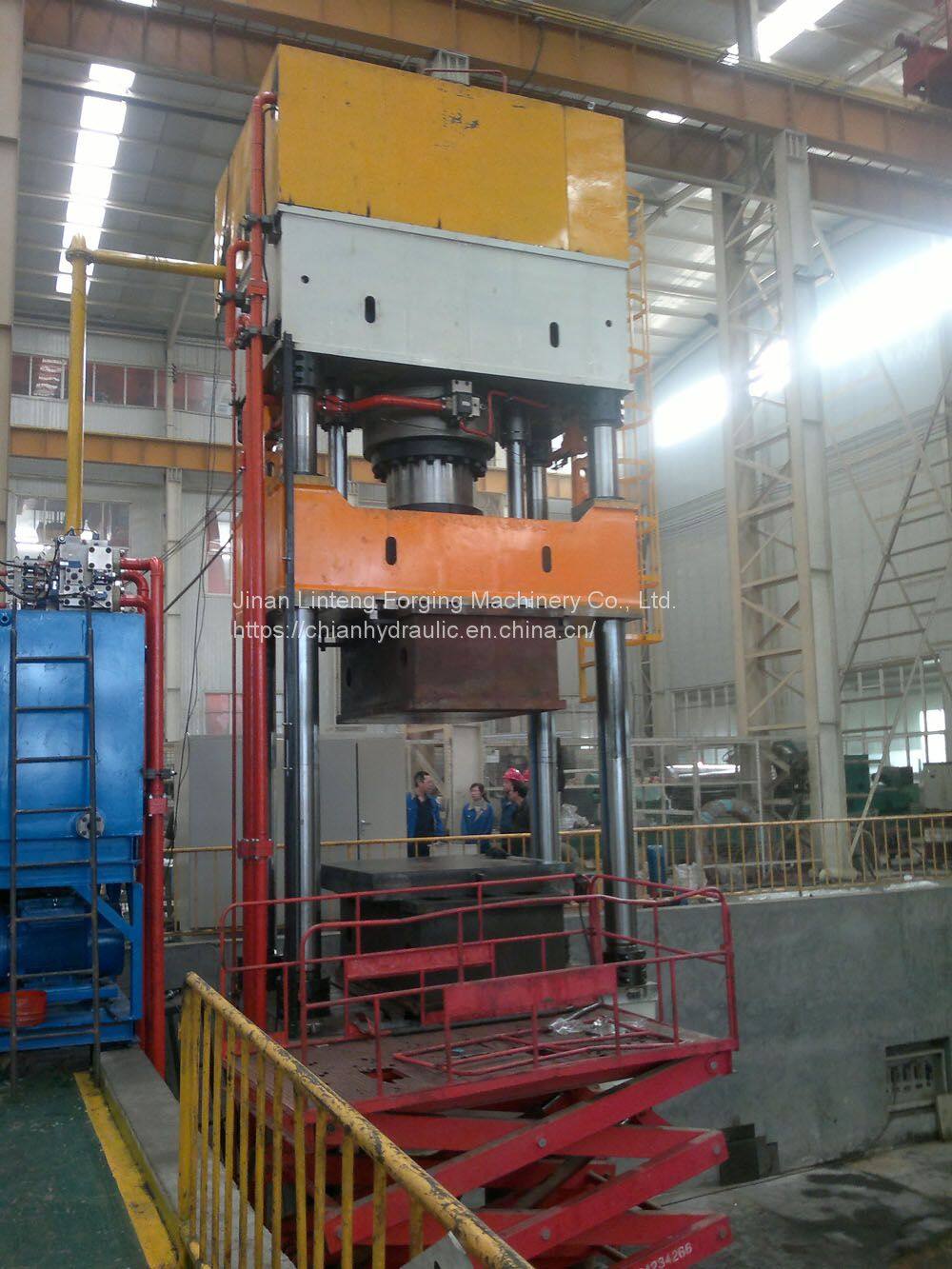

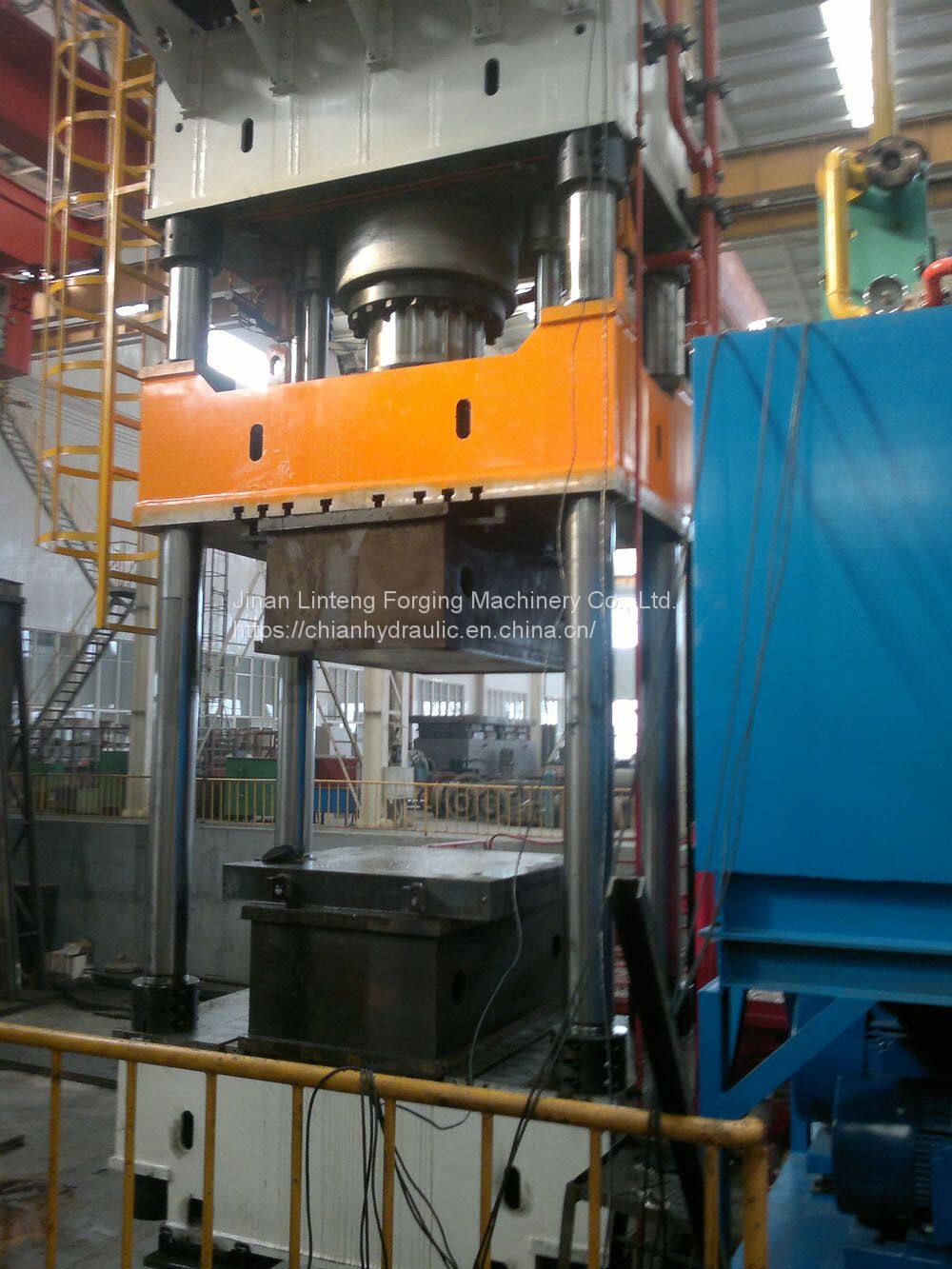

2000 Ton Hot Die Forging Press
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Certification:
CE
Warranty:
12months
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3150 Ton Frame Type Forging PressNegotiableMOQ: 1 Set -
5000t Hydraulic Oil Hot Die Forging PressNegotiableMOQ: 1 Set
-
20000 Ton Close Die Forging PressNegotiableMOQ: 1 Set
-
High-Frequency 6.3mn Hot Die Hydraulic Forging Press (630T)NegotiableMOQ: 1 Set
-
Perfect Quality 30000Ton Close Die Forging PressNegotiableMOQ: 1 Set
Place of Origin
China
Certification
CE
Warranty
12months
Weight
2000ton
Condition
New
Close die forging press
630t-50000t
Oil hydraulic
Working pressure 25MPa, 31.5MPa, 63MPa, 100MPa
Prestressing frame
Rexroth pump
Special designed cartridge valves
Siemens PLC
| ITEM | UNIT | MDYJ | MDYJ | MDYJ | MDYJ | MDYJ | MDYJ | MDYJ |
| -630 | -800 | -1250 | -2000 | -3150 | -5000 | -10000 | ||
| CAPACITY | KN | 6300 | 8000 | 12500 | 20000 | 31500 | 50000 | 100000 |
| WORKING OIL PRESSURE | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 75 |
| CAPACITY OF RETURN | KN | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2000 |
| CAPACITY OF PEAK | KN | 500 | 1000 | 1500 | 1500 | 2000 | 2500 | 2500 |
| DAYLIGHT | mm | 1200 | 1200 | 1200 | 1200 | 1500 | 1500 | 1500 |
| STROKE | mm | 600 | 600 | 600 | 600 | 800 | 1200 | 800 |
| SPEED AT APPROACH | mm/s | 200 | 200 | 250 | 250 | 250 | 300 | 100 |
| SPEED AT WORK(ADJUSTABLE) | mm/s | 150 | 150 | 100 | 100 | 50 | 3-15 | 3-15 |
| RETURN SPEED | mm/s | 200 | 200 | 250 | 250 | 250 | 300 | 100 |
| DIMENSION OF SHIFTING TABLE(L-R) | mm | 1000 | 1400 | 1000 | 1000 | 2000 | 2500 | 2500 |
| DIMENSION OF SHIFTING TABLE(F-A) | mm | 1000 | 800 | 1250 | 1250 | 1500 | 2000 | 1500 |
