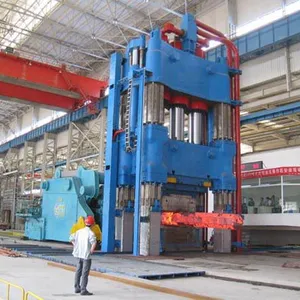

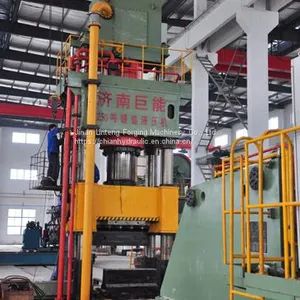

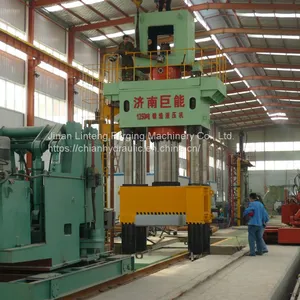

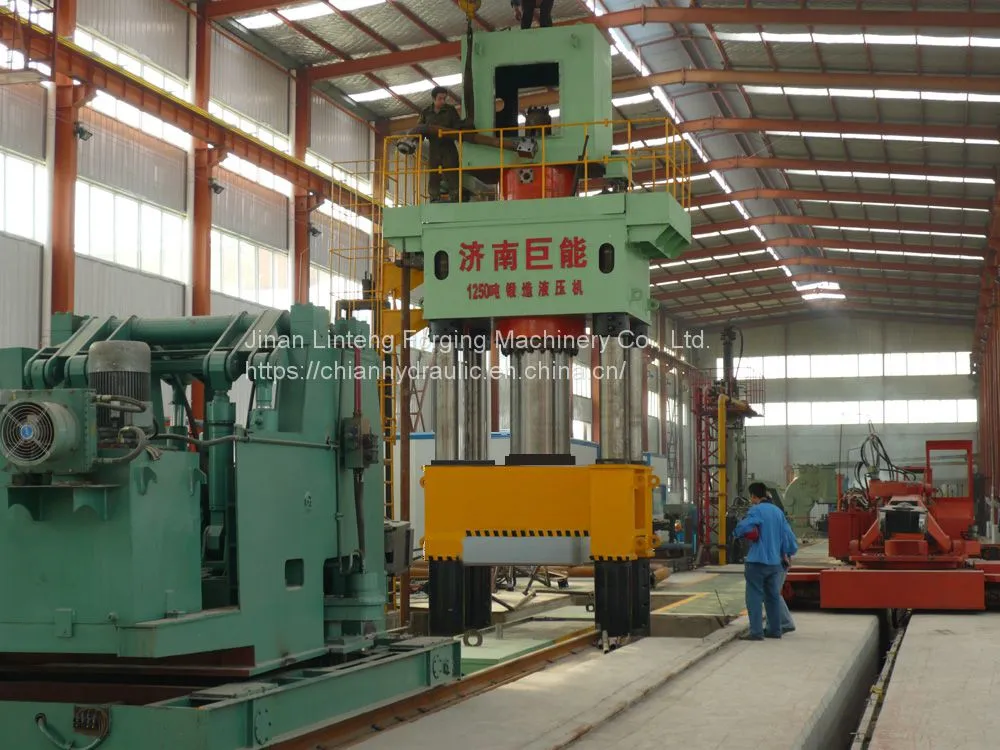

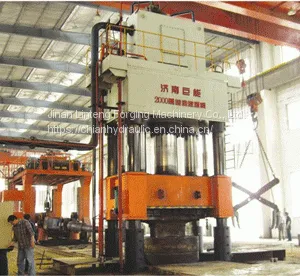

Hot Sale Zdyj-1250ton Open Die Hydraulic Forging Press
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
You May Like
Product Details
| Place of Origin | China | Certification | CE | |
| Warranty | 12months | Weight | 1250ton | |
| Condition | New |
Product Description

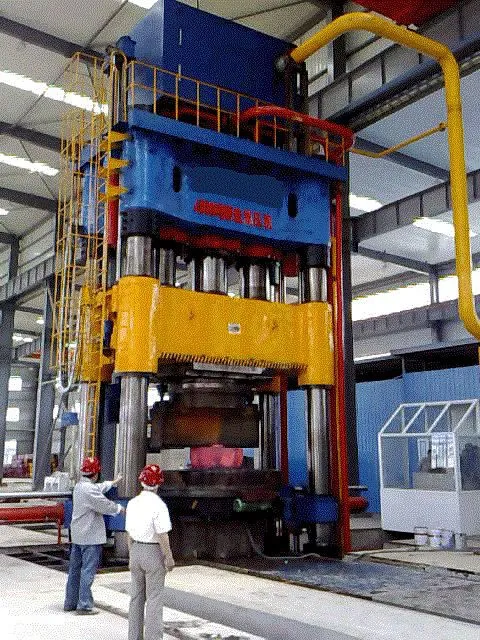

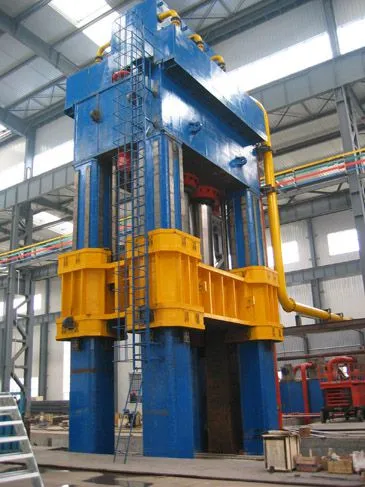

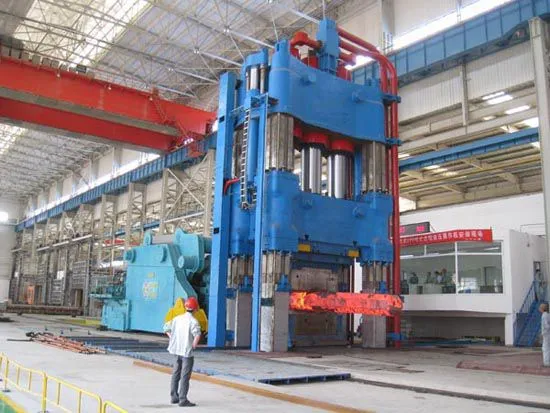

Open die forging press
800t-15000t
Oil hydraulic
Working pressure 25MPa, 31.5MPa, 63MPa, 100MPa
2-column / 4-column
Prestressing frame
Welding beam / casting beam
Moveable working table
Rotary forging table
Rexroth pump
Special designed cartridge valves
Siemens PLC
| ITEM | UNIT | ZDYJ-8MN | ZDYJ-10MN | ZDYJ-12.5MN | ZDYJ-16MN | ZDYJ-20MN | ZDYJ-25MN | ZDYJ-31.5MN | ZDYJ-3500 | ZDYJ-4000 | ZDYJ-4500 | ZDYJ-5000 | ZDYJ-6000 | ZDYJ-8000 | ZDYJ-12000 |
| CAPACITY | KN | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 31500 | 35000 | 40000 | 45000 | 50000 | 60000 | 80000 | 120000 |
| WORKING OIL PRESSURE | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 28.5 | 25 | 25 | 25 | 25 | 25 |
| DAYLIGHT | mm | 2500 | 2500 | 2500 | 3000 | 3000 | 3900 | 4000 | 4000 | 4000 | 4500 | 4500 | 6000 | 6500 | 7000 |
| STROKE | mm | 1300 | 1300 | 1300 | 1400 | 1600 | 1800 | 2000 | 2500 | 2500 | 2500 | 2500 | 2600 | 3000 | 3000 |
| DISTANCE BETWEEN COLUMNS CENTER | mm | 2200×1260 | 2200×1260 | 2200×1260 | 2900×1550 | 2950×1500 | 3400×1600 | 3500×1900 | 4500×2000 | 4500×2000 | 4350×2150 | 3800 | 4200 | 4500 | 5000 |
| DIAMETER OF COLUMN | mm | 280 | 280 | 320 | 330 | 400 | 470 | 500 | 520 | 520 | 580 | Prestressing frame | Prestressing frame | Prestressing frame | Prestressing frame |
| DIMENSION OF SHIFTING TABLE | mm | 3600×1300×300 | 3600×1300×300 | 3600×1300×300 | 4000×2000×300 | 4200×1600×300 | 5000×2000×350 | 6000×2000×350 | 6000×2200×400 | 6000×2200×400 | 7000×2400×400 | 8000×3000×400 | 9000×3400×400 | 9500×3600×400 | 10000×4000×400 |
| STROKE OF SHIFTING TABLE | mm | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | 4000 | 4400 | 4400 | 4500 | 4500 | 6000 | 6500 | 7000 |
| CAPACITY OF RETURN | KN | 1000 | 1500 | 1500 | 1700 | 1500 | 2000 | 2000 | 2500 | 2500 | 4000 | 3800 | 6500 | 8000 | 10800 |
| WORKING POSITIONS OF SHIFTING TABLE | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| ECCENTRICITY DIMENSION OF FORGING | mm | 120×80 | 120×80 | 150×75 | 150×75 | 150×100 | 150×100 | 150×120 | 200×150 | 200×150 | 200×150 | 200×150 | 200×150 | 200×150 | 250×200 |
| GRADE NUMBERS OF CAPACITY | 1 | 1 | 1 | 2 | 3 | 2 | 2 | 3 | 3 | 2 | 3 | 3 | 2 | 3 | |
| FIRST CAPACITY | KN | 8000 | 10000 | 12500 | 10000 | 7000 | 15000 | 15000 | 15000 | 17000 | 25000 | 20000 | 20000 | 40000 | 40000 |
| SECONDLY CAPACITY | KN | 16000 | 14000 | 25000 | 31500 | 20000 | 23000 | 45000 | 30000 | 40000 | 80000 | 80000 | |||
| THIRDLY CAPACITY | KN | 21000 | 35000 | 40000 | 50000 | 60000 | 120000 | ||||||||
| PRESSING SPEED AT APPROACH | mm/s | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 250 | 250 | 250 |
| PRESSING SPEED AT FIRST CAPACITY | mm/s | 74 | 66 | 60 | 67 | 195 | 114 | 137 | 170 | 170 | 126 | 155 | 190 | 120 | 120 |
| PRESSING SPEED AT SECONDLY CAPACITY | mm/s | 42 | 97 | 68 | 55 | 126 | 126 | 69 | 100 | 106 | 80 | 80 | |||
| PRESSING SPEED AT THIRDLY CAPACITY | mm/s | 65 | 72 | 72 | 60 | 53 | 40 | ||||||||
| RETURN SPEED | mm/s | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 250 | 250 | 250 |
| SPEED OF SHIFTING TABLE | mm/s | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 180 | 200 | 150 | 150 | 150 |
| ACCURACY OF SHIFTING TABLE MOVING | mm | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| DEGREE OF FORGING | times/min | 60 | 60 | 60 | 60 | 45 | 45 | 45 | 45 | 45 | 30 | 40 | 40 | 35 | 30 |
| CARRYING CAPACITY OF SHIFTING TABLE | T | 20 | 20 | 20 | 25 | 35 | 40 | 50 | 160 | 160 | 180 | 160 | 200 | 250 | 300 |
| SHIFTING TABLE HEIGHT ABOVE FLOORLEVEL | mm | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| TOTAL POWER | KW | 660 | 880 | 880 | 1320 | 1540 | 1760 | 2200 | 2860 | 2860 | 3300 | 3560 | 3960 | 5280 | 5280 |
| WEIGHT OF PRESS(TOTAL) | T | 160 | 180 | 200 | 230 | 290 | 320 | 440 | 480 | 480 | 760 | 910 | 1100 | 1700 | 2100 |
| OVERALL HEIGHT ABOVE FLOOR LEVEL | mm | 7800 | 8000 | 8100 | 8500 | 9000 | 10000 | 11000 | 12500 | 12500 | 13500 | 12500 | 15700 | 17500 | 18300 |
