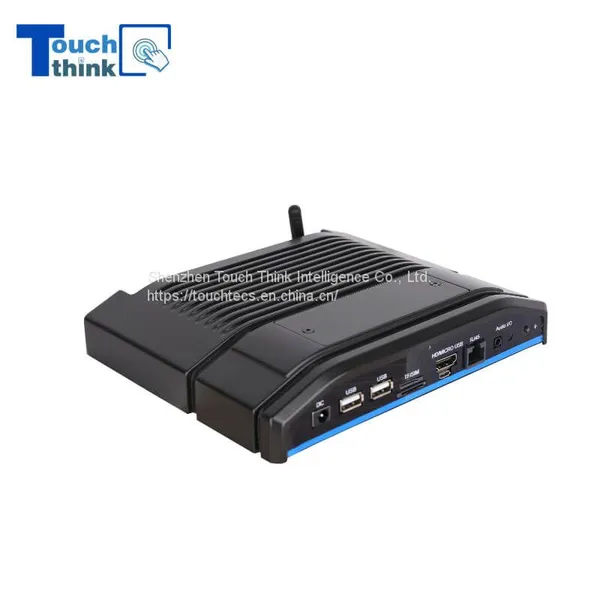

Fanless Embedded Computers Mini Size Industrial PC Android Box PC
Size: 199*158*42mm
Touch Think Industrial Android Embedded Computer
Model: TPC-IOP-100
Touch Think fanless embedded industrial mini PCs are designed with a slim body, well-embedded into cabinets, supports multiple modules customization and I/O expansion, support remote controlling and monitoring. They offer reliable and stable performance in harsh environments, such as manufacturing facilities, warehouse floors, forklifts, and other vehicles for 7x24hrs.
Generally speaking, an industrial embedded computer is an embedded system as an application-centric computer. For embedded systems, it is based on computer technology, and the software and hardware can be tailored. It is suitable for application systems to function, reliability, cost, The special computer system with strict requirements on volume and power consumption is generally composed of four parts: embedded microprocessor, peripheral hardware equipment, embedded operating system, and user's application program.
Industrial Embedded Computer Features
• Touch Think Android Box PC system: Supports Android 6.0/7.1/9.0/10.0 OS.
• Default configuration: 2G DDR3/8G SSD ,Upgradeable 2G DDR3/16G ;SSD 4G DDR3/ 32G SSD, etc.
• Rich I/O ports: WiFi, VGA, COM*2, 4G Antenna, DC, USB, TF/SIM, HDMI, RJ45, Audio I/O, RCE, GND, etc.
• High and low-temperature resistance: -20° ~ +65°C.
• Support stackable extension design, option extension kit for different applications.
• Fanless heat-dissipation design: fanless and no noise design, aluminum alloy material structure, improve heat dissipation efficiency.
• Strong environmental adaptability: The embedded PCs are designed for harsh conditions, like vibrate, dusty, electromagnetic interface environments.
• High stability, long service life, equipped with the industrial mainboard, and strong compatibility.
• Touch Think industrial PCs are widely used in manufacturing, production control, transportation system, etc.
APPLICATION
Fanless industrial mini PC for a particular type of application, based on computer technology, provides software and hardware integration platform, suitable for applications that require higher reliability, cost-effectiveness, and power consumption. Fanless industrial mini PC has been widely used in the network, communications, power, ticket vending machine, rail transit, self-service terminals, medical equipment, vehicle equipment, industrial automation, machine vision, industrial robots, and other industries.
OEM/ODM
We provide OEM/ODM customization service for global customers, please feel free to contact us for details.
PRODUCT PARAMETERS
Hardware Configuration |
CPU |
JWS-A64 Cortex-A53 quad-core 1.5GHz; LPDDR3 default 2G, Android 6.0 |
EMMC |
8G EMMC (16G/32G EMMC optional) |
|
Inner Memory |
1G/2G DDR3 (4G DDR3 optional) |
|
Display Chip |
Mali400MP2 dual-core |
|
Operating System |
Android 6.0 |
|
Graphics Card |
Intel HD Graphics |
|
3G/4G Module |
Available |
|
WIFI |
Dual-frequency 2.4/5G |
|
Bluetooth and GPS |
Available |
|
MIC |
Available |
|
RTC real-time clock |
Available |
|
Wake on LAN |
Available |
|
Plug-and-play |
Available |
|
Speaker |
Available |
|
Interface Parameters |
USB interface |
2*USB HOST; 1*MICRO USB(OTG) |
Serial ports |
Two-channel 232 serial ports, 422/485 optional |
|
WIFI connector |
WIFI antenna *1 |
|
Power interface |
DC 12V*1 |
|
HD interface |
HDMI*1 |
|
Expansion display |
VGA*1 |
|
NIC interface |
RJ-45*1 |
|
Audio interface |
Audio I/O |
|
I/O expansion |
Available |
|
Other Parameters |
Working temperature |
-20°C ~ 65°C |
Storage temperature |
-40°C ~ 80°C |
|
Ambient humidity |
20% - 95% (relative humidity non condensing) |
