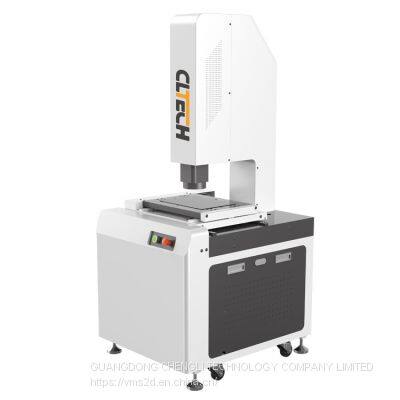

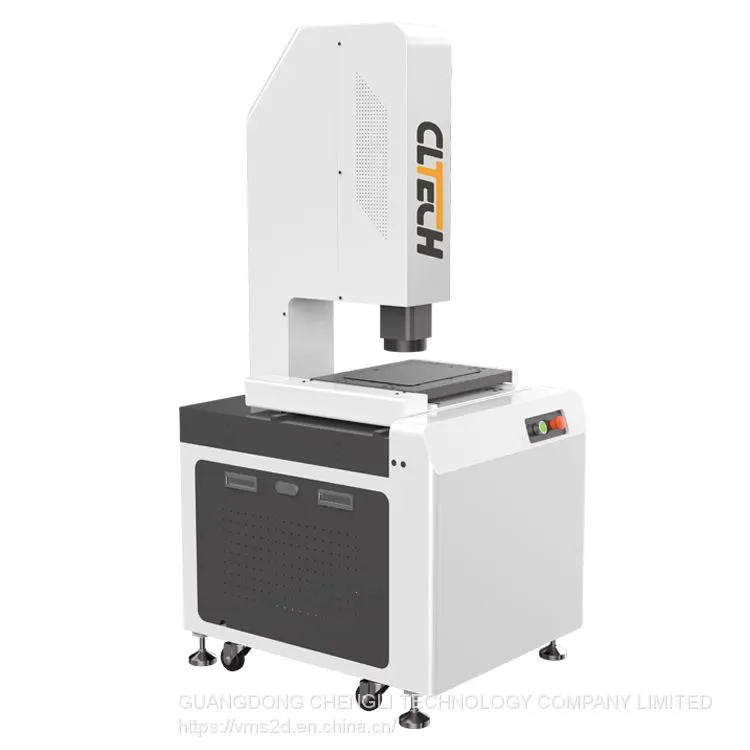

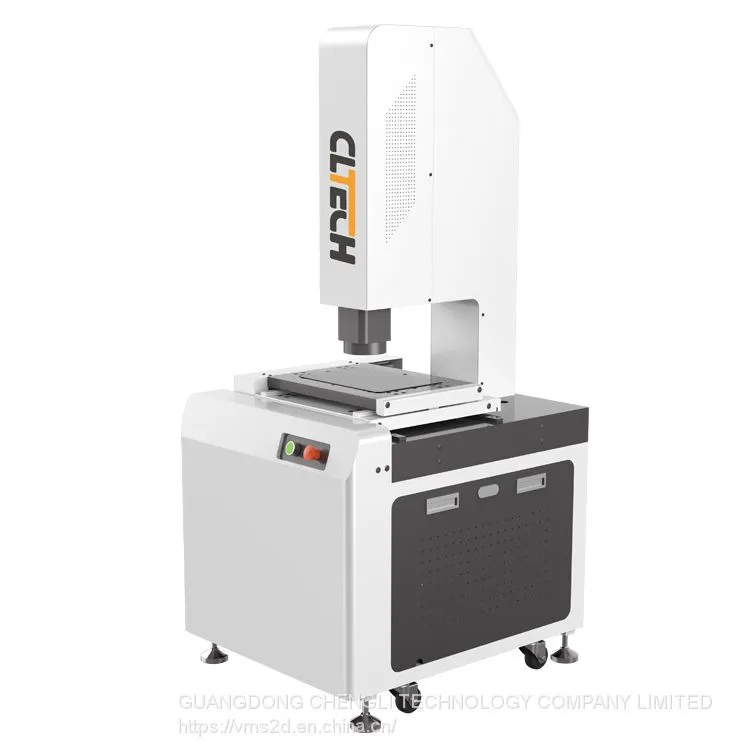

CTL-3020FA Non-Contact CNC Vision Measuring Machine for PCB Automatic Measurement
- 100 Set / Sets per Month
- shenzhen
- T/T PayPal Cash
- 7 days
- PPG-20153MD Lithium Batteries Thickness Gauge / PPG Manual Type Thickness Instruments
- Semi-Automatic PPG-60405ELS-500KG Thickness Gauge for Measuring Aluminum Shell Batteries
- CLT-6080BA Bridge Type Automatic Vision Measuring Machine From Chengli Technology
- Manual PPG Thickness Gauge / PPG-25083M Lithium Battery Thickness Tester
- Automatic Vision Measuring Machine with Keyence laser and Renishaw MCP Probe
- Fully automatic vision measuring machines & SMU-3020EA video measuring instruments supplier
Product Details
Brand Name: | Chengli | Place of Origin: | China | Model Number: | CTL-3020FA |
Product Description
CTL-3020FA Fully-Automatic Video Measuring Machine Manufacturer
Features:
* Independently research and development of full-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate
* The machine can be operated by levers or by software programming
* Program controlled data processing is helpful for large-scale workpiece measurement
* The servo motor is controlled on the X, y and Z axes, with fast positioning speed, high accuracy and stable movement
* Independently embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation
* 3 ring cold light source is suitable for the measurement of precision workpieces. The laser indicator can quickly locate the position of workpieces
* Optional auto zoom lens, laser shifter, MCP probe for customers to choose
Application:

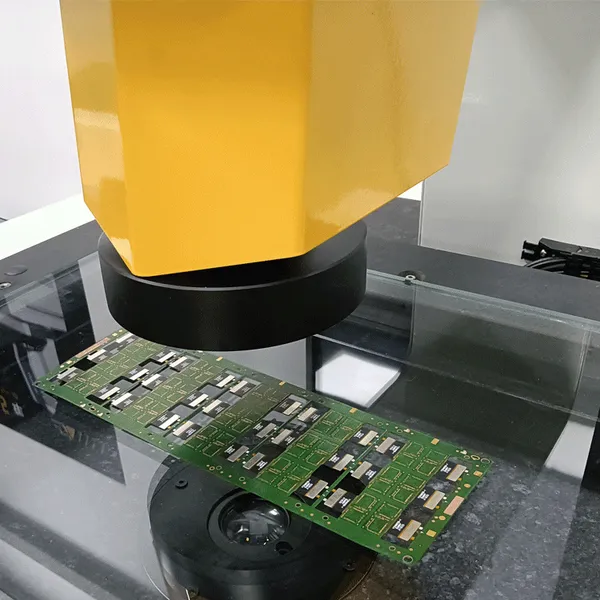

Widely used in mechanical, electronic, instrument, plastic and other fields of CNC video measurement system, especially in non-contact measurement, rapid batch measurement, precision workpiece measurement and other fields
Specifications:
Model | CLT-3020FA | CLT-4030FA |
X/Y/Z measurement stroke | 300×200╳200mm | 400×300╳200mm |
Z axis stroke | Effective space: 200mm, working distance: 90mm | |
XYZ axis base | X/Y mobile platform:00 grade Ji'Nan green marble; Z axis column: square steel | |
Machine base | 00 grade Ji'Nan green marble | |
Size of glass countertop | 340×240mm | 440×340mm |
Size of marble countertop | 460×460mm | 560×560mm |
Bearing capacity of glass countertop | 30kg | |
Transmission type | X/Y/Z axis: Hiwin P-grade linear guides and C5 grade ground ball screw | |
Optical scale resolution | 0.0005mm | |
X/Y linear measurement accuracy (μm) | ≤2+L/200 | ≤2.5+L/200 |
Repetition accuracy (μm) | ≤2 | ≤2.5 |
Camera | Hikvision 1/2″ HD color industrial camera | |
Lens | Self-developed automatic zoom lens optical magnification: 0.6X-5.0X image magnification: 30X-300X | |
Image system | Image software: it can measure points, lines, circles, arcs, angles, distances, ellipses, rectangles, continuous curves, tilt corrections, plane corrections, and origin setting. The measurement results display the tolerance value, roundness, straightness, position and perpendicularity. The degree of parallelism can be directly exported and imported into Dxf, Word, Excel, and Spc files for editing which is suitable for batch testing for customer report programming. At the same time, part of and the entire product can be photographed and scanned, and the size and image of the entire product can be recorded and archived, then the dimensional error marked on the picture is clear at a glance. | |
Image card: intel gigabit network video capture card | ||
Illumination system | Continuously adjustable LED light (Surface illumination +contour illumination), with lower heating value and long service life | |
Overall dimension(L*W*H) | 950×830×1600mm | |
Weight(kg) | 250kg | 270kg |
Power supply | AC220V/50HZ AC110V/60HZ | |
Computer | Intel i5+8g+512g | |
Display | Philips 27 inches | |
Warranty | 1 year warranty for the whole machine | |
Switching power supply | Mingwei MW 12V/24V |
Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team
Note: the object view is equal to the length of the diagonal
