12x Coaxial linear motorized automatic motored zoom lenses with low distortion 0.6x~0.72x optical zoom
Datasheet Download: SLMZ12X0672CO
0.7x~4.5x 1" Coaxial Linear Zoom Telecentric Lenses 0.002% Low Distortion Machine Vision FA Industrial Megapixel Lens Measurement Camera
High resolution : 3.8μm at 4.5x
Large format: 1" size covering 2/3", 1/2" camera
Magnification : 0.7x ~ 4.5x
Low distortion : Low distortion 0.002% for measurement and vision
Application : Automation, machine vision, medical, life science, measurement.

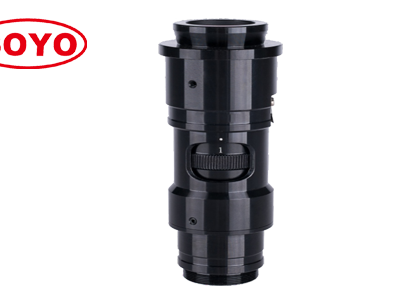

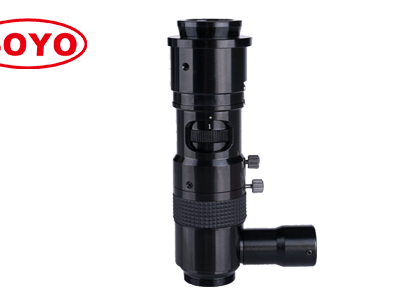

1. Focus type Linear Zoom Lens 2. Co-axial Focus type Linear zoom lens
Model |
STZ0745C-M / STZ0745CF-M |
|||||
Zoom range |
0.7x ~ 4.5x |
|||||
Magnification(x) |
0.7x |
1.0x |
2.0x |
3.0x |
4.0x |
4.5x |
Resolution |
11.2μm |
9.6μm |
6.5μm |
4.9μm |
4.0μm |
3.8μm |
Depth of field (mm) |
2.4mm |
1.3mm |
0.4mm |
0.2mm |
0.1mm |
0.1mm |
Number aperture |
0.03 |
0.035 |
0.051 |
0.068 |
0.083 |
0.088 |
Distortion |
0.04% |
0.079% |
0.07% |
0.064% |
0.004% |
0.002% |
Angle of view ° |
2/3" |
21*17*12.5 / 3.25*2.6*1.95 |
||||
1/2" |
15.1*12.1*9.06 / 2.37*1.9*1.42 |
|||||
1/3" |
11.3*9.1*6.8 / 1.8*1.42*1.1 |
|||||
Working distance |
93 +/- 2mm |
|||||
Format |
1" (Φ16) |
|||||
Mount |
C / F Mount |
|||||
Humidity |
+10 ~ 35°C |
|||||
Temperature |
20~80% RH ( No Condensation ) |
|||||
Marks |
Focus function, coaxial function |
|||||
