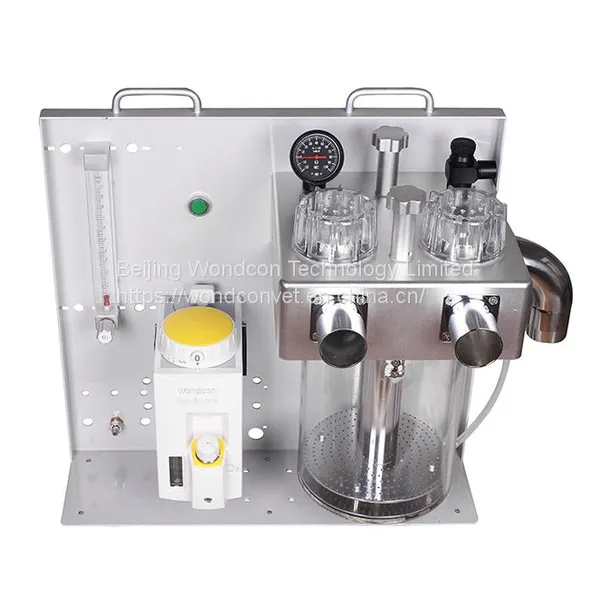

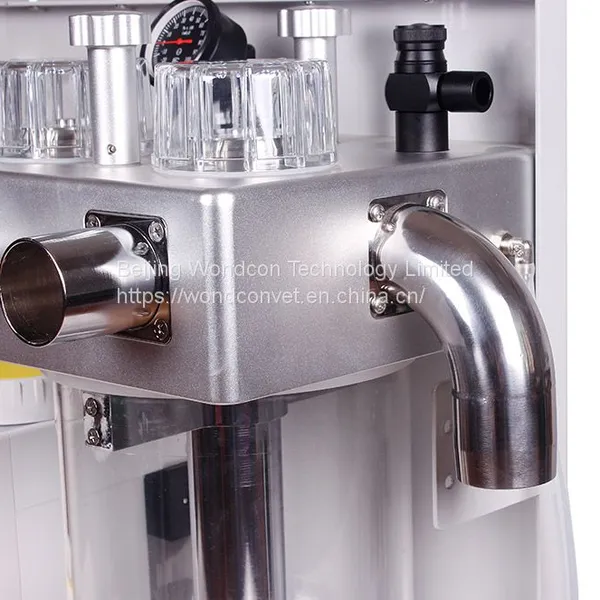

WMV680D Equine Anesthesia Machine-Large Animal WONDCON Veterinary Anesthesia Machine
WMV680D Equine Anesthesia Machine is designed for use with Equine. Bovine. Zoology. and other large animal anesthesia techniques
PRODUCT DETAILS
Feature:
Respiration mode:Manual.open.closed.semi-open and semi-closed mode
Gas source:O2.0.3--0.4Mpa
O2 Flush:25L/min- -75L/min
Flow meter:high precision O2 flow meter. 0--1L/min--10L/min. O2&N2O or O2&N2O two tubes flow meter is option.
CO2 circle absorber: With soda lime chamber. APL valve. airway pressure gauge. inspiration valve and expiration
valve. the inspiration and expiration valve is demo-type and visible.
Airway pressure gauge: -20cmH2O--100cmH2O &-2Kpa--10Kpa
APL valve:adjustable easily. range:0-60cmH20
Soda lime chamber: 8Liter. it is easy to change soda lime and used for over 1000kg animal
Three methods: Table top and trolley and wall mounting arm. trolley is optional and wall mounting arm is optional
Bains connector: It is used for open breath circuit. connect with Jackson breath circuit or bains breath circuit.
Back bar: Supply selectatec compatiable mounting bar.ISO 23mm is compatiable
Anesthesia vaporizer: TEC3 vaporizer. Enflurane. Isoflurane. Halothane. Sevoflurane. one vaporizer with selectatec compatiable mounting bar. Cage mounting vaporizer is compatiable.
Trolley: There is a trolley to transport it.The trolley is optional.
Tidal Volume: 5000-15000ml
Standard configuration
Anesthesia machine with vaporizer,Disposable breath circuit, Reserve bag
O2 gas source pipeline,Stand
Optional configuration
Animal mask ,Bird mask ,Laryngoscope Endotracheal intubation
Rescue and Resuscitation,Bains breathing circuit,T-piece anesthesia breathing circuit
Reusable breathing bag,Disposable absorber of anesthesia exhaust gas
Anesthesia ventilator, ETCO2 monitor ,SPO2 monitor Patient monitor,Oxygen concentrator
Oxygen concentrator-anesthesia machine Stand, Anesthesia machine-ventilator stand
Induction Chambers
