Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Angle > 317L Stainless Steel Sheet

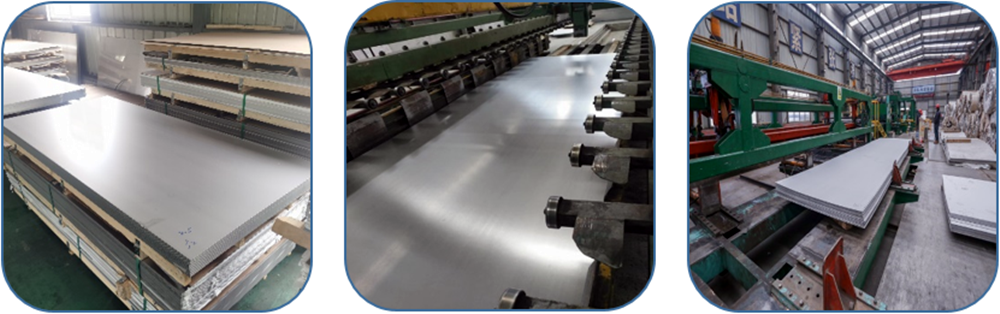

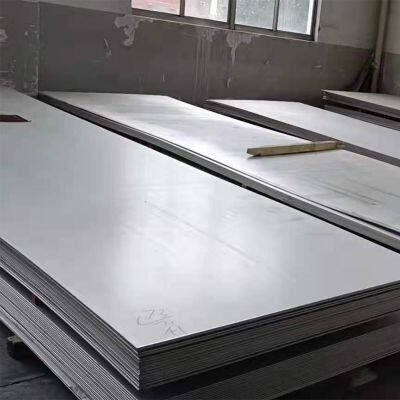

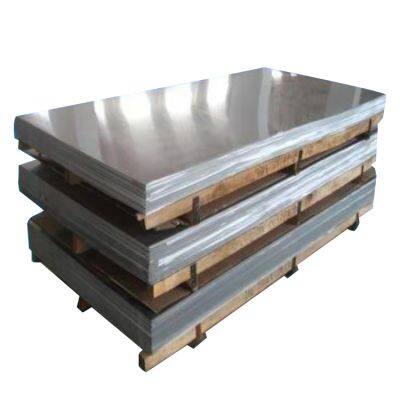

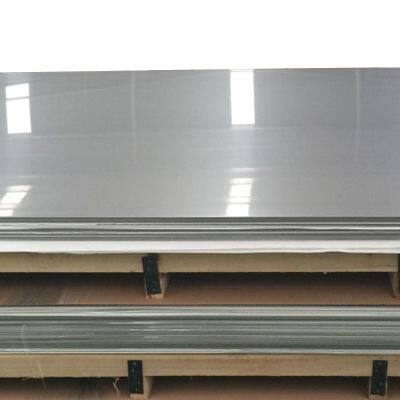

317L Stainless Steel Sheet

Name: 317L Stainless Steel Sheet
Brand: Juye
SKU: 169039545
Availability: InStock

US$ 3500 - 4000 MOQ: 1 Ton

Key Specifications

Get Latest Price

Brand Name:

Juye

Place of Origin:

China

Model Number:

304-304L-321-316L

Contact Supplier Request Quote Chat Now

Jinan Juye Metal Products Co., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Juye

Place of Origin China

Model Number 304-304L-321-316L

Certification ISO

Type Equal

Application Juye

Standard AISI, ASTM, EN, GB, JIS

Grade 300 Series

About

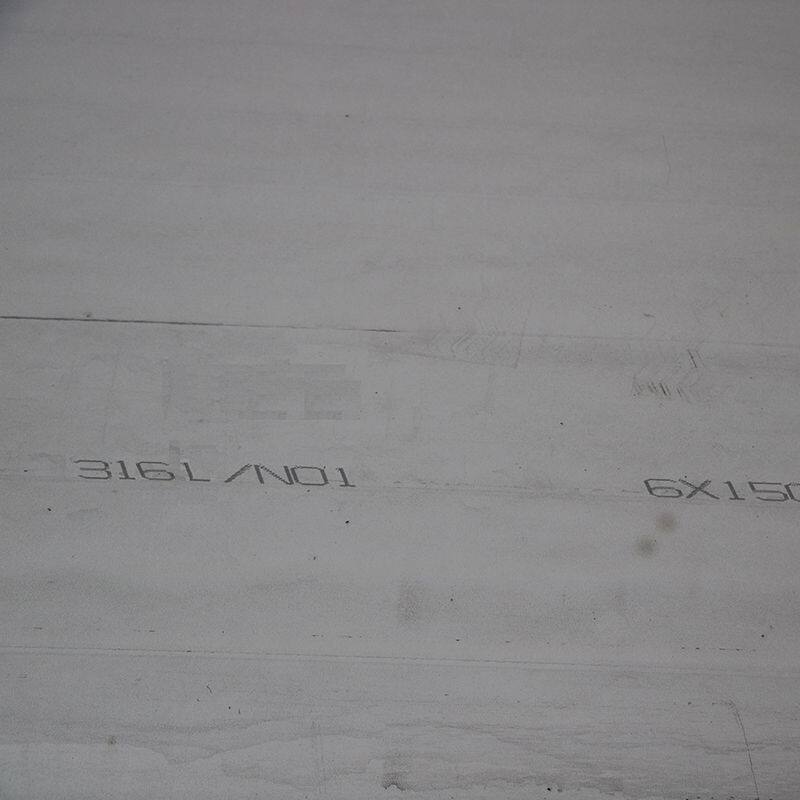

316L stainless steel:

316L is a brand of stainless steel material. AISI 316L is the corresponding American label, and Sus 316L is the corresponding Japanese label. China's standard brand is 022Cr17Ni12Mo2 (new label), the old brand is 00Cr17Ni14Mo2, which means that mainly contains Cr, Ni, Mo, figures indicate approximately the percentage. 316L stainless steel used in the pulp and papermaking equipment heat exchanger, dyeing equipment, film materials for external equipment, pipelines, coastal areas of the building and flushing, senior watch chain, case etc.. Equipment, chemicals, dyes, paper making, oxalic acid, fertilizer, etc.; equipment for photography, food industry, coastal areas, ropes, CD poles, bolts, nuts, etc..

About 316:

-Corrosion resistance

Better corrosion resistance than 304 stainless steel, in the pulp and paper production process, has good corrosion resistance. Also, 316 stainless steel is also resistant to erosion by oceanic and corrosive industrial atmospheres.

-Heat resistance

316 stainless steel (06Cr17Ni12Mo2) has excellent oxidation resistance in discontinuous use at 871 degrees C (1600 degrees F) and for continuous use at 927C degrees (1700 degrees F). At 427 degrees C-857 degrees C (800 degrees F-1575 degrees F) range, it is best not to continue to use 316 stainless steel, but in the temperature range other than the continuous use of 316 stainless steel, the stainless steel has good heat resistance. 316L stainless steel has better carbide precipitation resistance than 316 stainless steel, and can be used in the above range of temperature.

Chemical composition

Grade and Main chemical composition%
	C	Si	Mn	P≤	S≤	Cr	Mo	Ni	Other
SUS201	≤0.15	≤0.75	5.5-7.5	0.06	0.03	16-18	-	≤1.0	N≤0.25
SUS304	≤0.08	≤0.75	≤2.00	0.045	0.03	18-20	-	8-10.5	-
SUS304L	≤0.03	≤0.75	≤2.00	0.045	0.03	18-20	-	8-12	-
SUS304H	0.04-1.0	≤0.75	≤2.00	0.045	0.03	18-20	-	8-10.5	-
SUS309	≤0.25	≤1.00	≤2.00	0.045	-	22-24	-	12-15	-
SUS309S	≤0.08	≤1.00	≤2.00	0.045	0.03	22-24	-	12-15	-
SUS310	≤0.25	≤1.00	≤2.00	0.03	-	24-26	-	19-22	-
SUS310S	≤0.08	≤1.00	≤2.00	0.03	0.03	24-26	-	19-22	-
SUS316	≤0.08	≤1.00	≤2.00	0.045	0.03	16-18	2-3	10-14	-
SUS316L	≤0.03	≤1.00	≤2.00	0.045	0.03	16-18	2-3	10-14	-
SUS321	≤0.08	≤1.00	≤2.00	0.035	0.03	17-19	-	9-12	Ti≥5×C%
SUS409L	≤0.03	≤1.00	≤1.00	≤0.04	0.03	10.5-11.75	-	≤0.06	6xC%-0.75
SUS410	≤0.15	≤1.00	≤1.00	≤0.04	0.03	11.5-13.5	-	-	-
SUS410S	≤0.08	≤1.00	≤1.00	≤0.04	0.03	11.5-13.5	-	≤0.6	-
SUS430	≤0.12	≤0.75	≤1.00	0.04	0.03	16-18	-	≤0.6	-
SUS2205	≤0.03	≤1.0	≤2.00	0.03	0.02	22-23	3.0-3.5	4.5-6.5	N≤0.14-0.2
SUS904L	≤0.02	≤1.0	≤2.00	0.045	0.035	19-23	4.0-5.0	23-28	Cu1.0-2.0

Mechanical property

Grade

tensile strength

Mpa

Yield Strength

Mpa

Elongation

(%)

rate of reduction in area

(%)

Density

(g/cm3)

316

≥520

≥205

≥40

≥60

7.98

316L

≥480

≥177

≥40

≥60

7.98

Applications

316 and 316L stainless steel is widely used in pulp and paper equipment heat exchangers, dyeing equipment, film washing equipment, pipelines, coastal areas outside the building materials, marine, industrial air field.Also used in the field of solenoid valve, mainly used in the shell, clamp, ball, valve body, valve seat, nut, stem and so on. 316L stainless steel also has good resistance to chloride corrosion, so it is often used in marine environment.What’s more,with good welding performance, can use all standard welding method for welding.

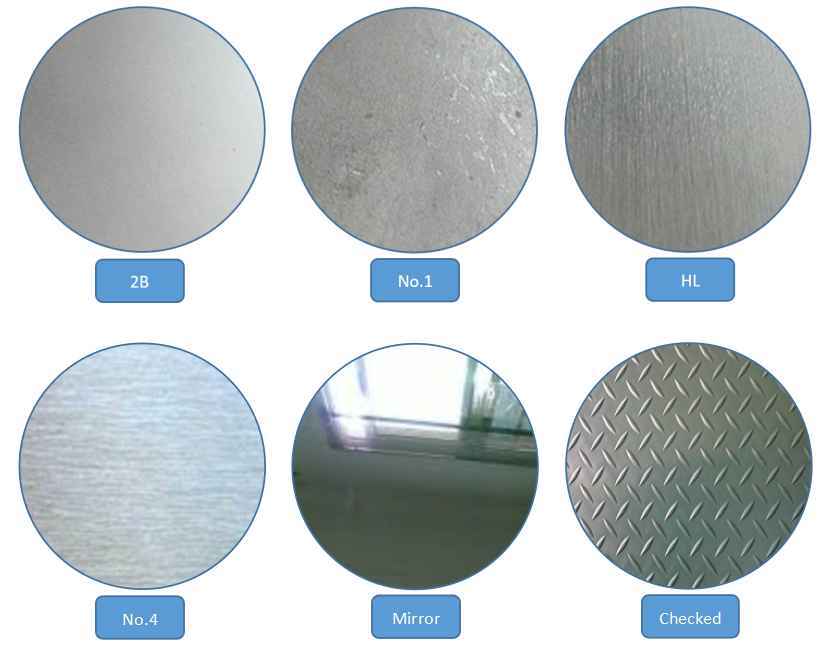

Surface Finish of Stainless Steel
Surface Finish	Definition	Application
No.1	The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.	Chemical tank, pipe
2B	Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.	Medical equipment, Food industry, Construction material, Kitchen utensils.
No.4	Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.	Kitchen utensils, Electric equipment, Building construction.
Hairline	Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.	Building Construction.
BA/8K Mirror	Those processed with bright heat treatment after cold rolling.	Kitchen utensils, Electric equipment, Building construction.
