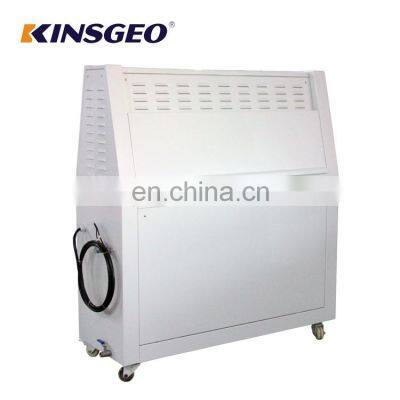

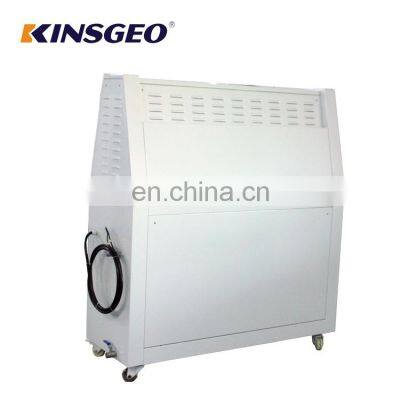

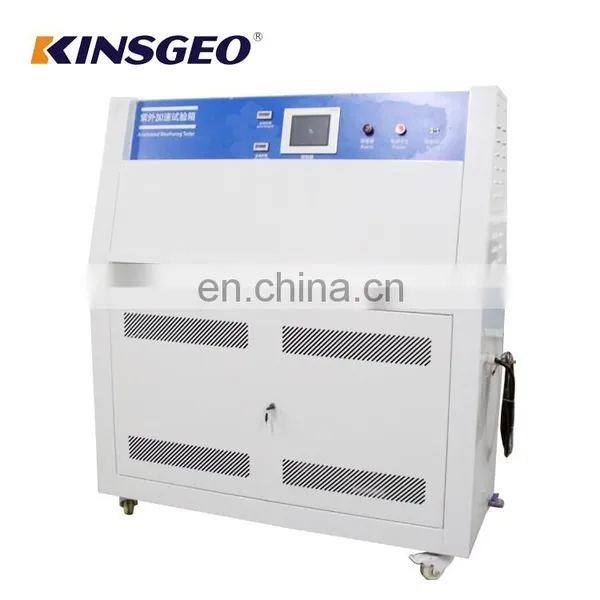

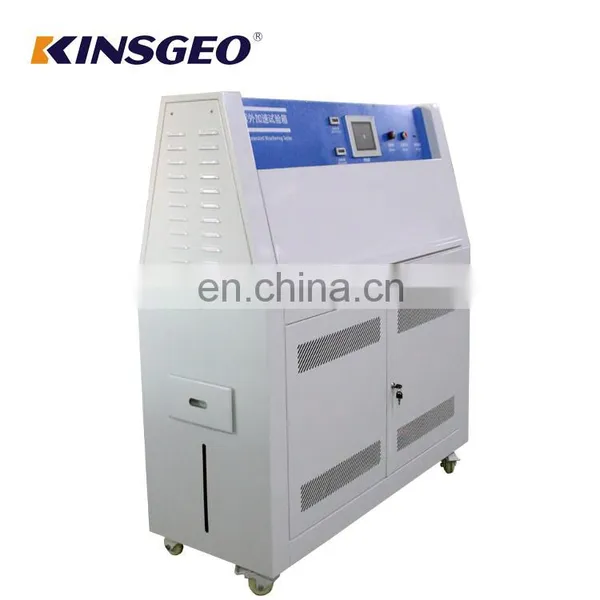

230V/50Hz ASTM D4329 Standard quick uv lamp chamber
Uses

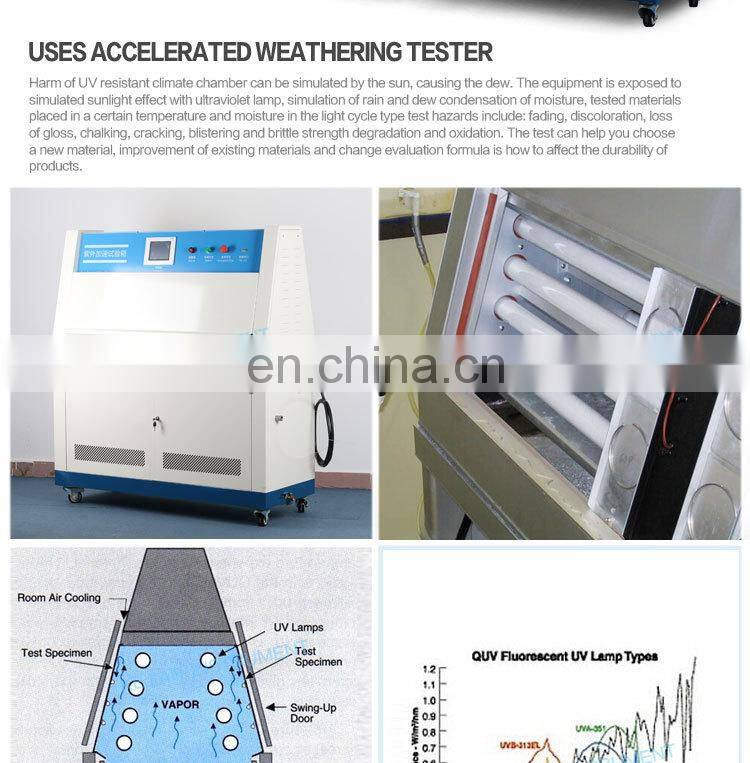

The world's most widely used weathering tester. is used in more labs throughout the world than any other accelerated weathering tester.
standard has become the world standard in the accelerated weathering test in lab.
Reappearing quickly and truly the damage of the material caused by the sunshine,rain and dew.It only needs several days or weeks to reappear the damage by using QUV,which damage appears in the several months or years under outdoor condition.These damage include:bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
According to the realible aging test date,you can predict the ageing resistance of the products,and is helpful to choose optimize the products.

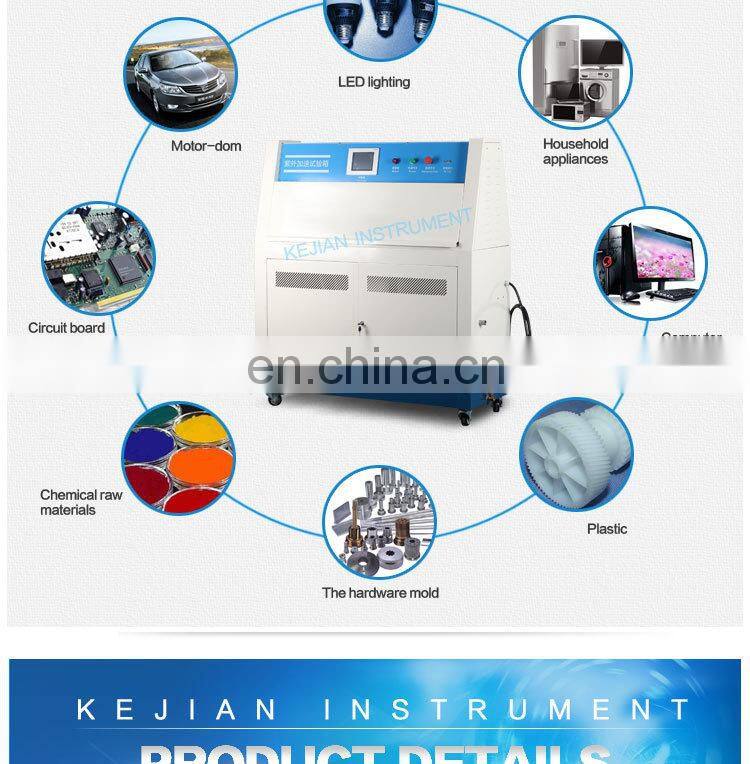

It's used widely in the industry,such as coating,printing ink,paint,resin,plastics,print
Packaging,bond,motor van,makeup,metal,electron,galvanization,medical,and so on.

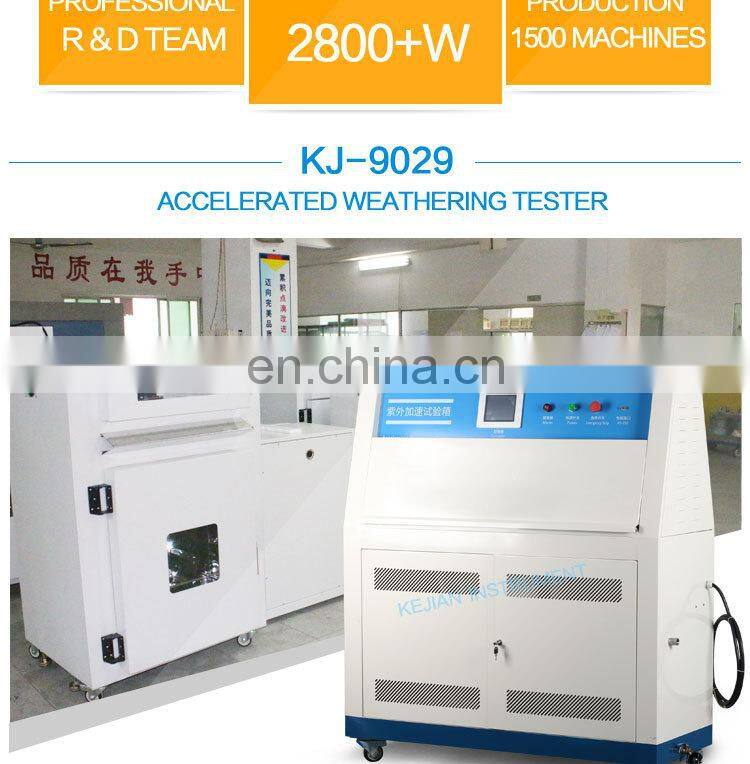

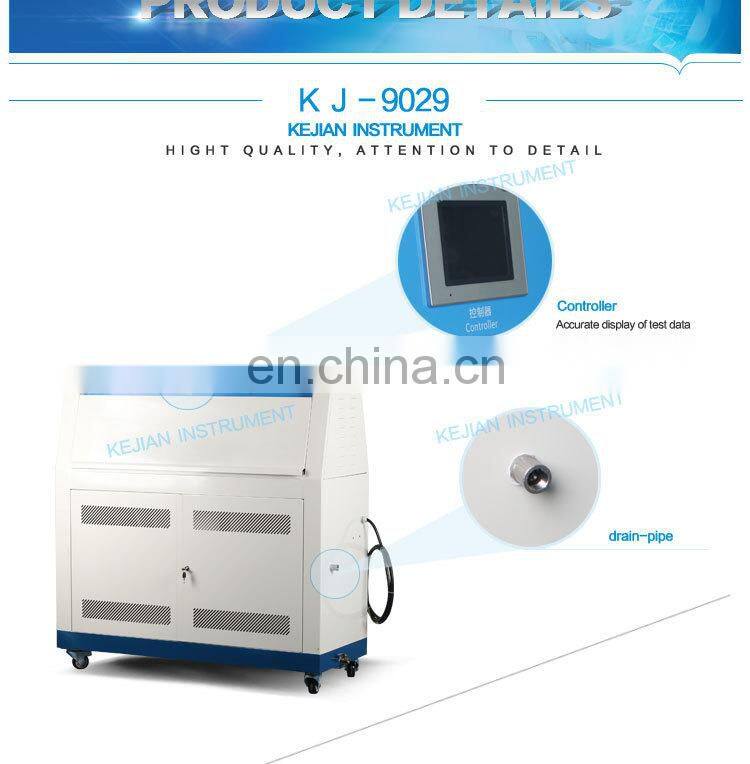

KJ-9029 ASTM D4329 quick uv lamp chamber

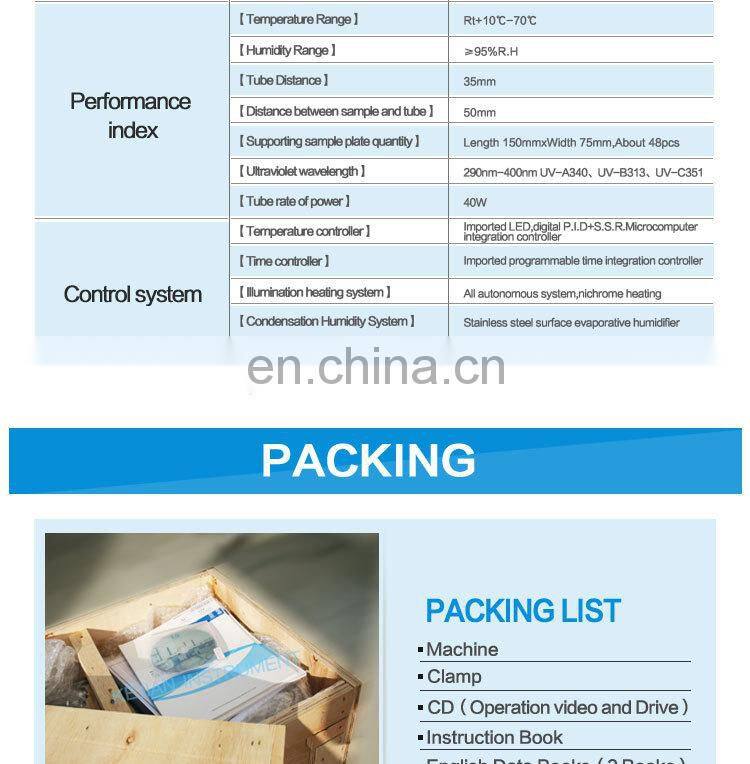

Specifications:
1.Meet ISO,ASTM, DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT(ASTMG153,ASTMG154,,ASTMD4329,ASTMD4977,ASTMD4587,SAEJ2020,ISO4892)
2. condensation device simulates the effect of humidity of outdoor,meeting 100% humidity.
3.Electronic-eye irradiance control system
4.Use blackboard temperature sensor providing precise temperature and recuring test result.
5.Perform humidifying, condensation and water spraying circulating test.
6.Irradiance is calibrated by CR-10 calibrator and automatic calebration procedure.(Paten technology)
7.Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs
KJ-9029 ASTM D4329 quick uv lamp chamber

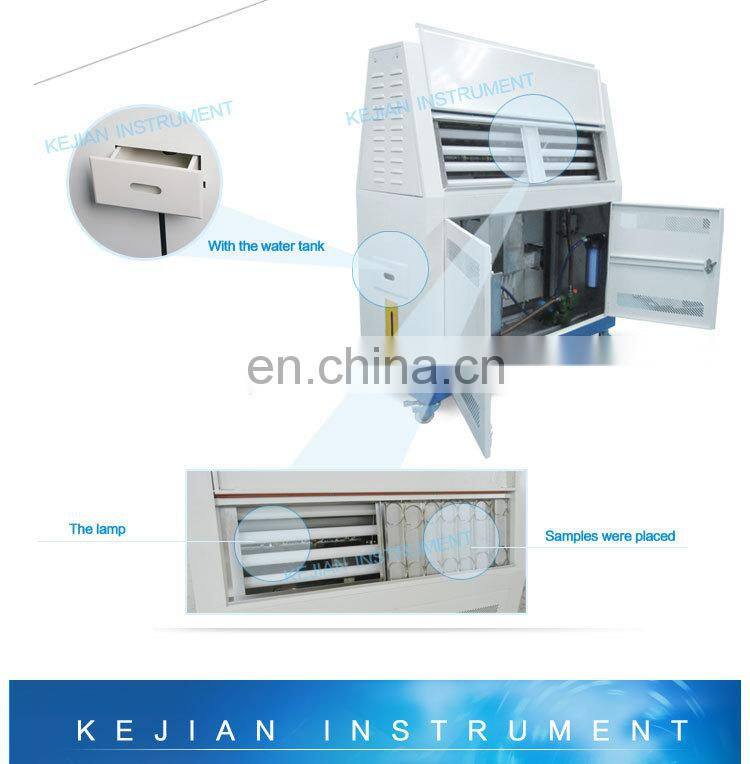

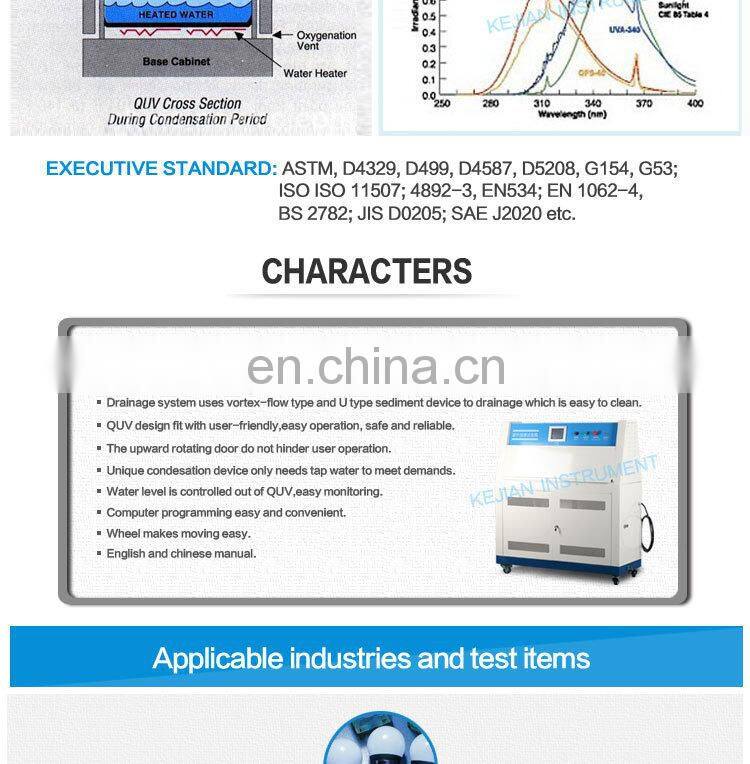

Characters:
1. design fit with user-friendly,easy operation, safe and reliable.
2.Adjustable speciman setting up thickness,easy installing.
3. The unward rotating door do not hinder user operation.
4.Unique condesation device only needs tap water to meet demands.
5.Water heater is under of container,longtime life and convenient maintainance.
6.Water level is controlled out of QUV,easy monitoring.
7.Wheel makes moving easy.
8.Computer programming easy and convenient.
9.Irradation calibrator extends longtime life.
10.English and chinese manual.
11.Divided into several design,ordinary type,control type,spray type.
|

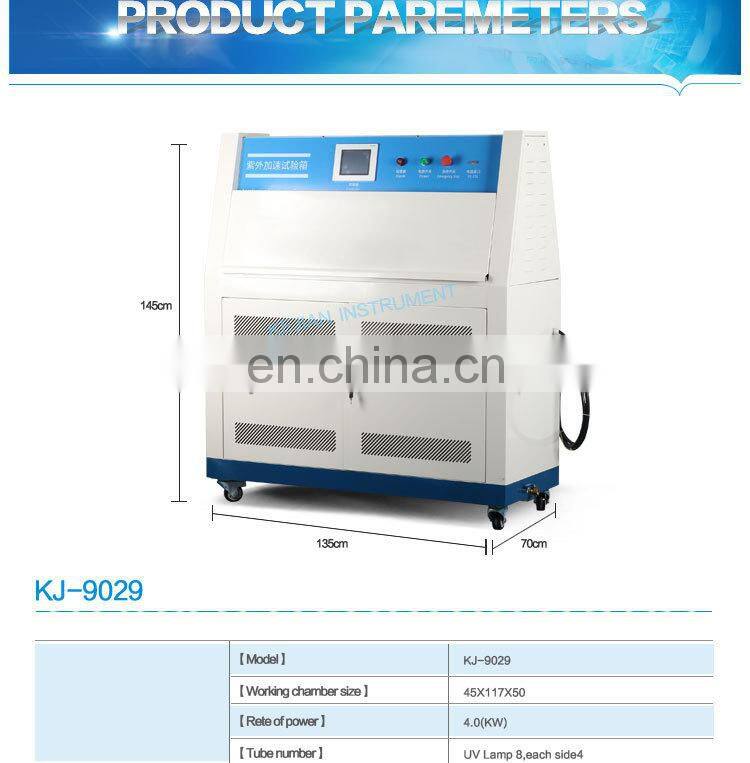

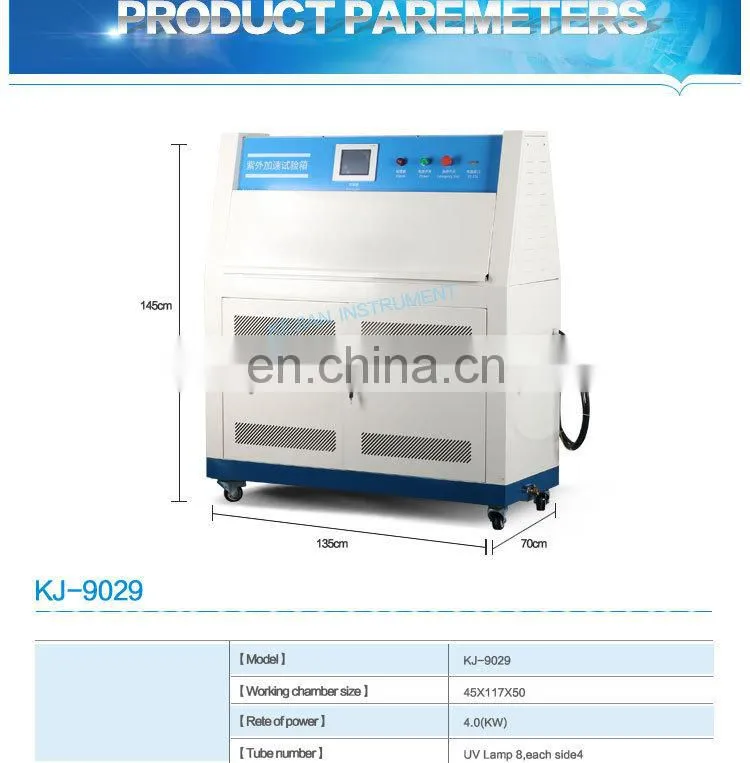

Model
|
KJ-9029 |
|
Bulb number
|
UV Lamp 8, spare lamp :4
|
|
ATLAS,UVA340,UVB313,UVC351)
|
|
Recorder
|
Option
|
|
Radiometer
|
Option
|
|
UV temperature
|
From 50 to 75 degree
|
|
Testing capacity
|
48 piece(75 x 150)m m
|
|
50 piece (75 x 150) m m
|
|
Water and consumption
|
distilled water, 8 liters / day
|
|
Volume
|
(W x D x H) 137 x 53 x 136cm
|
|
Weight
|
136kg
|
|
Power
|
1 ψ , 120V/60Hz,16A or 230V/50Hz, 9A,1800W(max)
|
